Inspection Procedure

WARNING: This page is about a different variant/trim than selected.

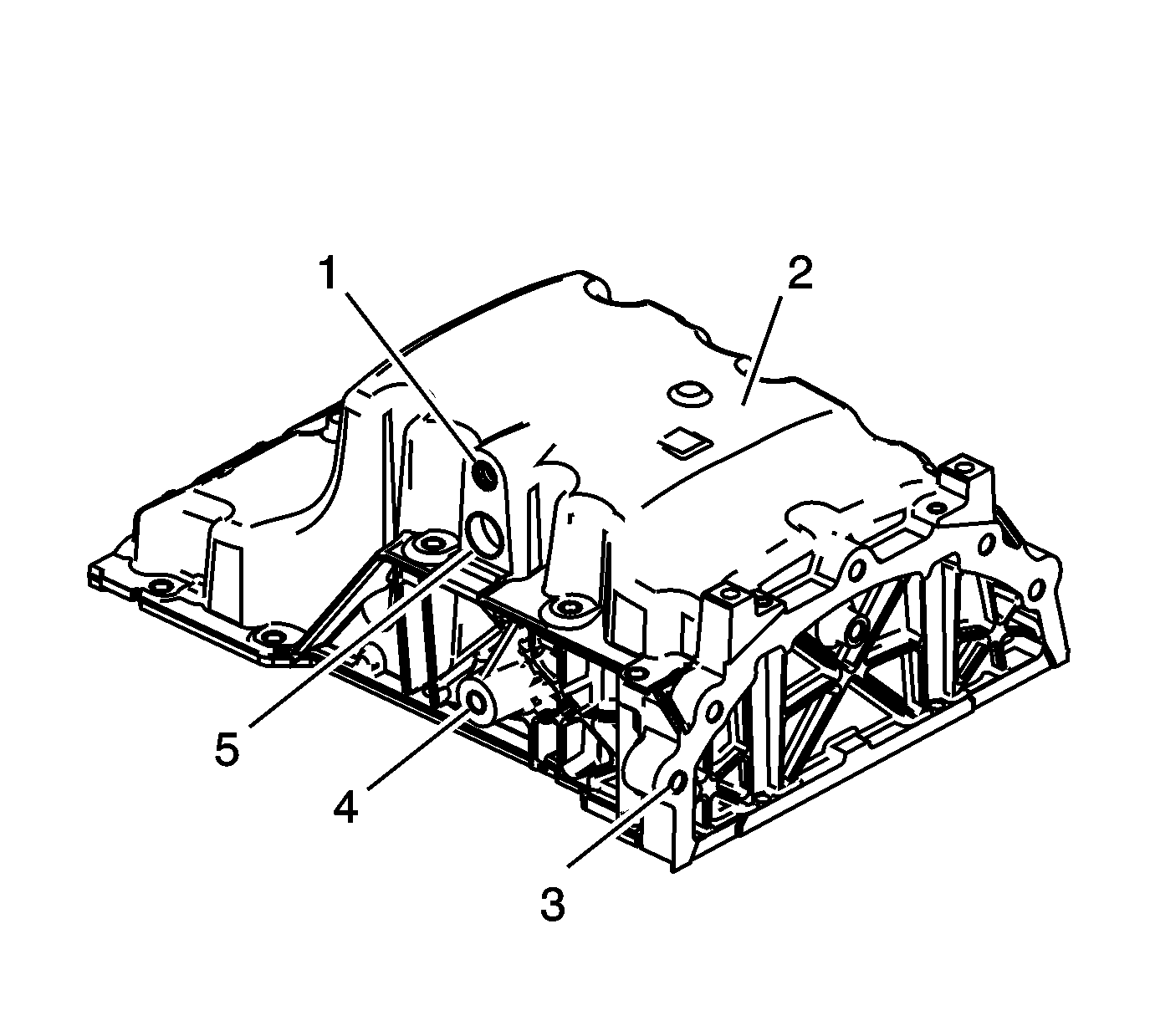

    Fig 1: Exterior Oil Pan Inspection Areas (RWD)
    GM2736514Courtesy of GENERAL MOTORS COMPANY
  1. Inspect the exterior of the oil pan for the following conditions:
    • Dents or damage to the exterior (2)
    • Damage to the drain plug or drain plug hole (1)
    • Damage to the brace mounting bosses (4)
    • Damage to the mounting bosses (3)
    • Damage to the engine oil level switch hole (5)

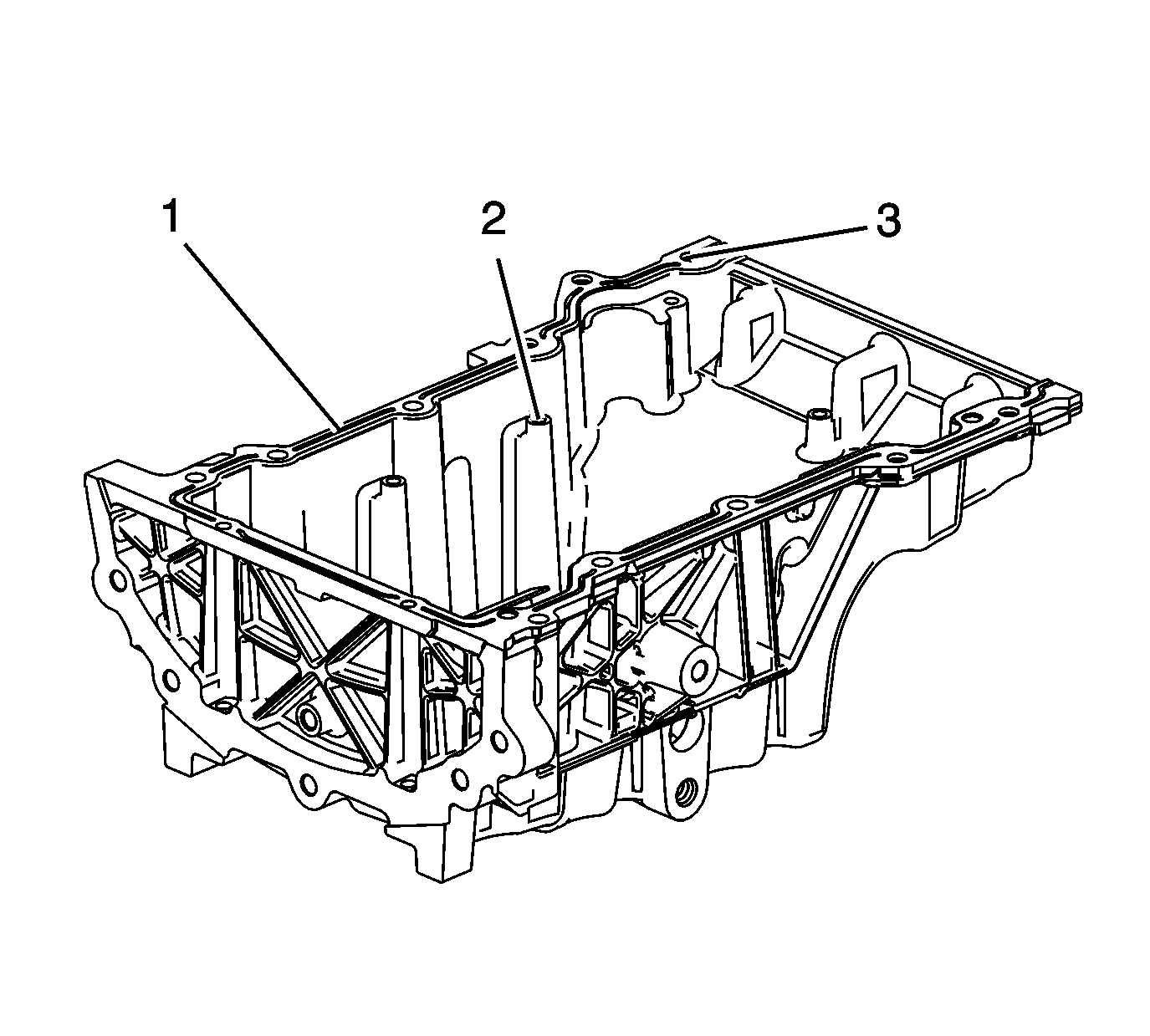

    2. Fig 2: Interior Oil Pan Inspection Areas (RWD)
    GM2736513Courtesy of GENERAL MOTORS COMPANY
  2. Inspect the interior of the oil pan for the following conditions:
    • Gouges or damage to the oil pan sealing surfaces (1)
    • Damage to the oil pan scraper mounting holes (2)
    • Damage to the bolt holes (3)
  3. Repair or replace the oil pan and/or oil pan components as necessary.
