Intake Manifold Removal (LFX)

WARNING: This page is about a different variant/trim than selected.

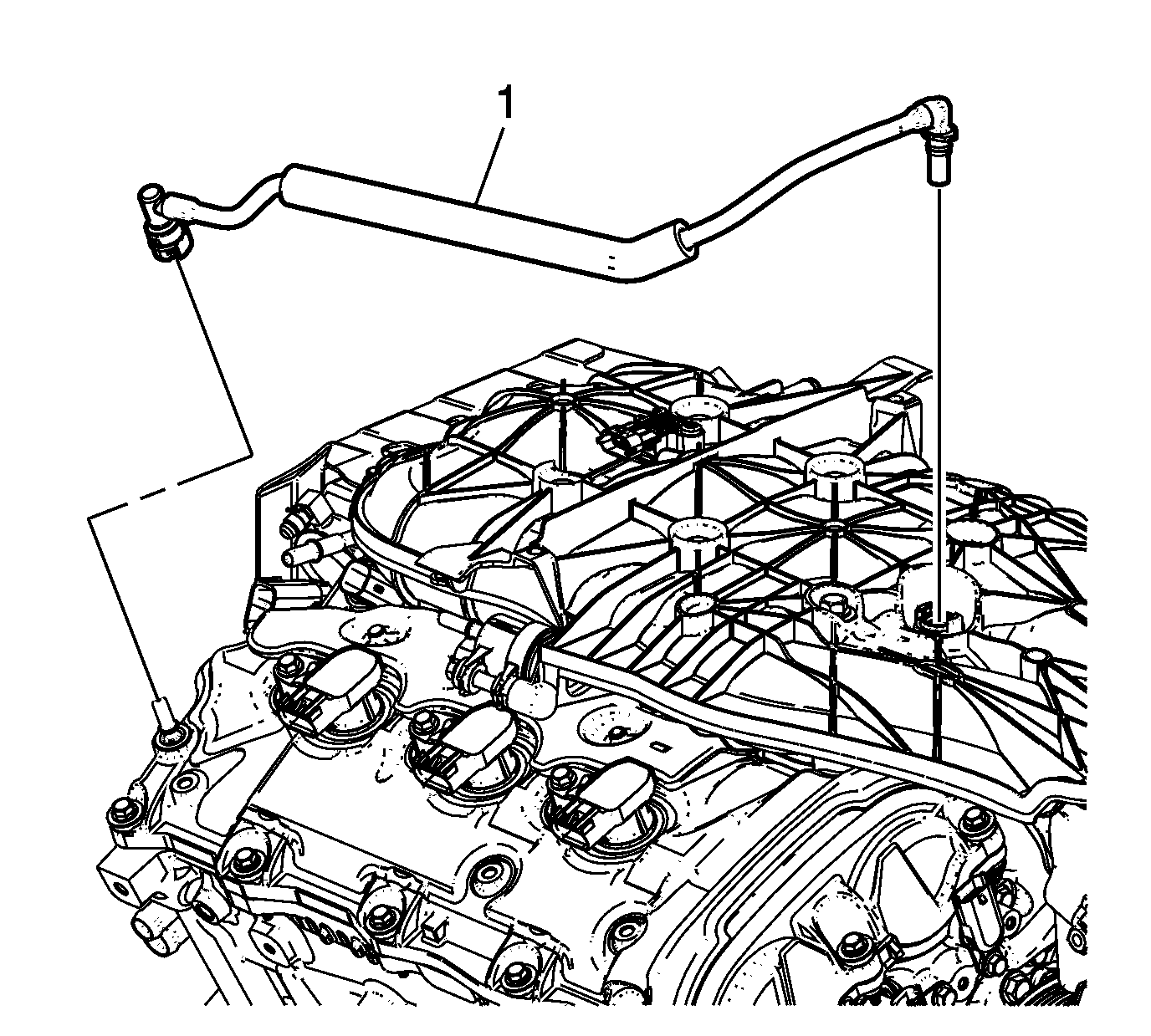

    Fig 1: Positive Crankcase Ventilation (PCV) Tube Assembly
    GM2219469Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect and remove the positive crankcase ventilation (PCV) tube (1) from the intake manifold and right camshaft cover.

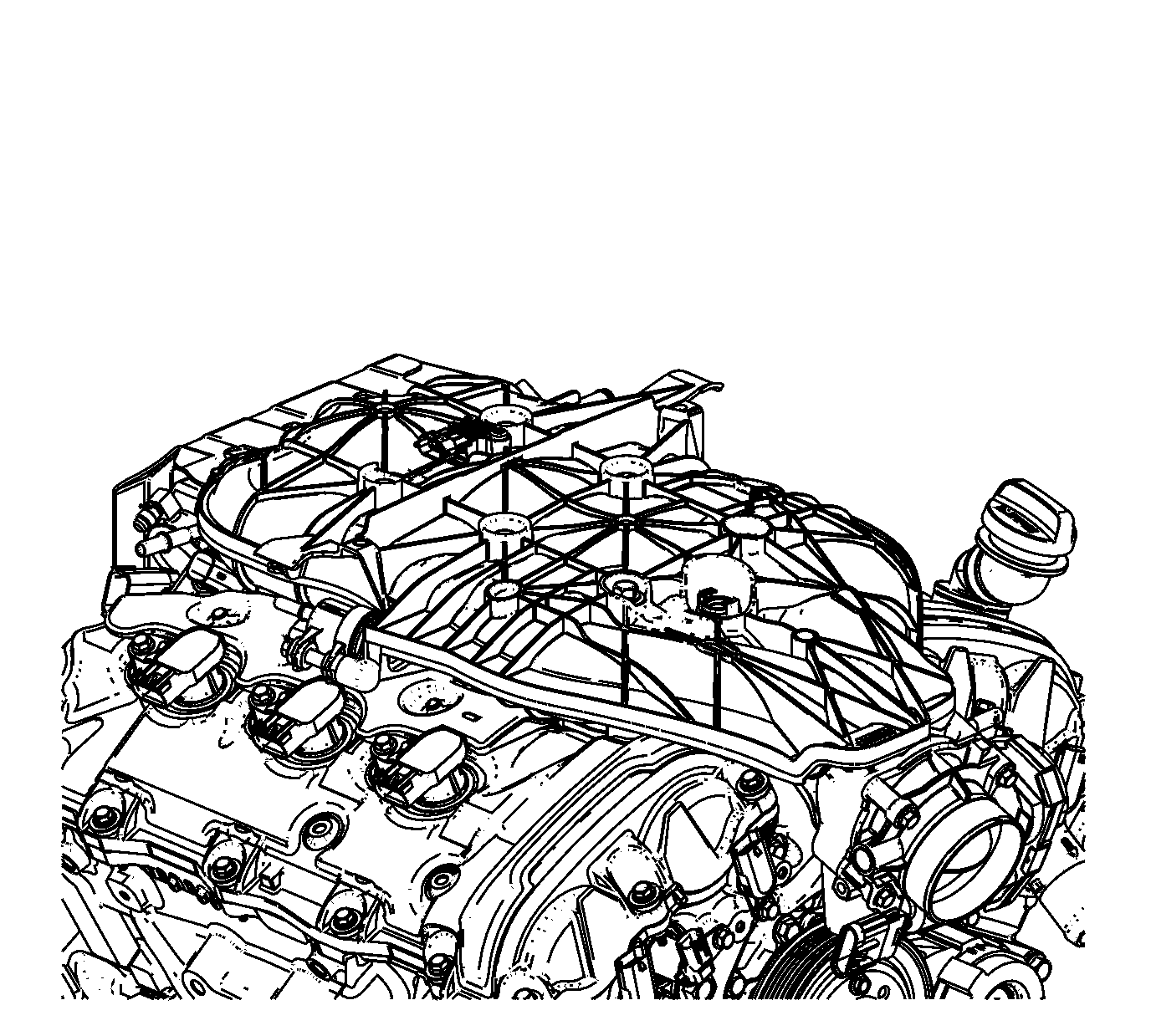

    2. Fig 2: View Of Upper Intake Manifold And EVAP Solenoid
    GM2219470Courtesy of GENERAL MOTORS COMPANY
  2. Remove the evaporative (EVAP) hose from the intake manifold and EVAP solenoid.

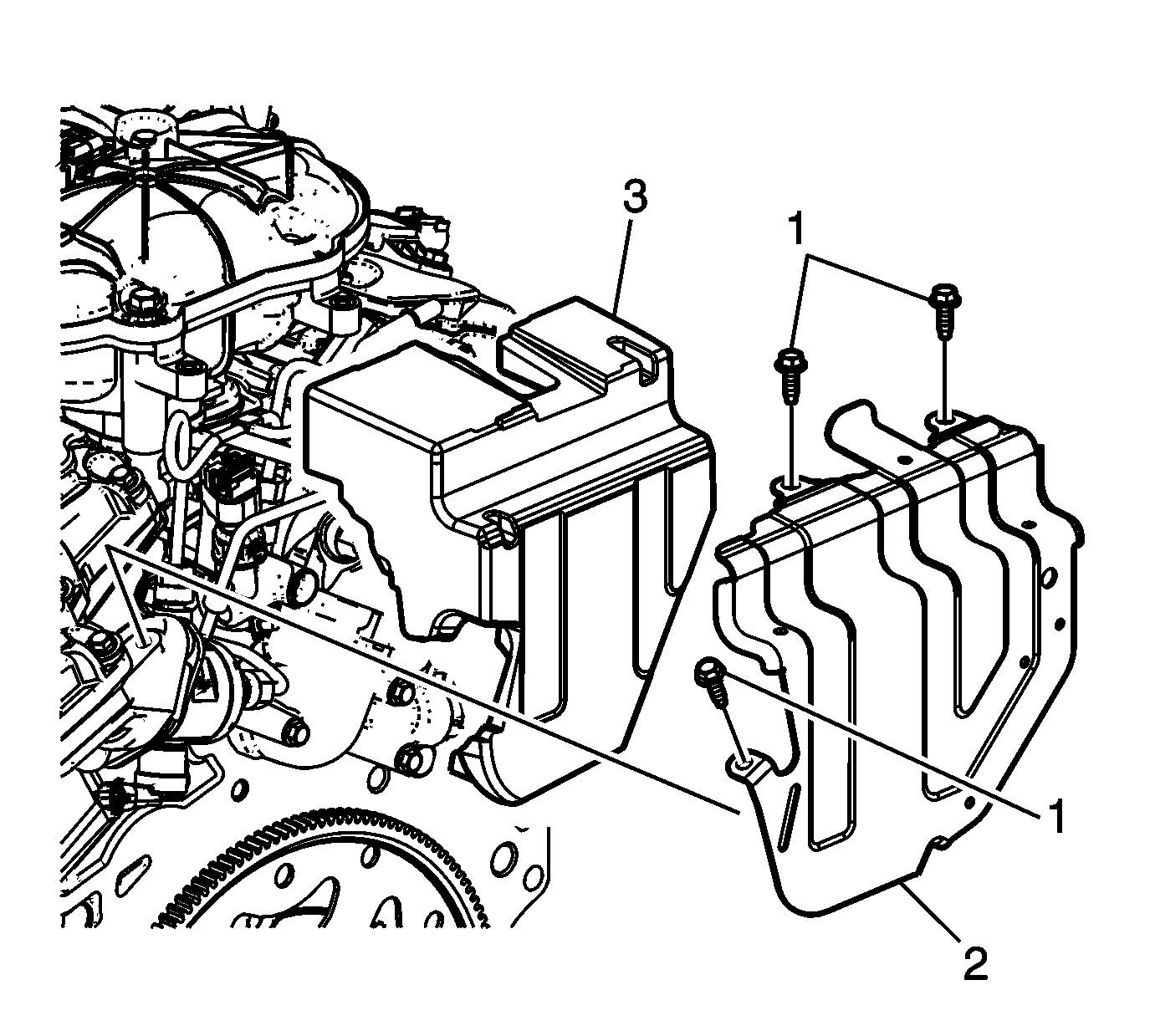

    3. Fig 3: Identifying Fuel Pump Cover And Bolts
    GM2219472Courtesy of GENERAL MOTORS COMPANY
  3. Remove the fuel injection fuel rail shield bolt (1).
  4. Remove the fuel injection fuel rail shield (2).
  5. Remove the engine rear noise shield (3).

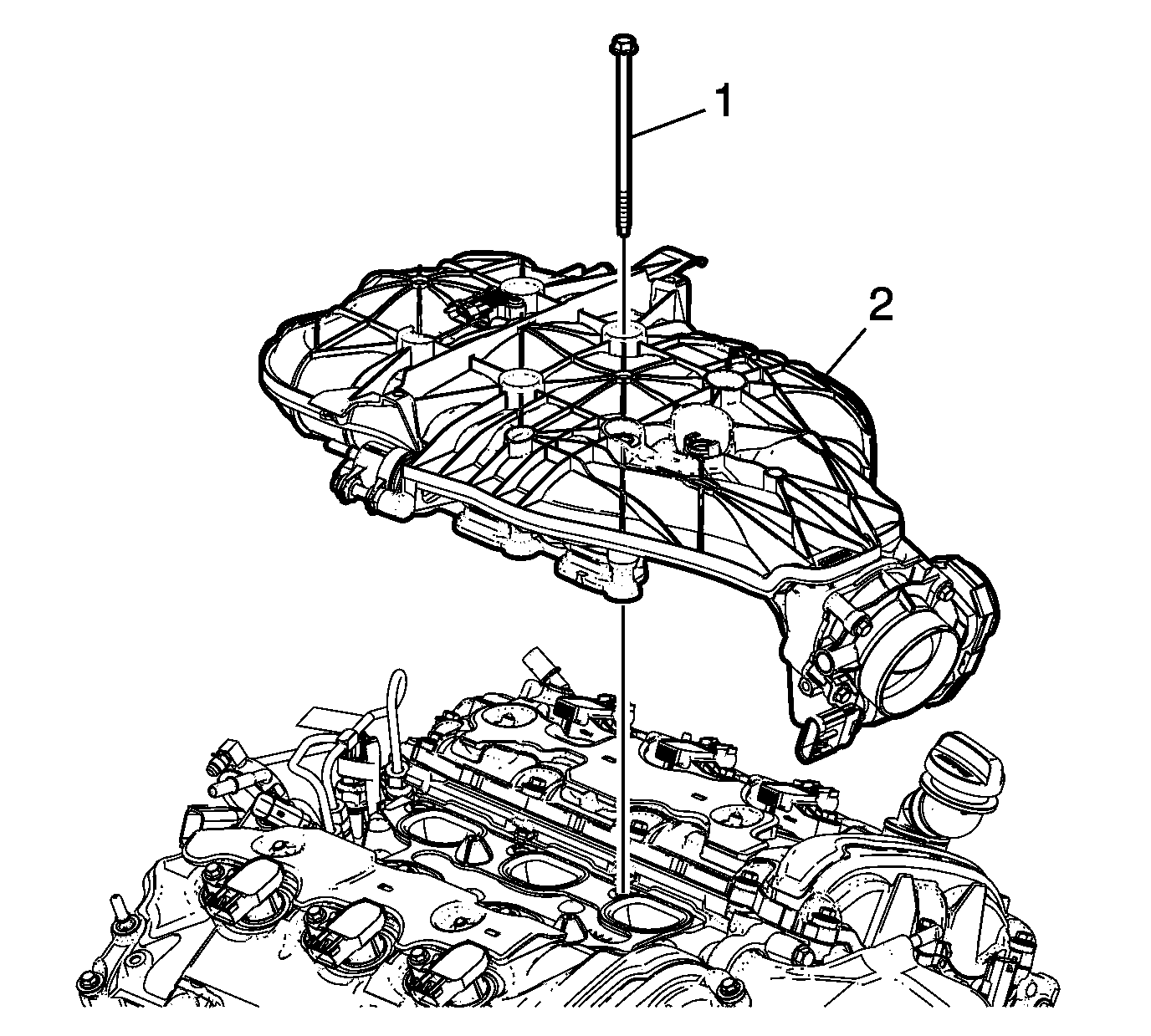

    6. Fig 4: Identifying Intake Manifold Bolts
    GM2219473Courtesy of GENERAL MOTORS COMPANY
  6. Remove the intake manifold bolts (1).
  7. Remove the intake manifold assembly (2).
    8. Fig 5: Intake Manifold Gasket
    GM2202023Courtesy of GENERAL MOTORS COMPANY
  8. Remove and discard the intake manifold gasket (1).
