Intake Manifold Disassemble

WARNING: This page is about a different variant/trim than selected.

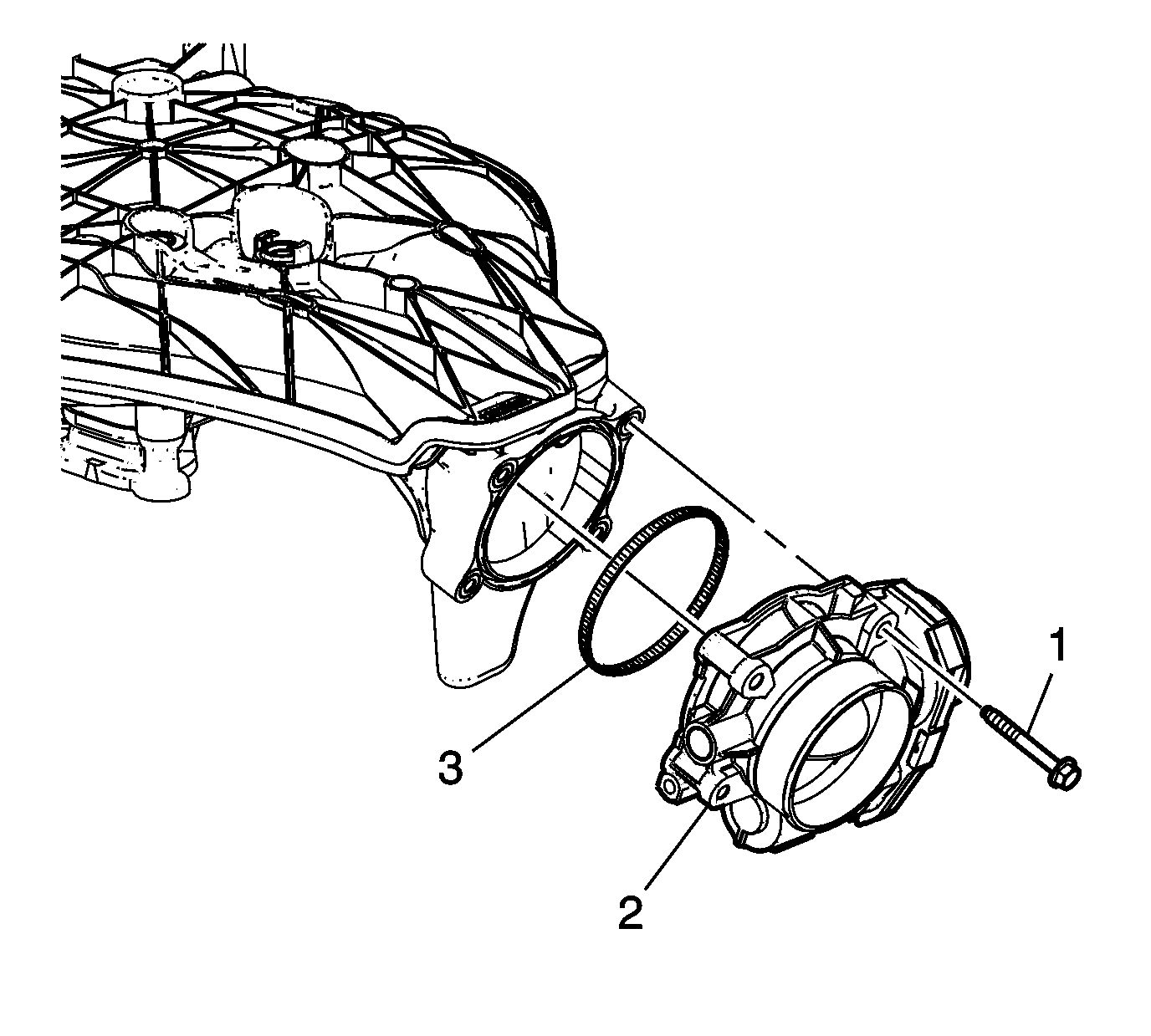

    Fig 1: Identifying Throttle Body Components
    GM2219474Courtesy of GENERAL MOTORS COMPANY
  1. Remove the throttle body bolts (1).
  2. Remove the throttle body (2).
  3. Remove and discard the throttle body seal (3).

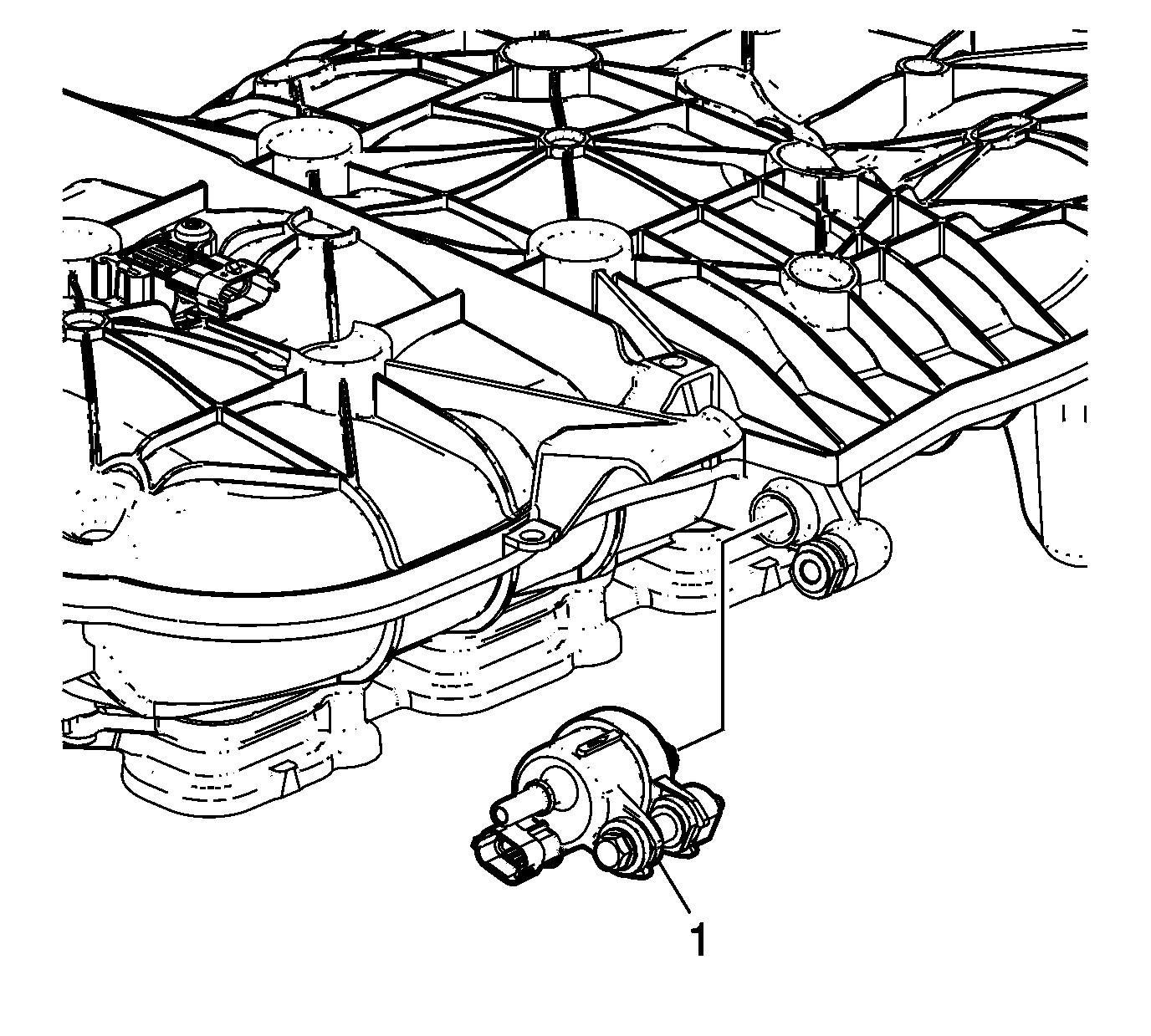

    4. Fig 2: Identifying EVAP Solenoid
    GM2219476Courtesy of GENERAL MOTORS COMPANY
  4. Loosen the evaporative (EVAP) solenoid bolt.
  5. Remove the EVAP solenoid (1).

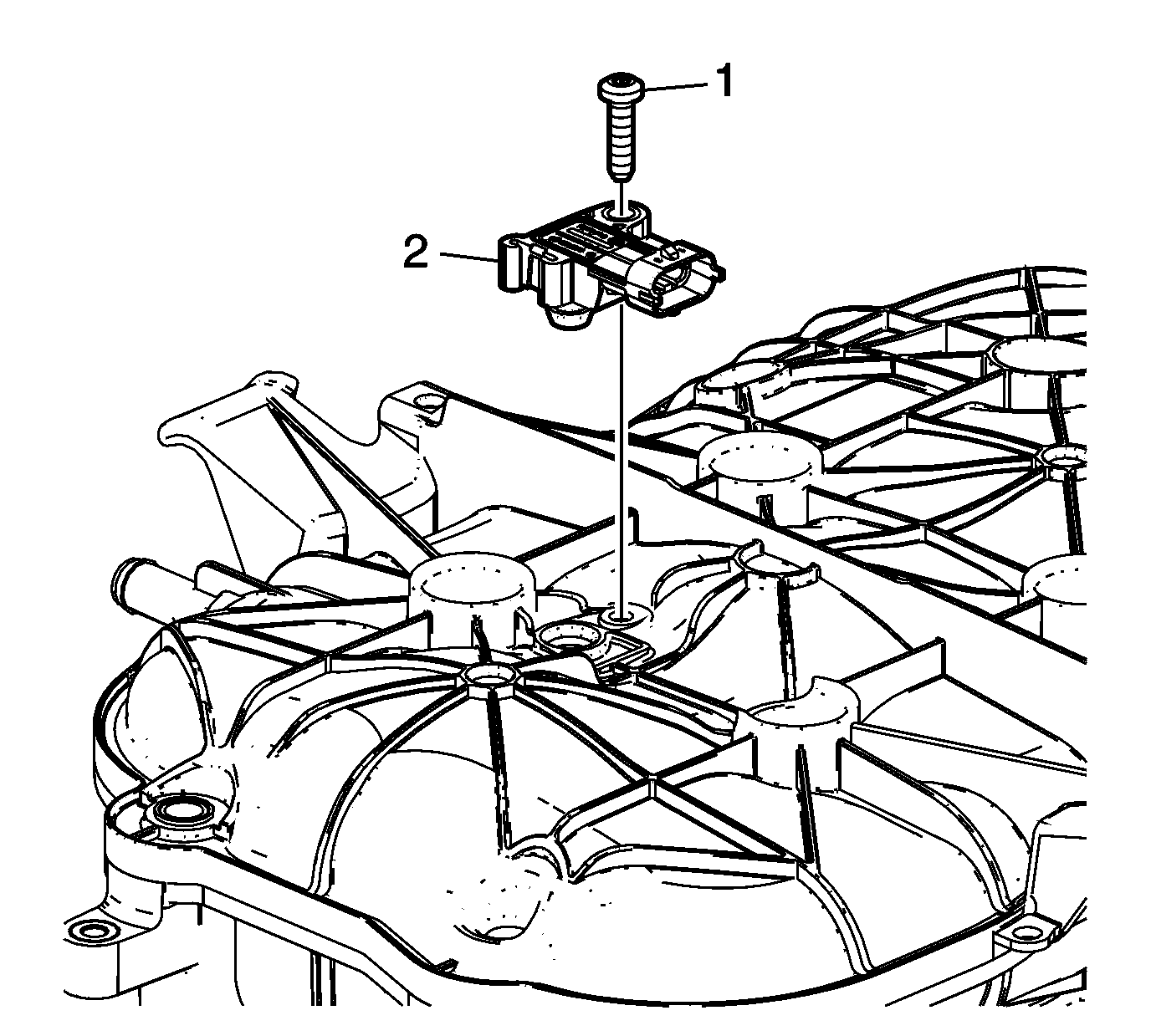

    6. Fig 3: MAP Sensor & Retaining Bolt
    GM2219477Courtesy of GENERAL MOTORS COMPANY
  6. Remove the manifold absolute pressure (MAP) sensor bolt (1).
  7. Remove the MAP sensor (2).

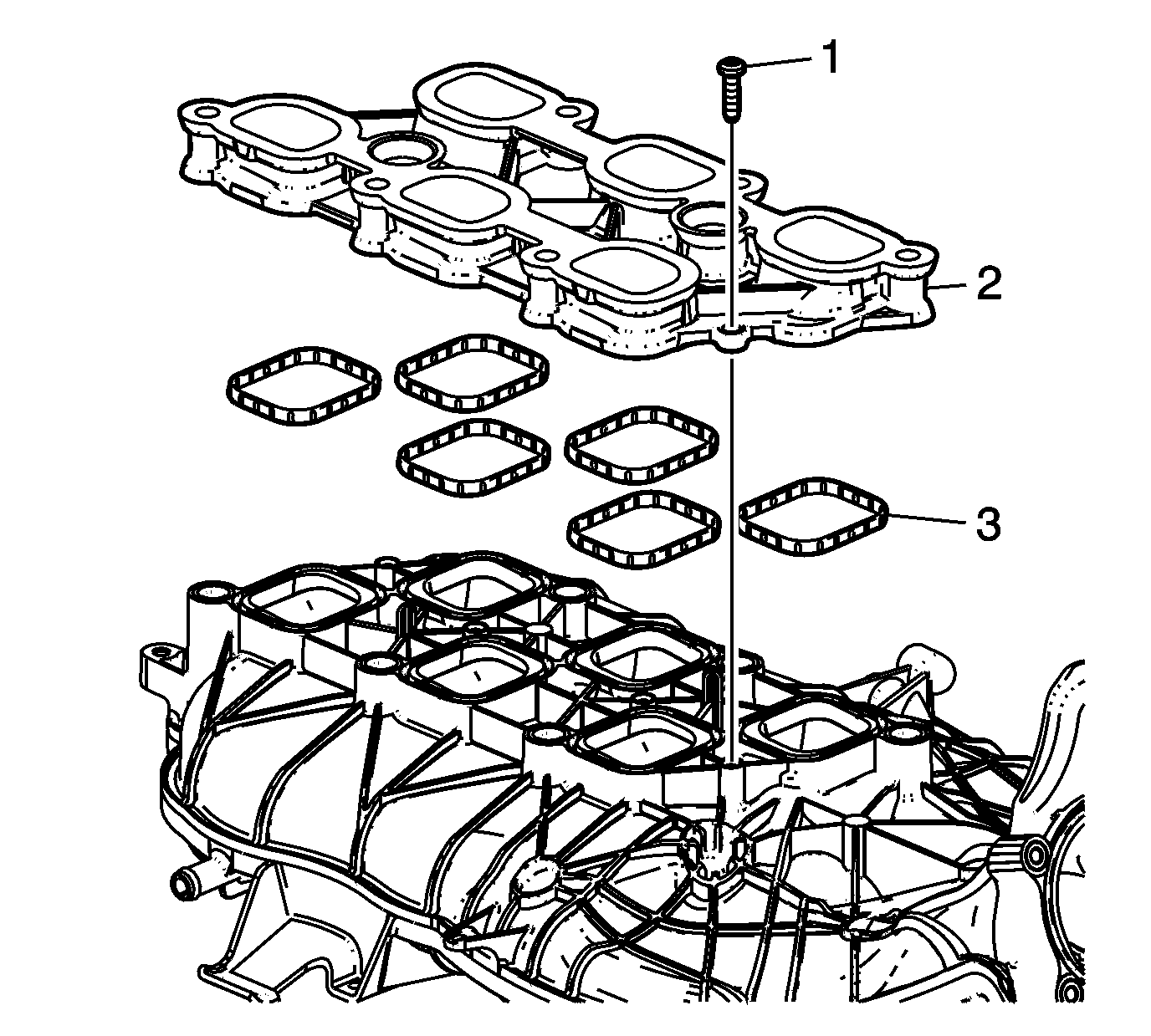

    8. Fig 4: Lower Intake Manifold, Bolts & Gaskets
    GM2612728Courtesy of GENERAL MOTORS COMPANY
  8. Remove the lower intake manifold bolts (1) and lower intake manifold (2).
  9. Remove and discard the lower intake manifold gaskets (3).

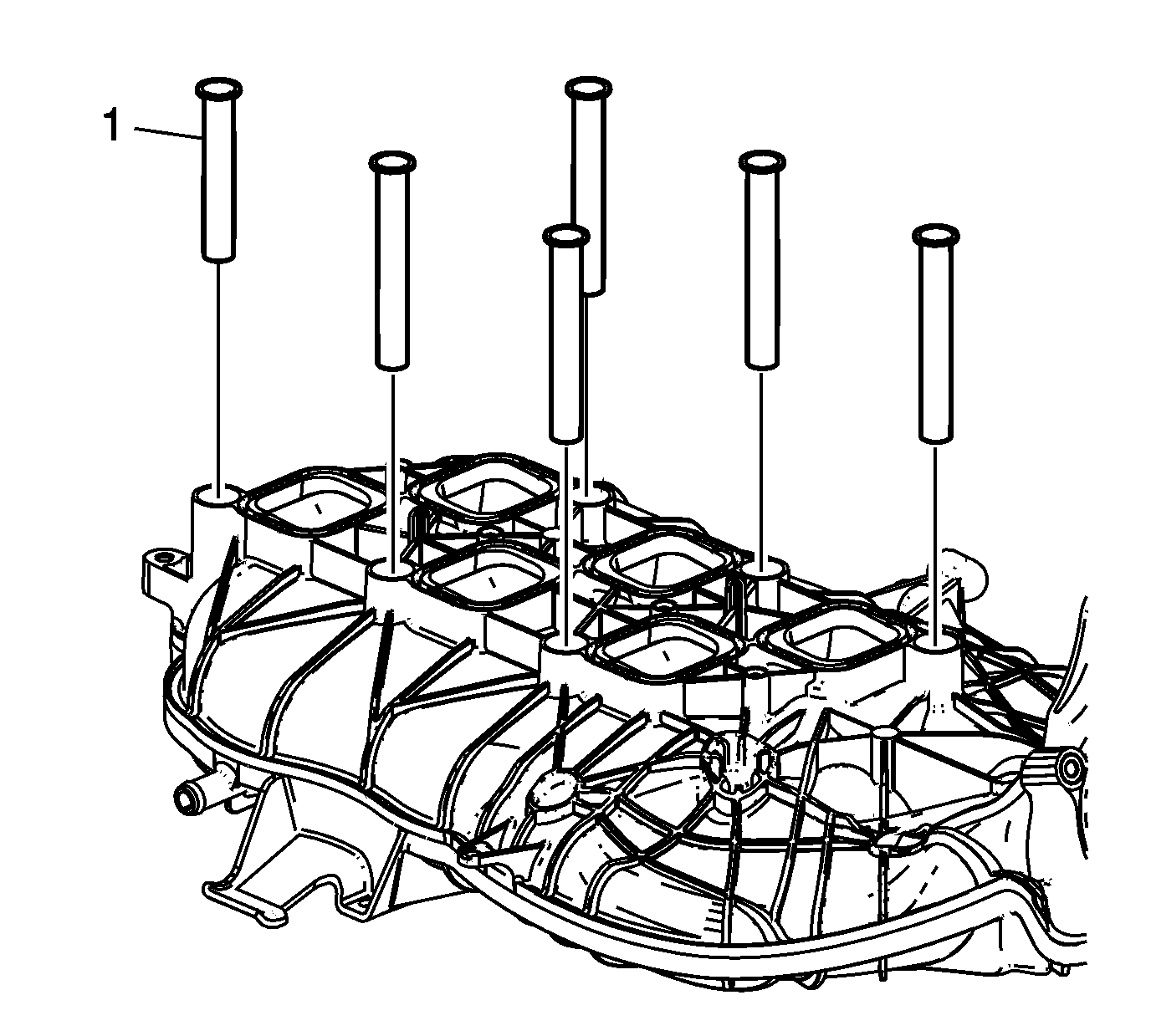

    10. Fig 5: Plastic Compression Limiters
    GM2612730Courtesy of GENERAL MOTORS COMPANY
  10. Remove and discard the plastic compression limiters (1).
