Engine Coolant Thermostat Housing Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Heater Inlet And Outlet Pipe Assembly
    GM3670384Courtesy of GENERAL MOTORS COMPANY
  1. Remove the heater inlet and outlet pipe assembly bolt (1).
  2. Remove the heater inlet and outlet pipe assembly bolts (2).
  3. Remove the heater inlet and outlet pipe assembly (3).
    4. Fig 2: Heater Inlet And Outlet Pipe Assembly O-Ring
    GM3670387Courtesy of GENERAL MOTORS COMPANY
  4. Remove and discard the heater inlet and outlet pipe assembly O-ring (2) and gasket (1).
    5. Fig 3: View Of Thermostat Housing With Heater Pipes, Heater Hoses, Gasket & Bolts
    GM902889Courtesy of GENERAL MOTORS COMPANY
  5. Remove the thermostat housing assembly bolts.
  6. Remove the thermostat housing assembly.

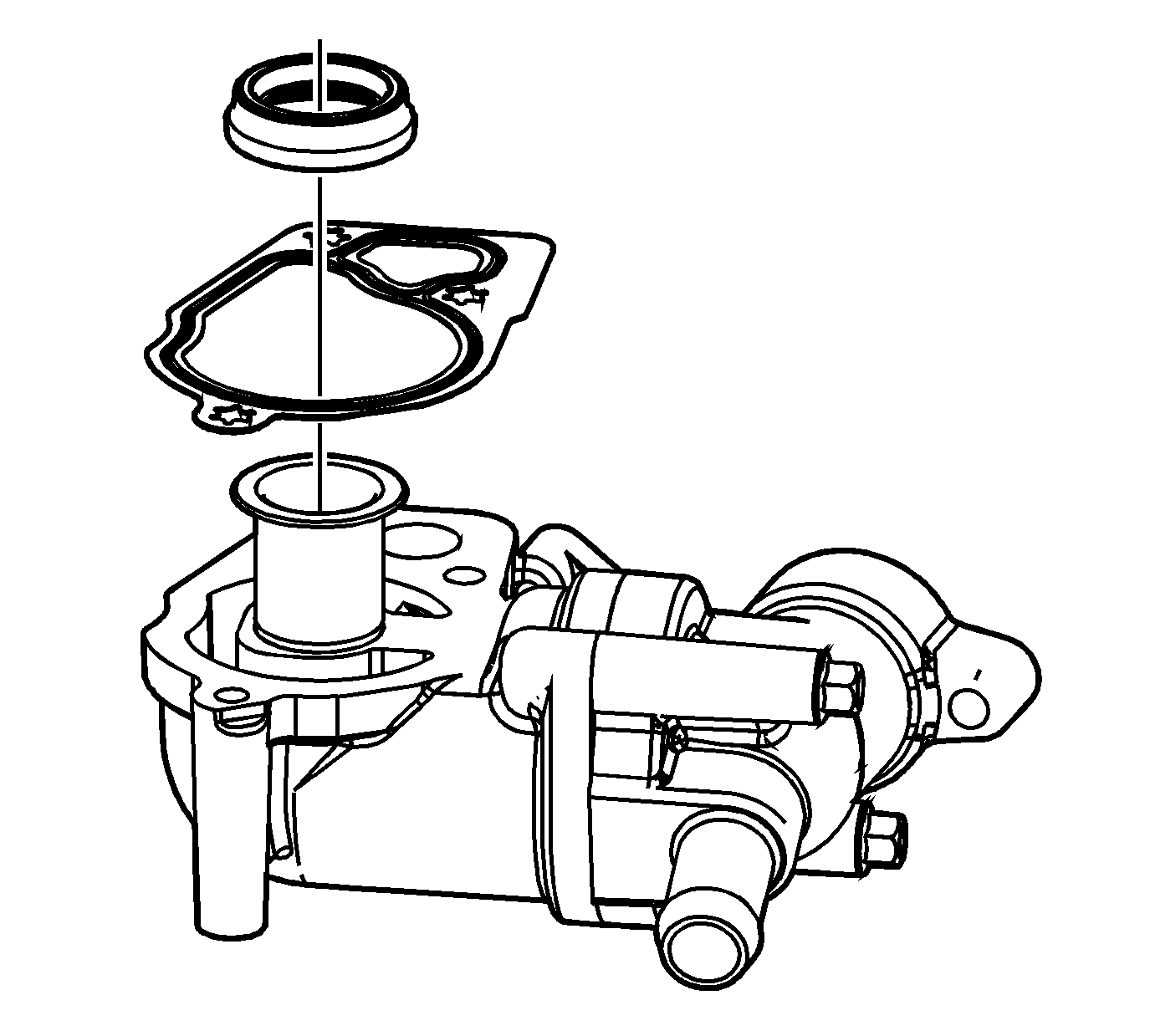

    7. Fig 4: View Of Thermostat Housing Assembly O-Ring & Gasket
    GM1665645Courtesy of GENERAL MOTORS COMPANY
  7. Remove and discard the thermostat housing assembly O-ring and gasket.
