Engine Coolant Thermostat Housing Installation

WARNING: This page is about a different variant/trim than selected.

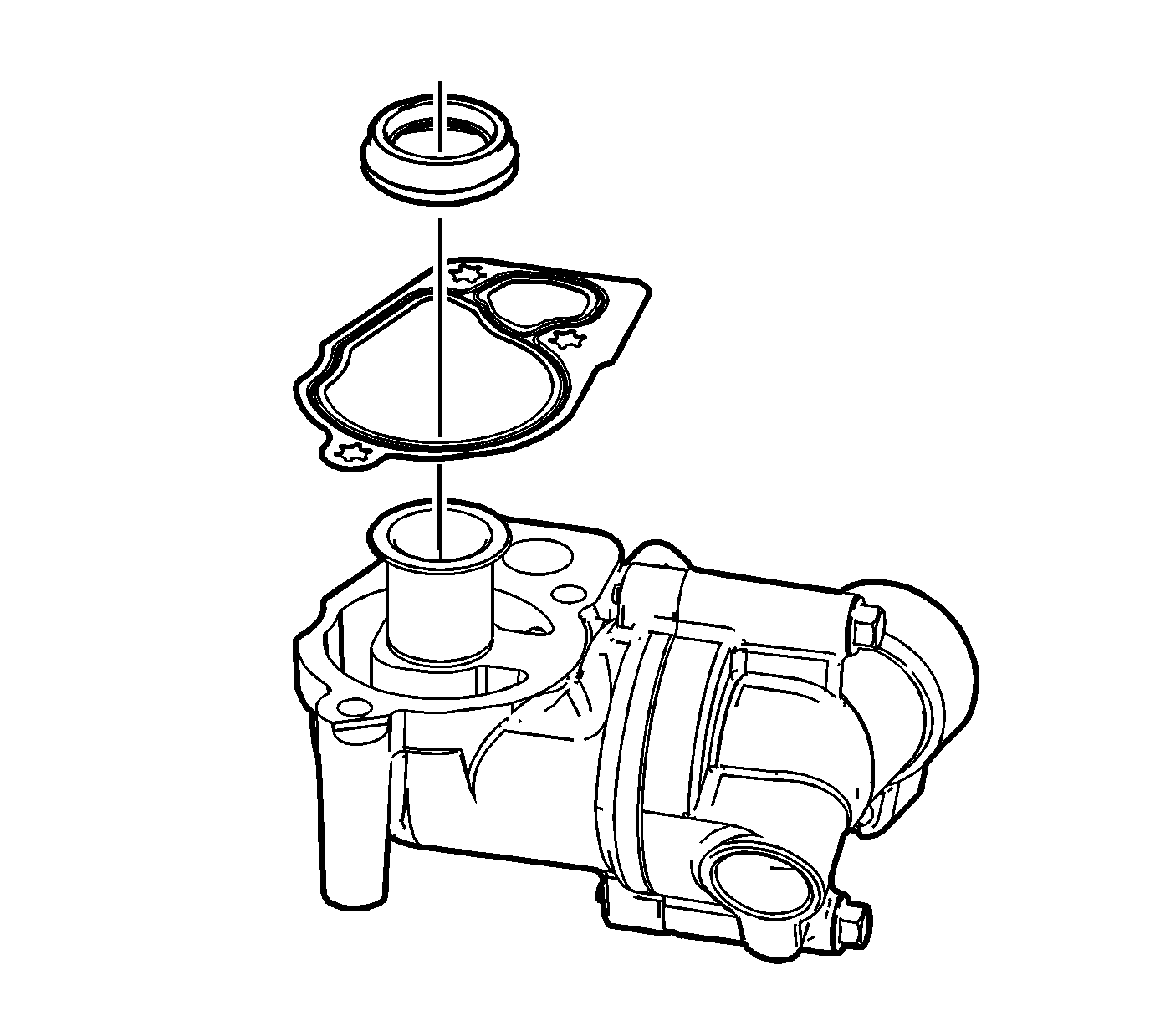

    Fig 1: View Of Thermostat Housing Assembly O-Ring & Gasket
    GM1871058Courtesy of GENERAL MOTORS COMPANY
  1. Install the NEW thermostat housing assembly O-ring and gasket

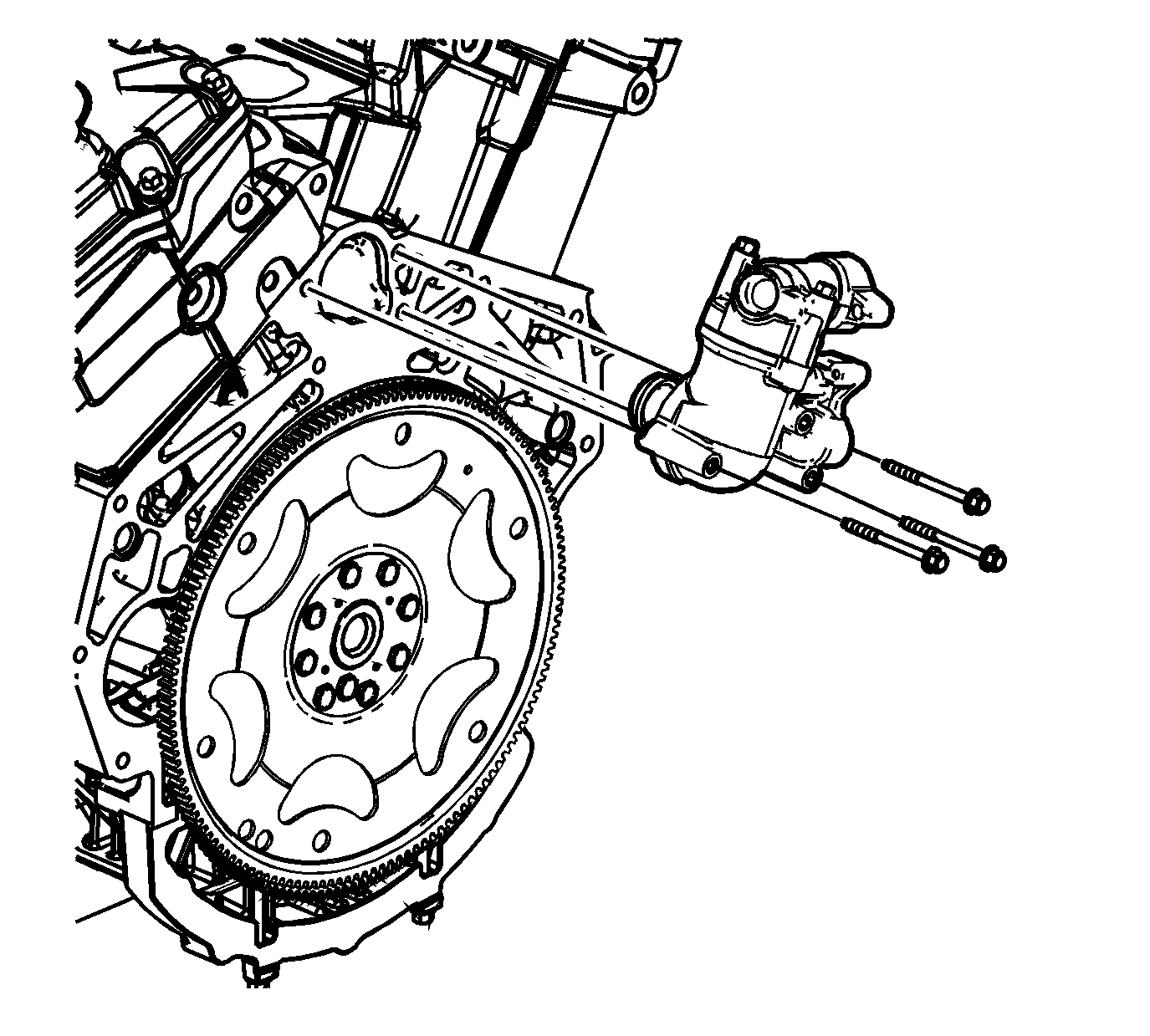

    2. Fig 2: View Of Thermostat Housing Assembly Bolts
    GM1871057Courtesy of GENERAL MOTORS COMPANY
  2. Install the thermostat housing assembly.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the thermostat housing assembly bolts and tighten to 10 N.m (89 lb in).

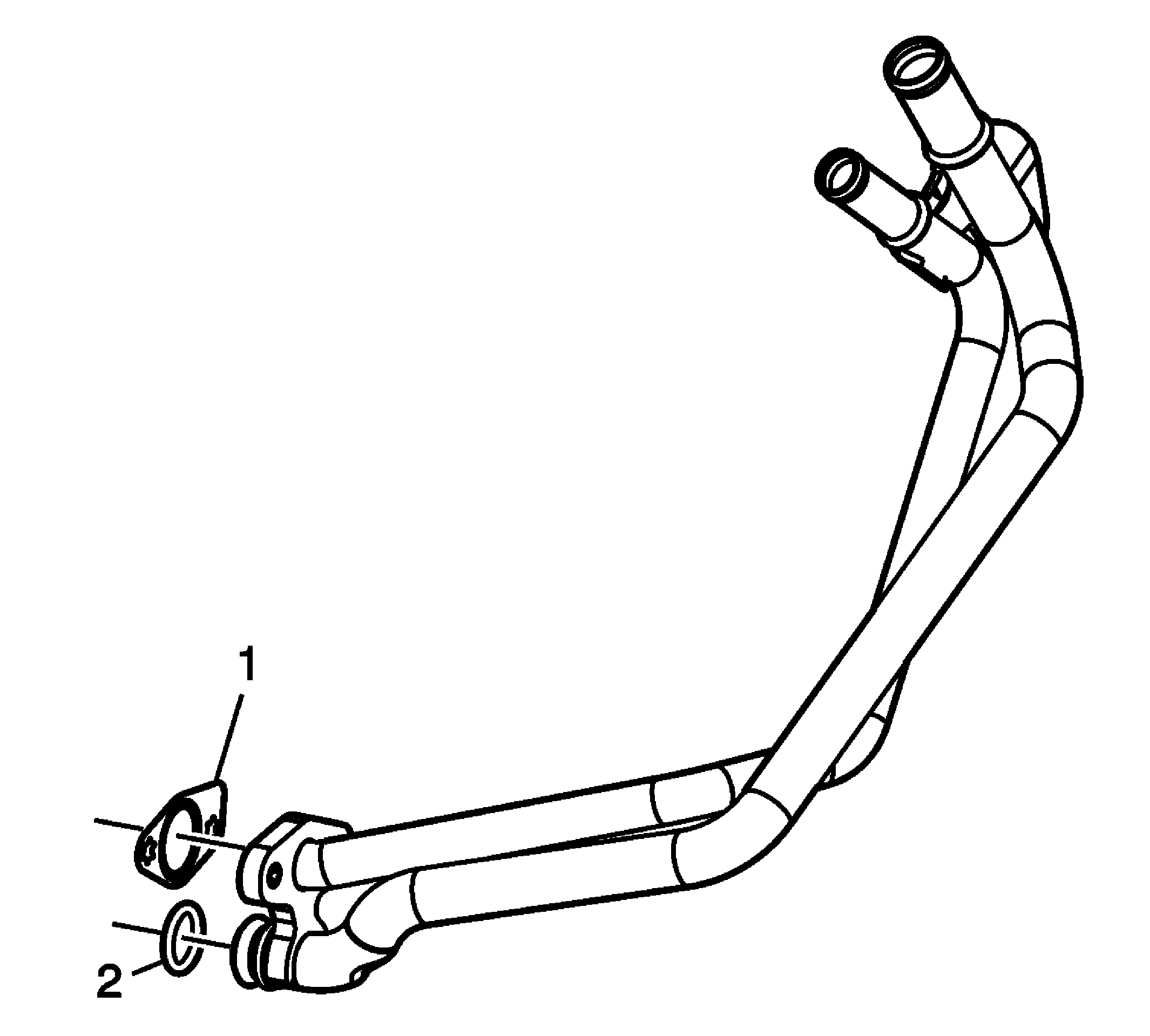

    4. Fig 3: Heater Inlet/Outlet Pipe Assembly O-Ring
    GM3670387Courtesy of GENERAL MOTORS COMPANY
  4. Install the NEW heater inlet/outlet pipe assembly O-ring (2) and gasket (1)..

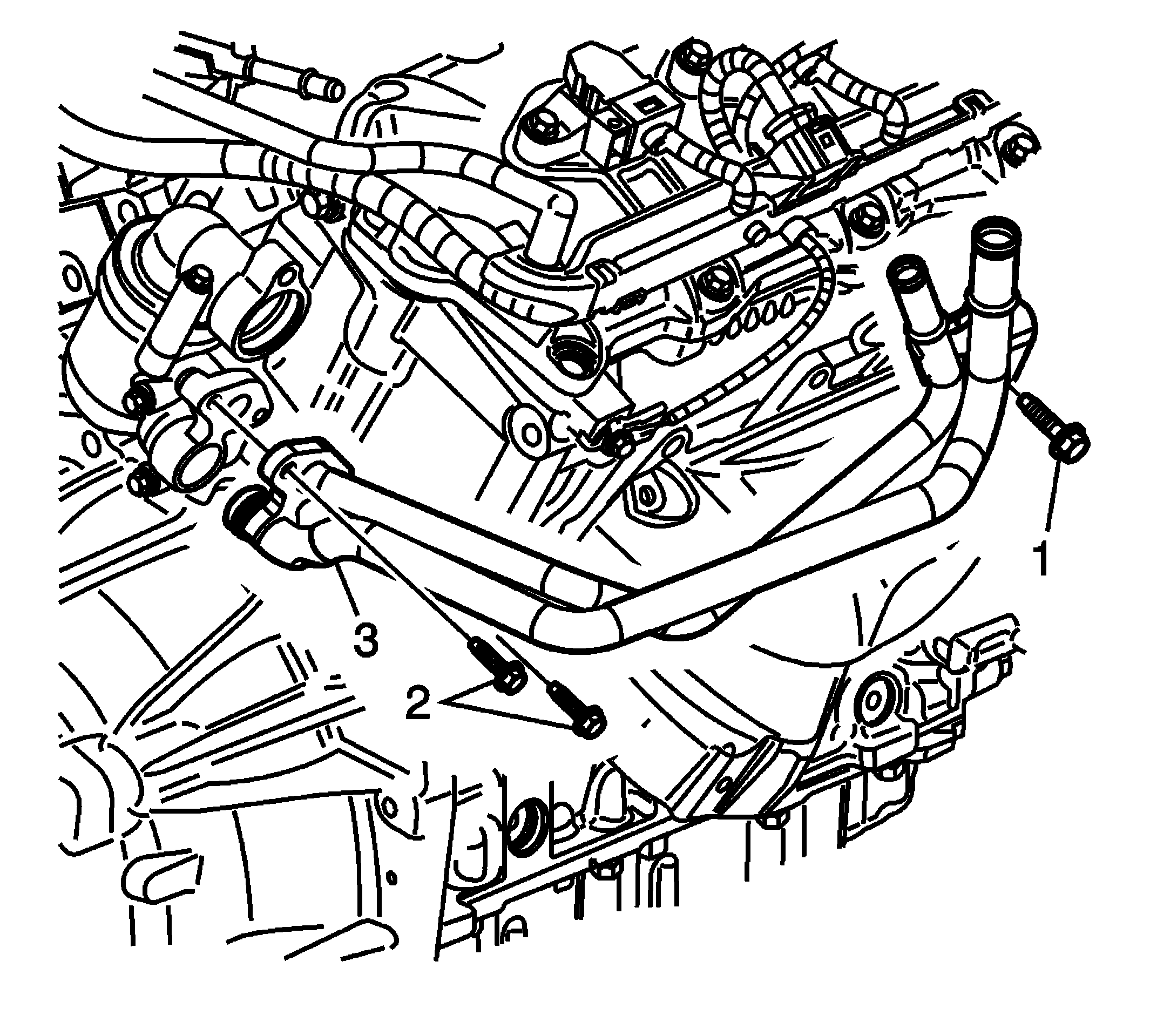

    5. Fig 4: Heater Inlet And Outlet Pipe Assembly Bolt
    GM3670384Courtesy of GENERAL MOTORS COMPANY
  5. Install the heater inlet/outlet pipe assembly (3).
  6. Install the heater inlet and outlet pipe assembly bolts (2) and tighten to 10 N.m (89 lb in).
  7. Install the heater inlet and outlet pipe assembly bolt (1) and tighten to 22 N.m (16 lb ft) .
