Drive Belt Tensioner Installation

WARNING: This page is about a different variant/trim than selected.

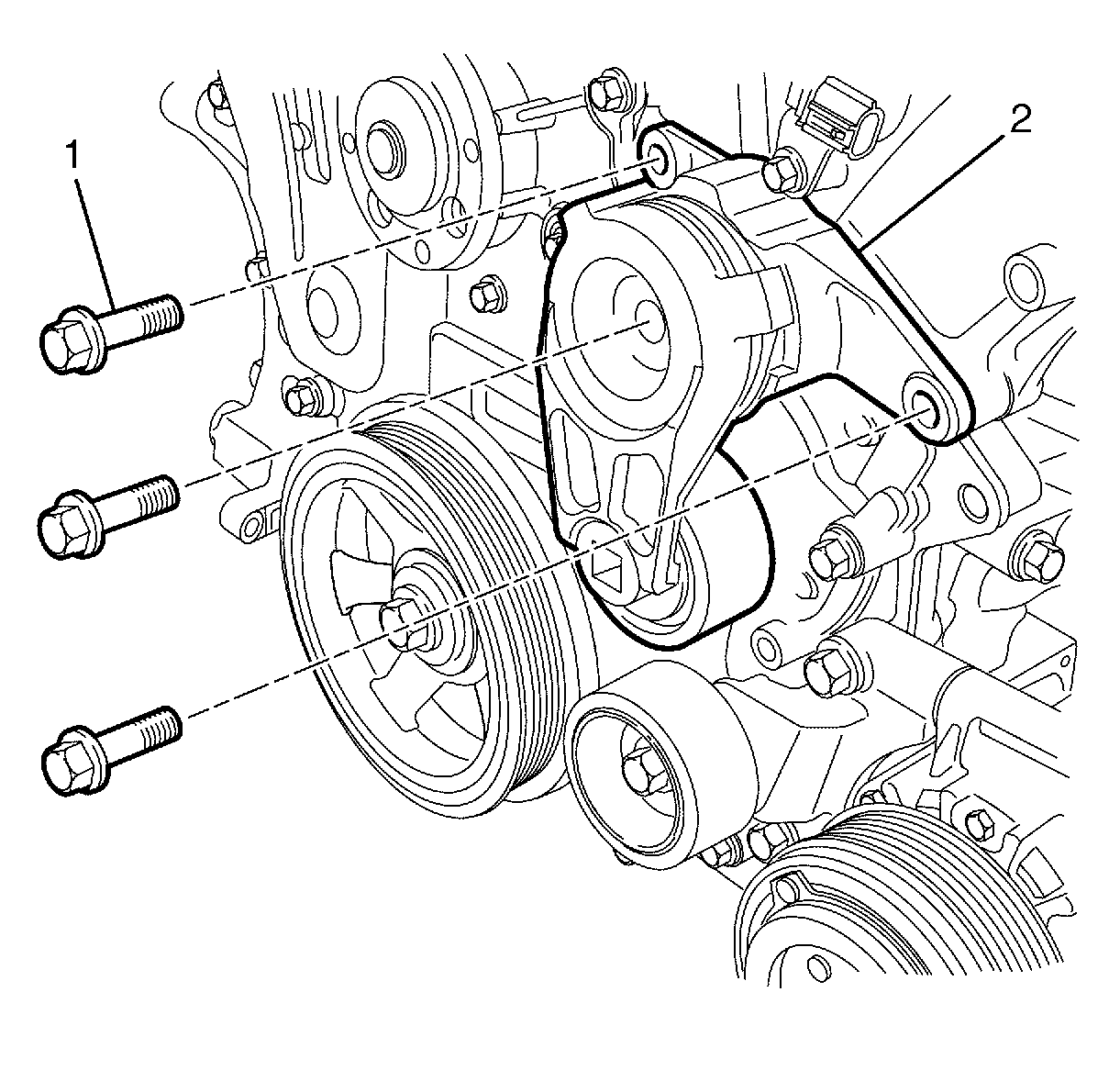

    Fig 1: Identifying Drive Belt Tensioner To Engine Front Cover Retaining Bolts
    GM1957932Courtesy of GENERAL MOTORS COMPANY
  1. Install the drive belt tensioner (2) to the engine front cover.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the drive belt tensioner to engine front cover retaining bolts (1) and tighten to 58 N.m (43 lb ft).
