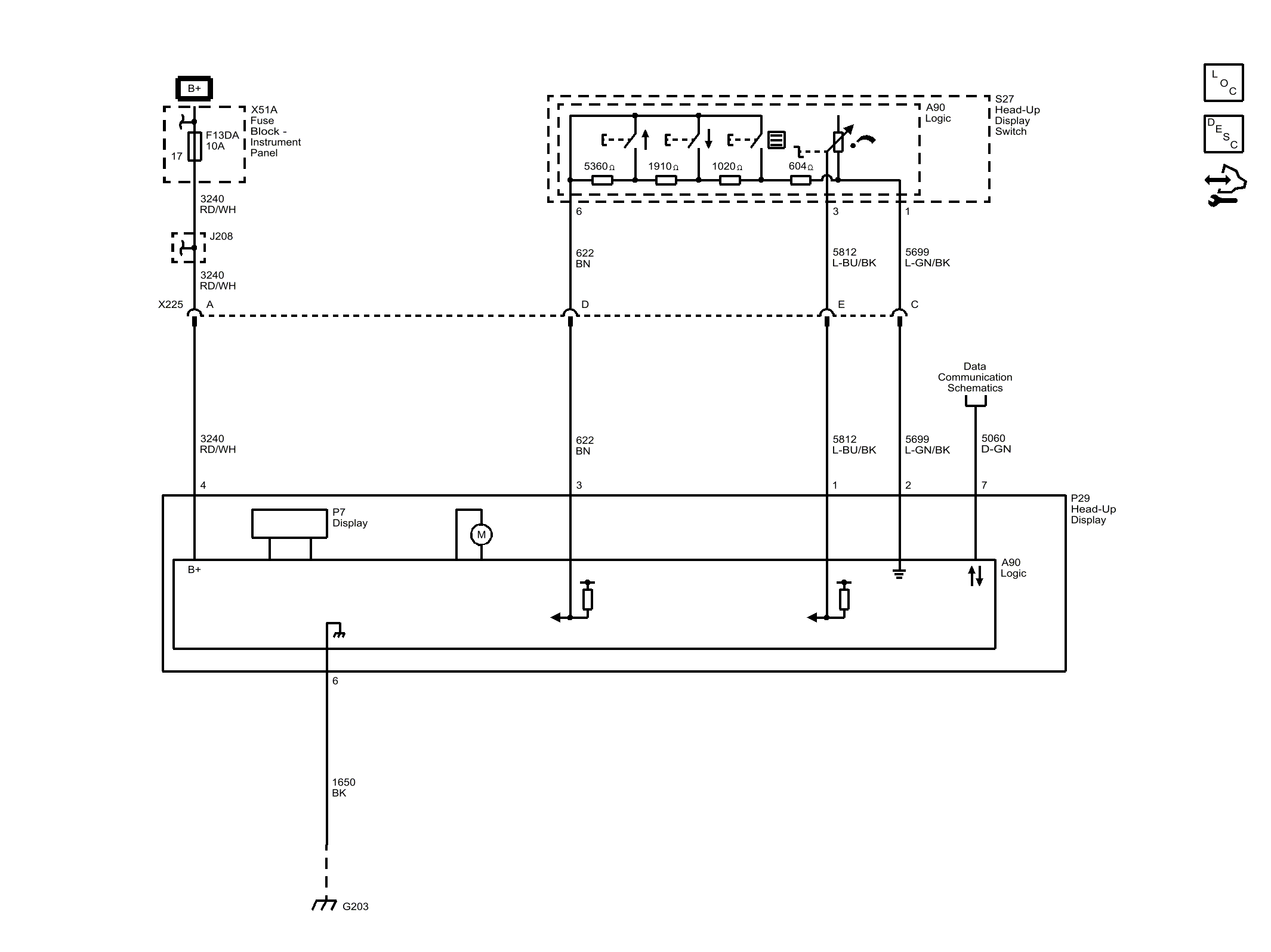

Home >> Chevrolet >> 2014 >> Camaro LS, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Head-Up Display Wiring Schematics >> UV6
