Backup Lamp Switch Replacement

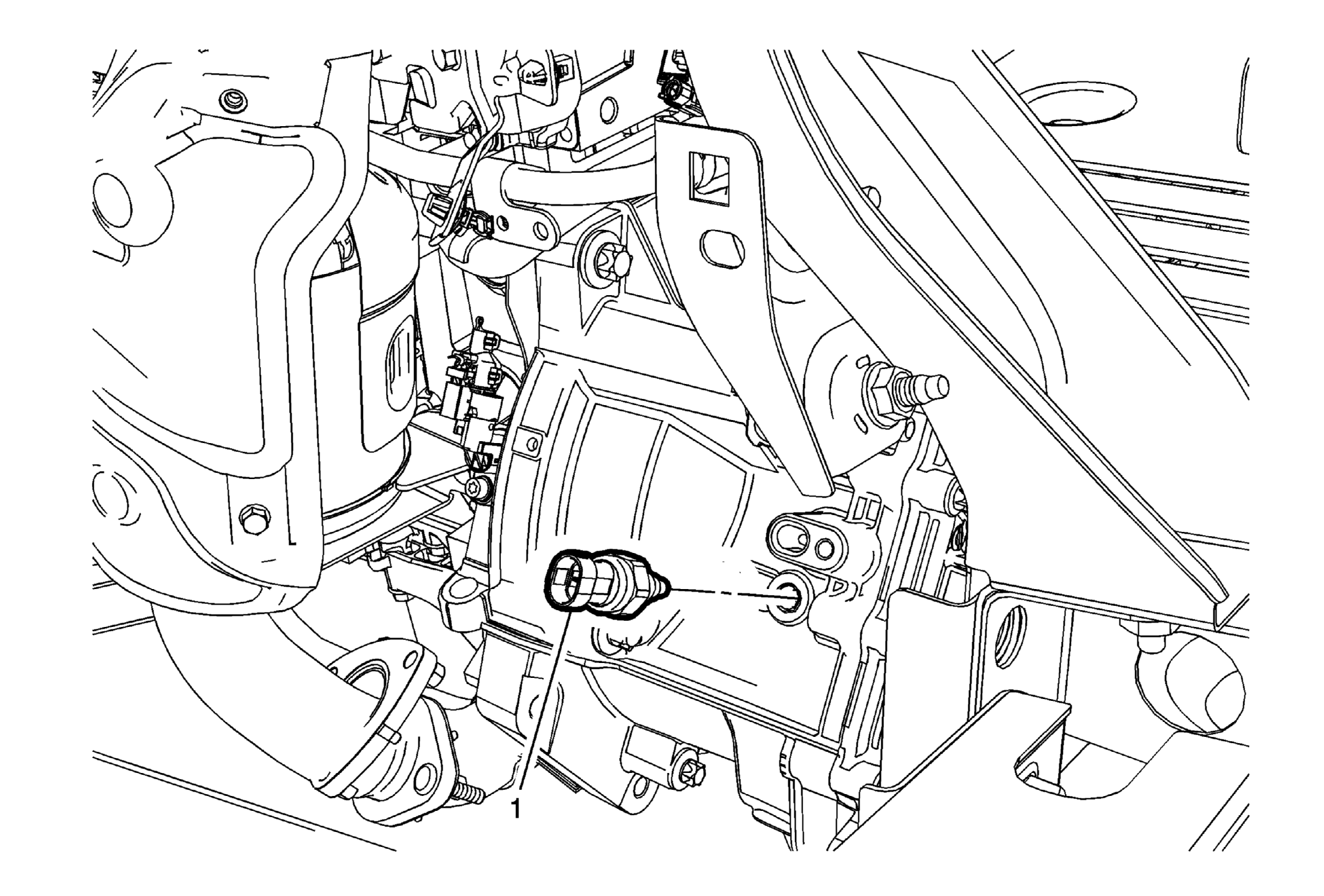

Fig 1: Backup Lamp Switch

GM2548852

Courtesy of GENERAL MOTORS COMPANY

Backup Lamp Switch Replacement

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front compartment front center insulator, if equipped. Refer to Front Compartment Front Center Insulator Replacement .

1

Backup Lamp Switch

CAUTION:

Refer to Component Fastener Tightening Caution .

Procedure
Disconnect the electrical connector.
Tighten
20 (15 lb ft)
