Transmission Control Replacement

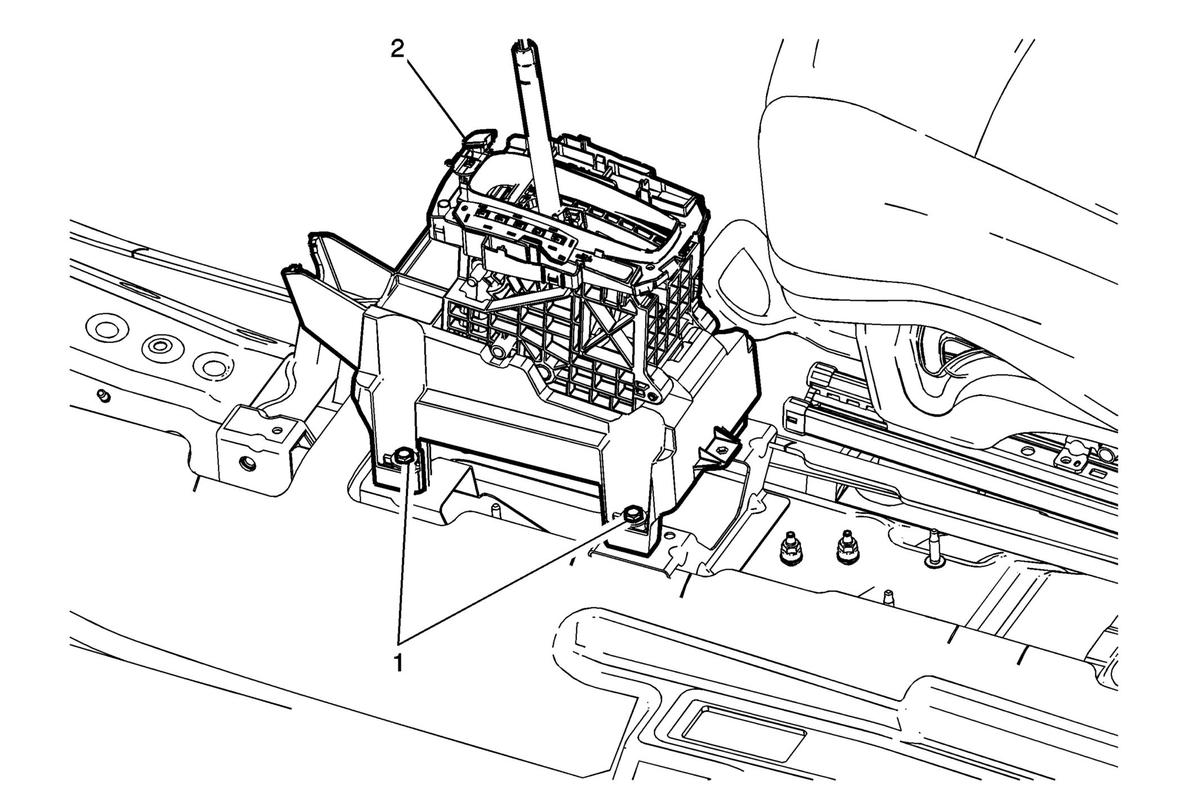

Fig 1: Transmission Control Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console. Refer to Front Floor Console Replacement (Buick) . Disconnect the range selector lever cable. Refer to Range Selector Lever Cable Replacement . Disconnect the transmission control electrical connectors.
1	Transmission Control Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Transmission Control

Callout

Component Name

Preliminary Procedures

Remove the front floor console. Refer to Front Floor Console Replacement (Buick) .
Disconnect the range selector lever cable. Refer to Range Selector Lever Cable Replacement .
Disconnect the transmission control electrical connectors.

Transmission Control Fastener (Qty: 4)

CAUTION:

Tighten
9 N.m (80 lb in)

Transmission Control
