Rear Seat Belt Opening Bezel Replacement

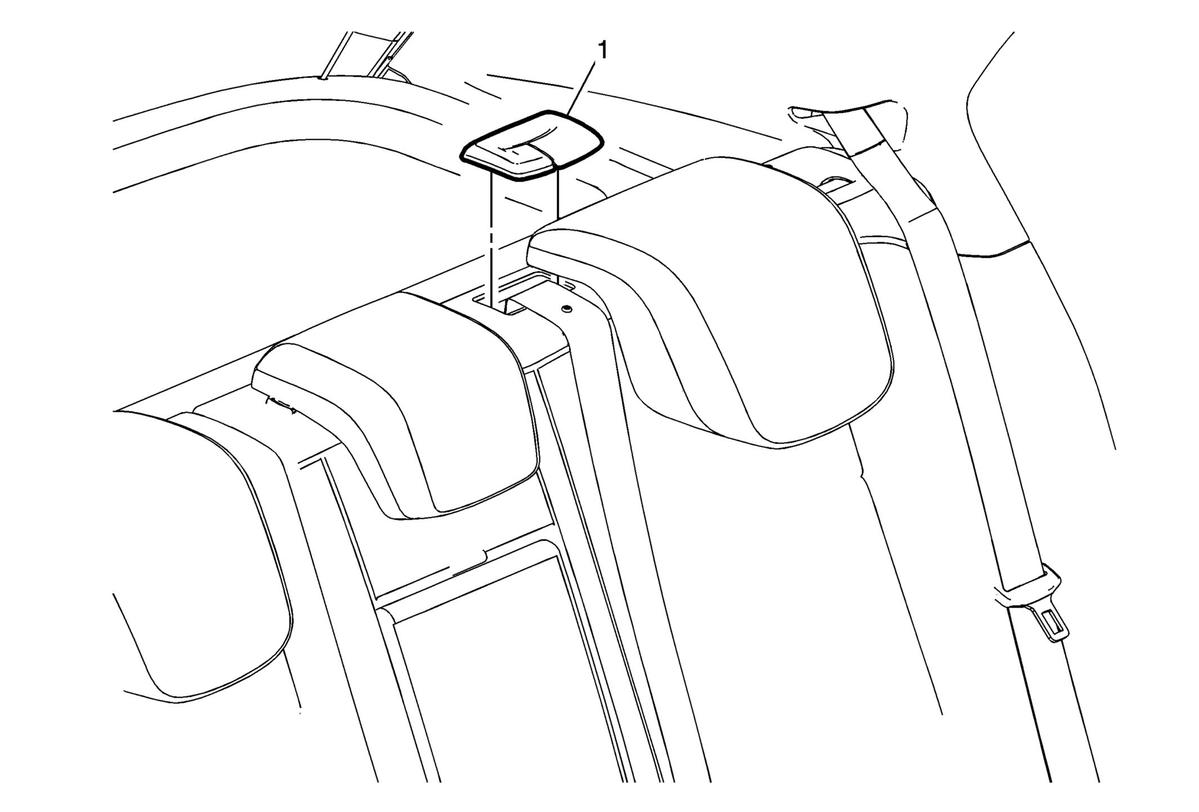

Fig 1: Rear Seat Belt Opening Bezel
GM2777935Courtesy of GENERAL MOTORS COMPANY
Rear Seat Belt Opening Bezel Replacement

Callout Component Name
1 Rear Seat Shoulder Belt Opening Bezel
Procedure
Push inward and upward from the front of the bezel to release from the seat back.
NOTE:

The rear seat shoulder belt opening bezel is part of the rear seat center belt assembly and is replaced as an assembly.
