Rear Seat Back Cushion Latch Release Handle Bezel Replacement
Courtesy of GENERAL MOTORS COMPANY Rear Seat Back Cushion Latch Release Handle Bezel Replacement

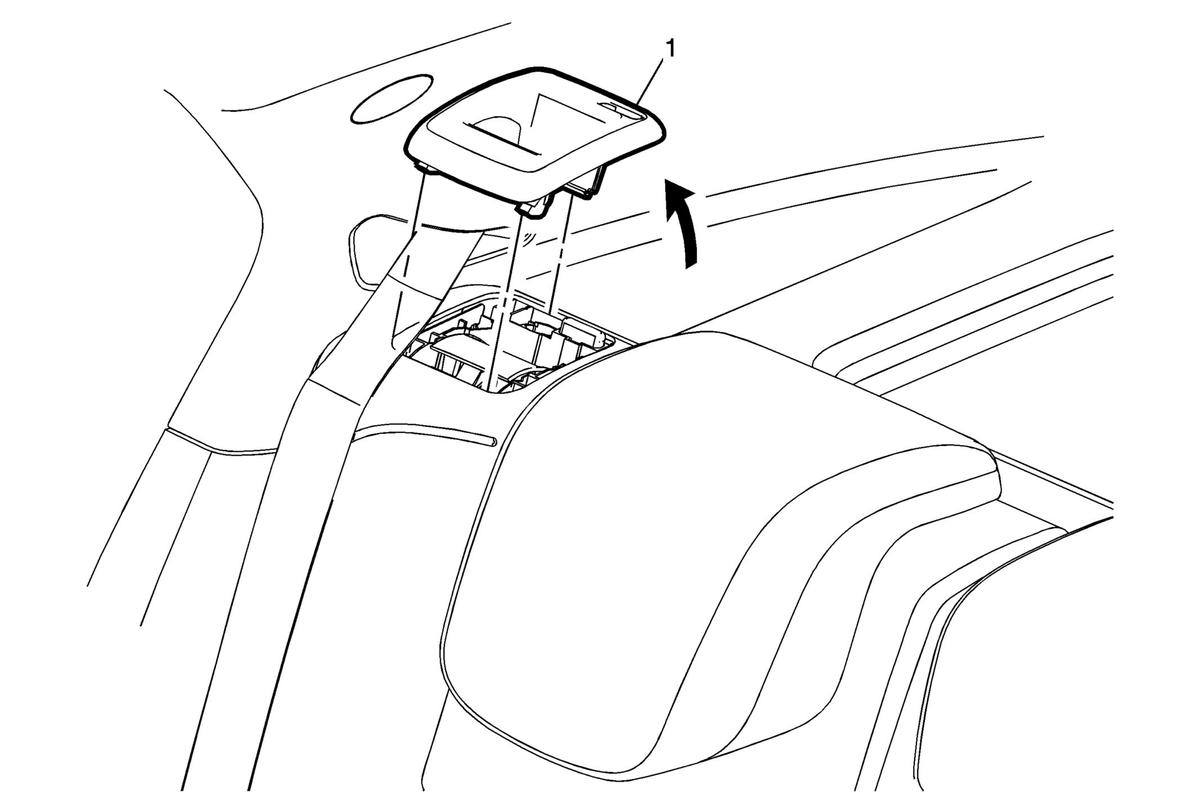

| Callout |
Component Name |
| 1 |
Rear Seat Back Cushion Latch Release Handle Bezel Procedure
- Use a small flat bladed tool to disengage the rear retainers.
- Slide the cover forward to disengage the front retainers from the rear seat back.
|
