Rear Seat Armrest Replacement

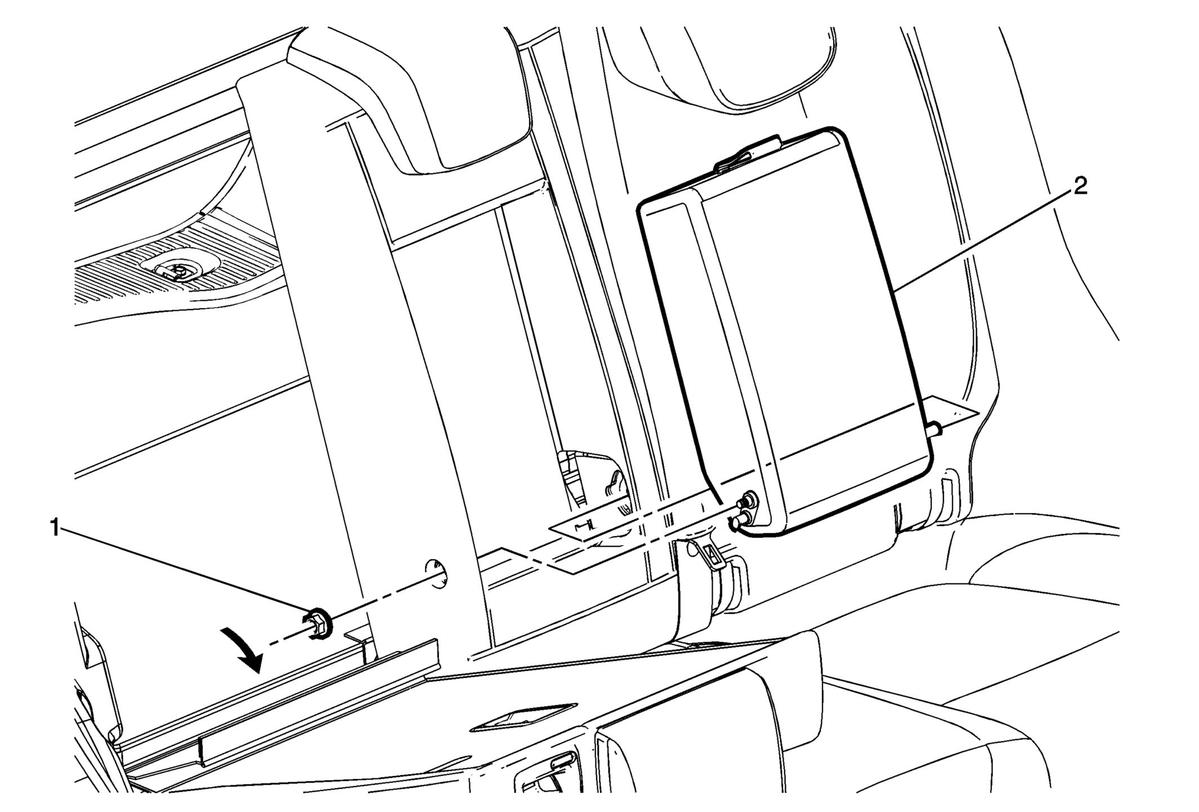

Fig 1: Rear Seat Armrest
GM2777913Courtesy of GENERAL MOTORS COMPANY
Rear Seat Armrest Replacement

Callout Component Name
Preliminary Procedure
Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40%)  or Rear Seat Back Cushion Cover and Pad Replacement (60%) .
1 Rear Seat Armrest Nut
CAUTION:

Refer to Fastener Caution .


Tighten
9 (80 in lb)
2 Rear Seat Armrest Assembly
