Front Seat Belt Anchor Plate Tensioner Cover Replacement
Front Seat Belt Anchor Plate Tensioner Cover Replacement

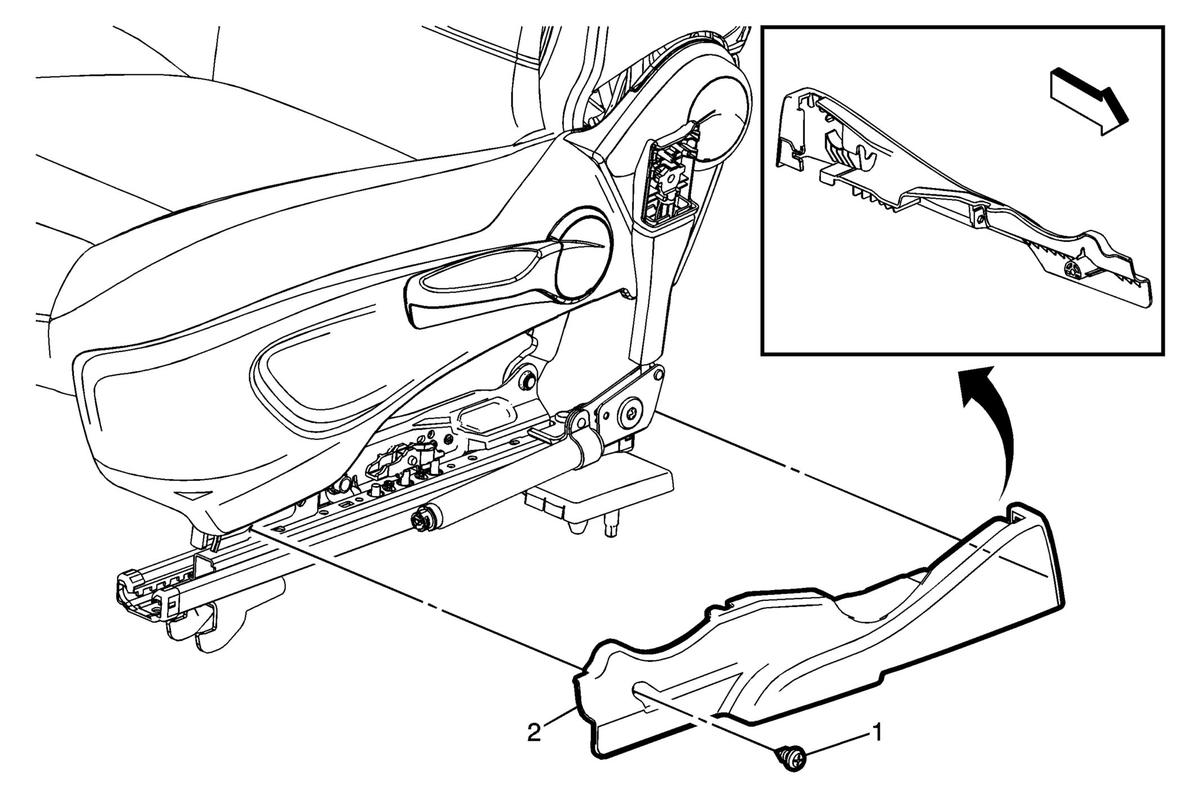

| Callout | Component Name |
|---|---|
| 1 | Front Seat Belt Anchor Plate Tensioner Cover Fastener
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Seat Belt Anchor Plate Tensioner Cover Procedure Remove the tensioner cover by applying light pressure to the front of the cover, push the cover rearward to remove it from the seat frame. |
