Front Seat Armrest Replacement (D05)
Front Seat Armrest Replacement (D05)

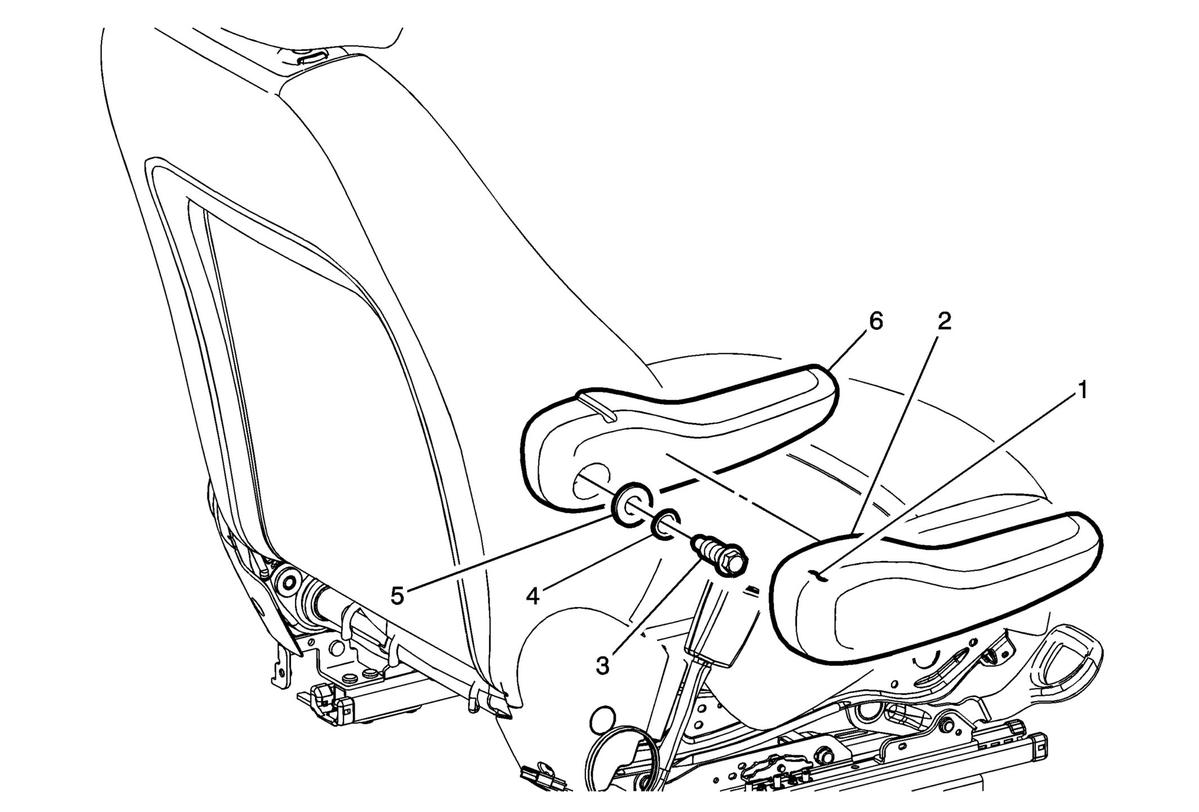

| Callout | Component Name |
|---|---|
| 1 | Front Seat Armrest Cover Zipper Procedure Open the zipper to access the front seat armrest mounting bolt and to remove the armrest cover |
| 2 | Front Seat Armrest Cover Procedure Slide the armrest cover off the armrest assembly. |
| 3 | Front Seat Armrest Mounting Bolt
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 4 | Front Seat Armrest Spring Washer |
| 5 | Front Seat Armrest Washer |
| 6 | Front Seat Armrest Assembly |
