Driver or Passenger Seat Head Restraint Replacement (AJC)
Courtesy of GENERAL MOTORS COMPANY Driver or Passenger Seat Head Restraint Replacement (AJC)

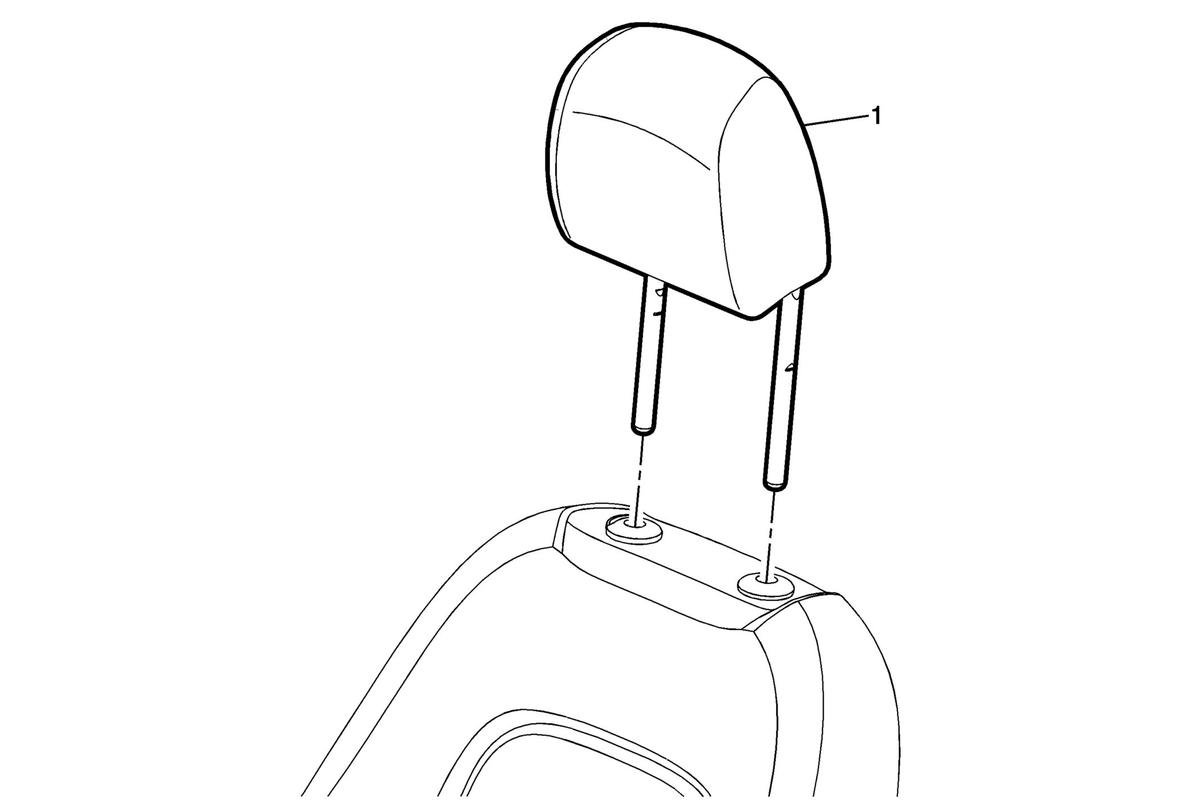

| Callout |
Component Name |
| 1 |
Driver or Passenger Seat Head Restraint Procedure
- Raise the headrest to the full upward position.
- Depress the flush button on the head restraint guide.
- Remove the head restraint by pulling up on the restraint.
|
