Child Seat Bracket Access Hole Cover Replacement

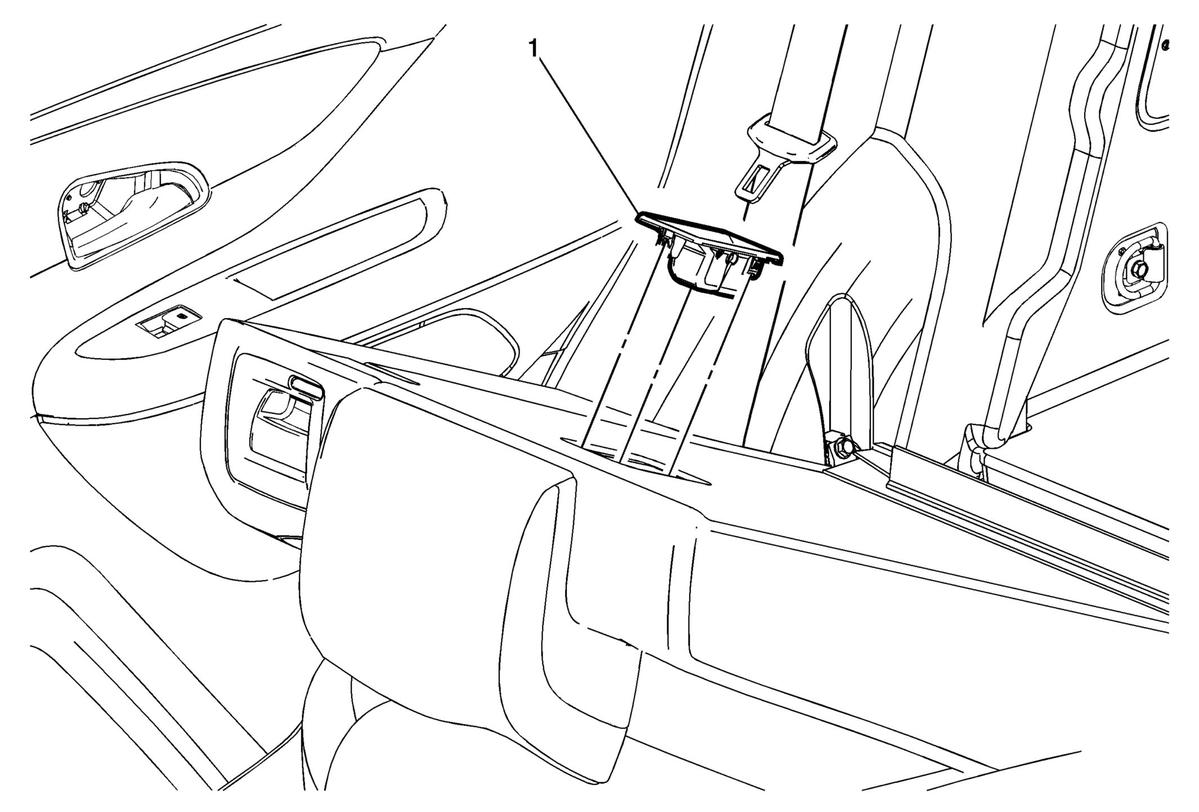

Fig 1: Child Seat Bracket Access Hole Cover
GM2777946Courtesy of GENERAL MOTORS COMPANY
Child Seat Bracket Access Hole Cover Replacement

Callout Component Name
1 Child Seat Bracket Trim Cover
Procedure
Use a flat bladed tool to push the tabs inward to release the cover from the seat back.
