Luggage Carrier Side Rail Replacement
Luggage Carrier Side Rail Replacement (Chevrolet)

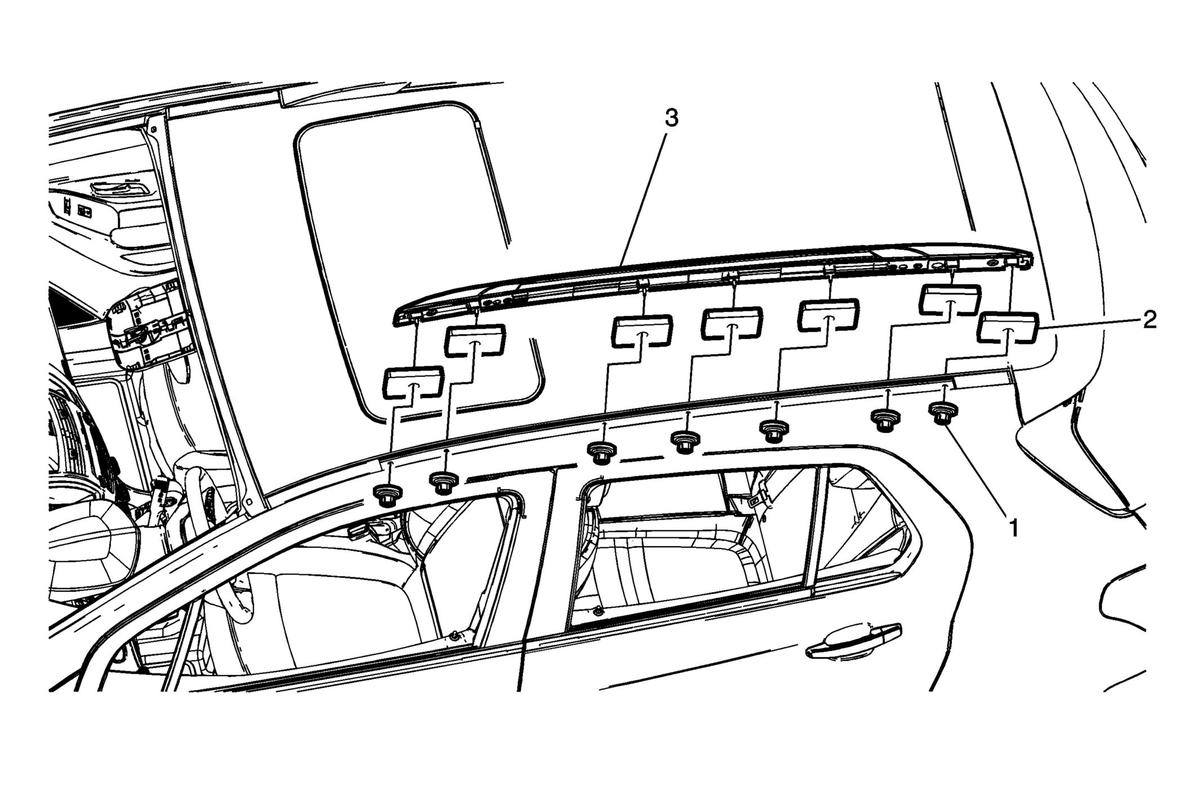

| Callout | Component Name |
|---|---|
| Preliminary Procedure It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (Without Sunroof, Buick) , Headlining Trim Panel Replacement (With Sunroof, Buick) or Headlining Trim Panel Replacement (Without Sunroof, Chevrolet) , Headlining Trim Panel Replacement (With Sunroof, Chevrolet) . |
|
| 1 | Luggage Carrier Side Rail Nuts (Qty: 7)
CAUTION:
Refer to Fastener Caution . Tighten 8 N.m (71 lb in) |
| 2 | Luggage Carrier Side Rail Seal to Roof (Qty: 7) Procedure It maybe necessary to transfer the seals located on the luggage carrier rail studs to the new luggage carrier rail studs. This seal prevents water leakage from around the stud. |
| 3 | Luggage Carrier Side Rail |
