Rear Side Door Window Garnish Molding Replacement (Buick)
Rear Side Door Window Garnish Molding Replacement (Buick)

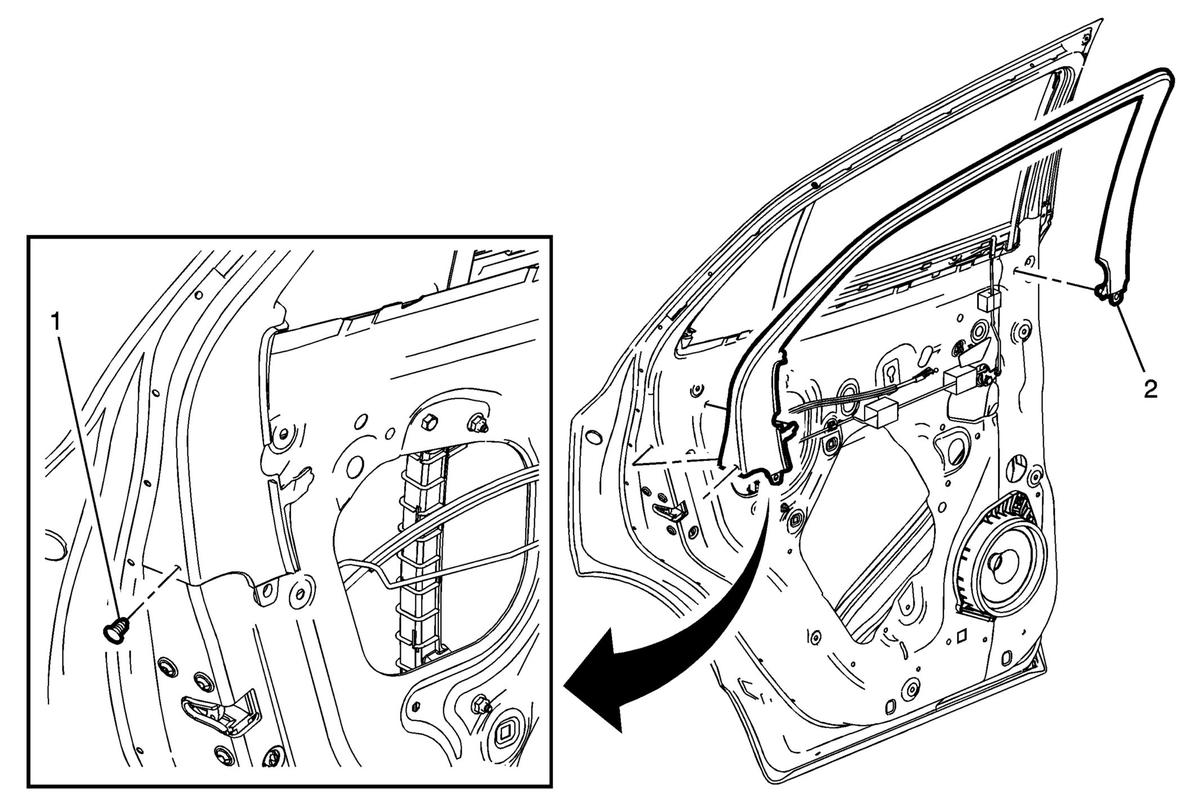

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . |
|
| 1 | Rear Side Door Window Garnish Molding Retainer Procedure Use a door trim panel removal tool or equivalent to aid in the removal of the retainer. |
| 2 | Rear Side Door Window Garnish Molding Assembly Procedure Pull outward starting at the front and moving slowly rearward to release the integral tabs from the rear side door inner panel. |
