Instrument Panel Trim Plate Replacement (Buick)

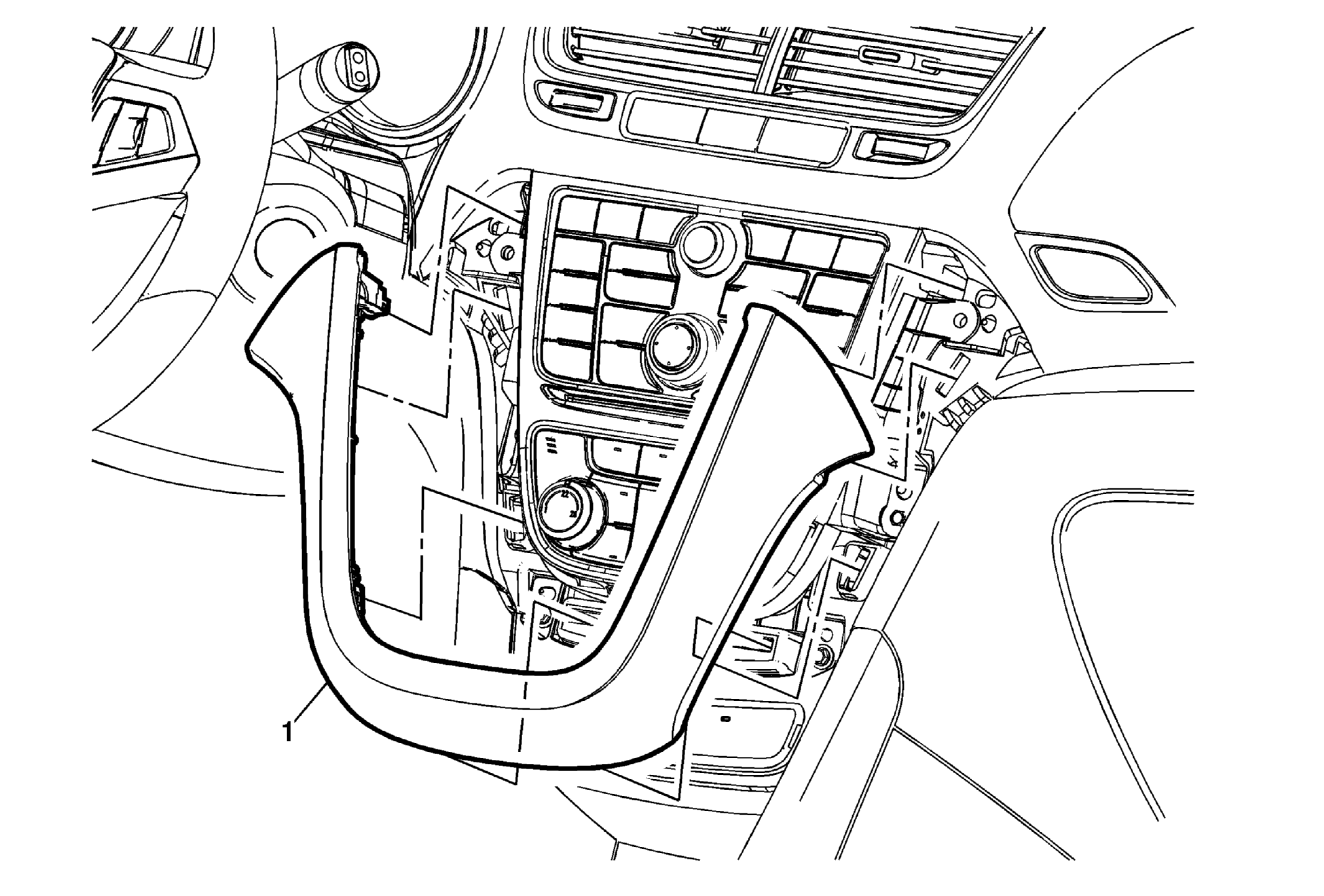

Fig 1: Instrument Panel Trim Plate
GM2778224Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Trim Plate Replacement (Buick)

Callout Component Name
1 Instrument Panel Trim Plate

Procedures

  1. Use a flat bladed plastic trim tool to aid in the removal of the trim plate from the instrument panel assembly.
  2. Disconnect the electrical connection.
