F5RB, F11RA, F12RA, F13RA, F14RA, F15RA, F16RA And F17RA Fuses

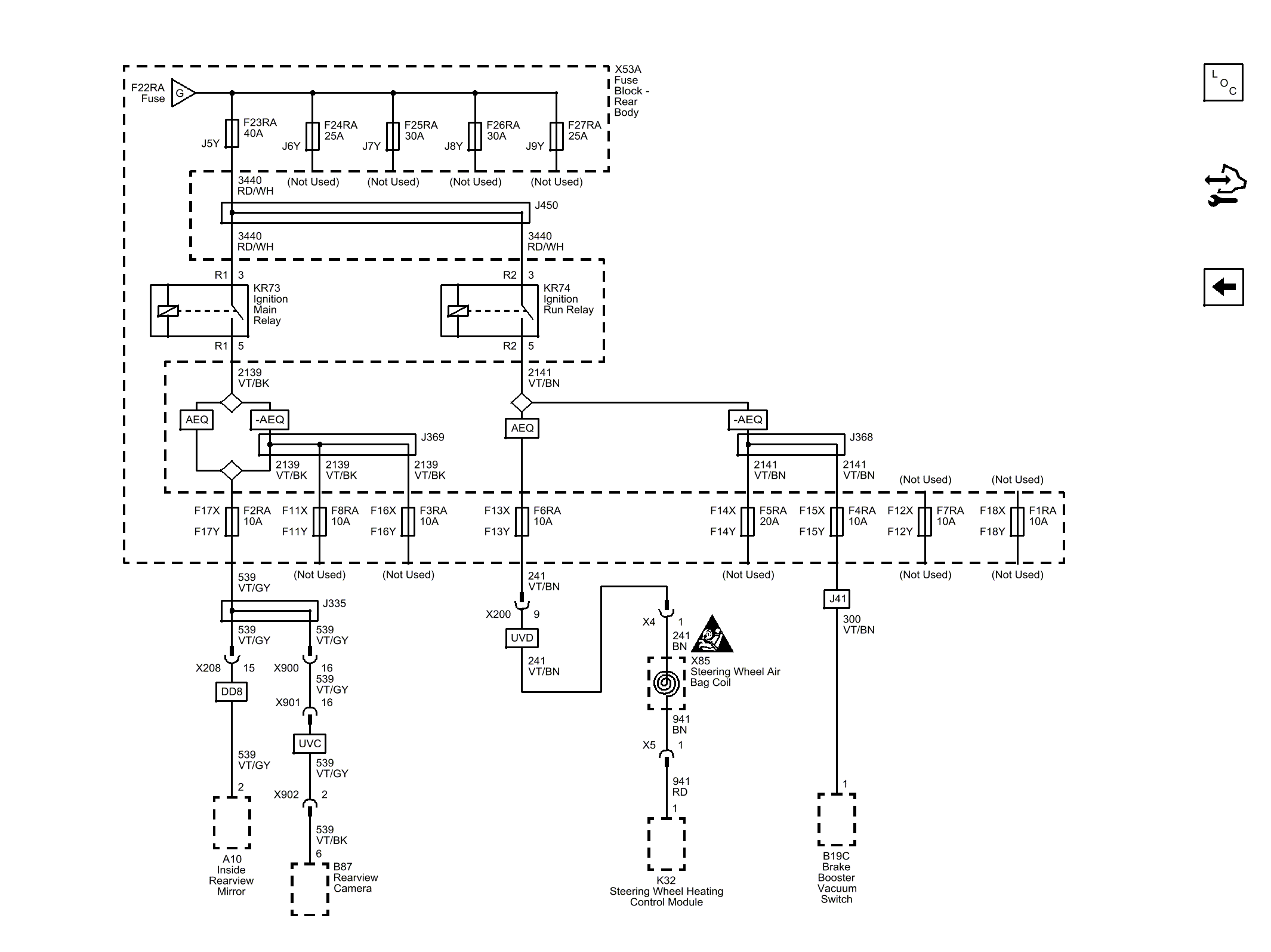

Fig 1: F5RB, F11RA, F12RA, F13RA, F14RA, F15RA, F16RA And F17RA Fuses Wiring Schematic

GM3104063

Courtesy of GENERAL MOTORS COMPANY
