F4UA, F07UA, F10UA, F17UA, F18UA And F19UA Fuses

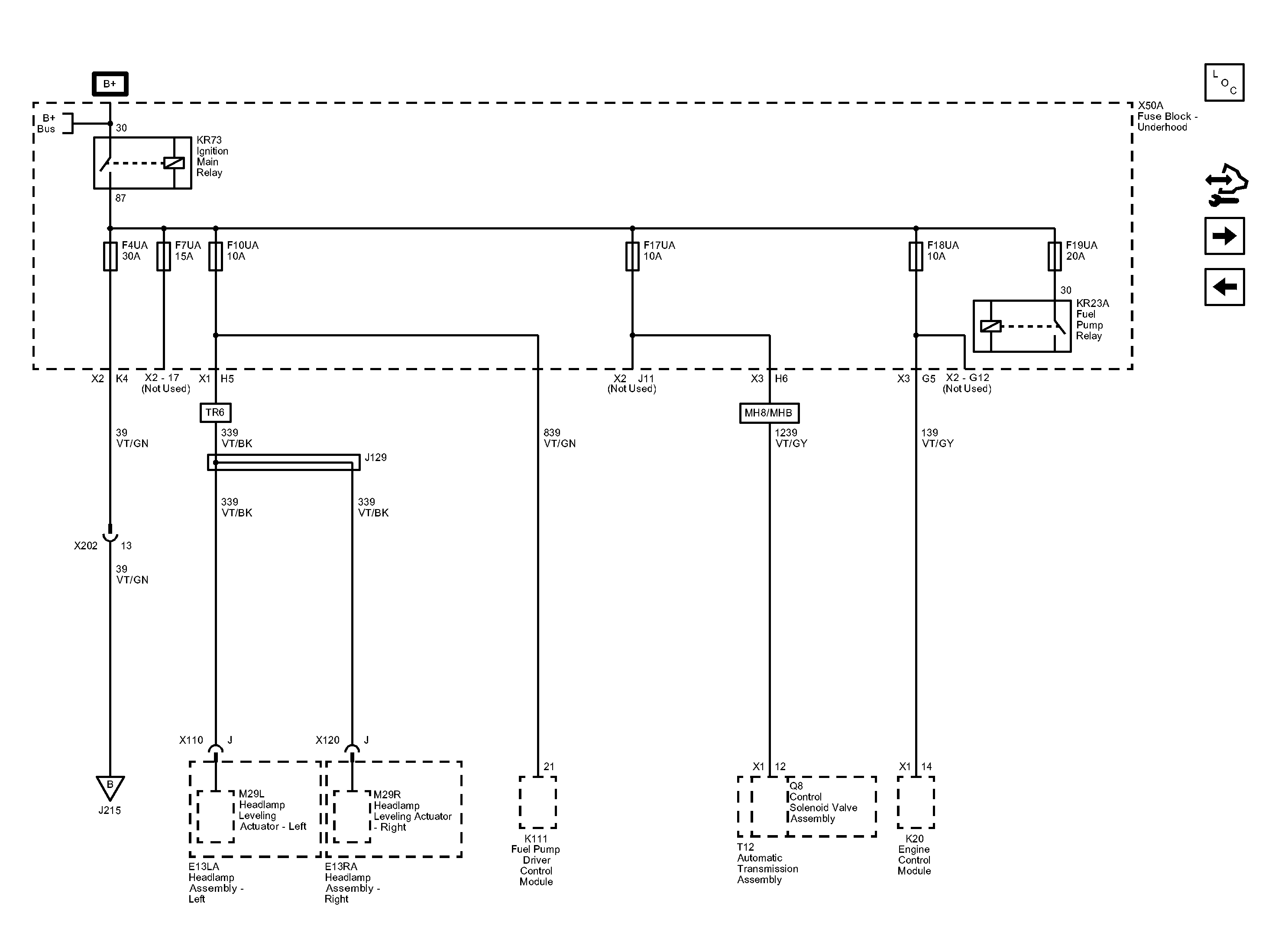

Fig 1: F4UA, F07UA, F10UA, F17UA, F18UA And F19UA Fuses Wiring Schematic

GM2873221

Courtesy of GENERAL MOTORS COMPANY
