F1UA, F1UB, F2UA, F3UB, F5UA, F8UA And F9UA

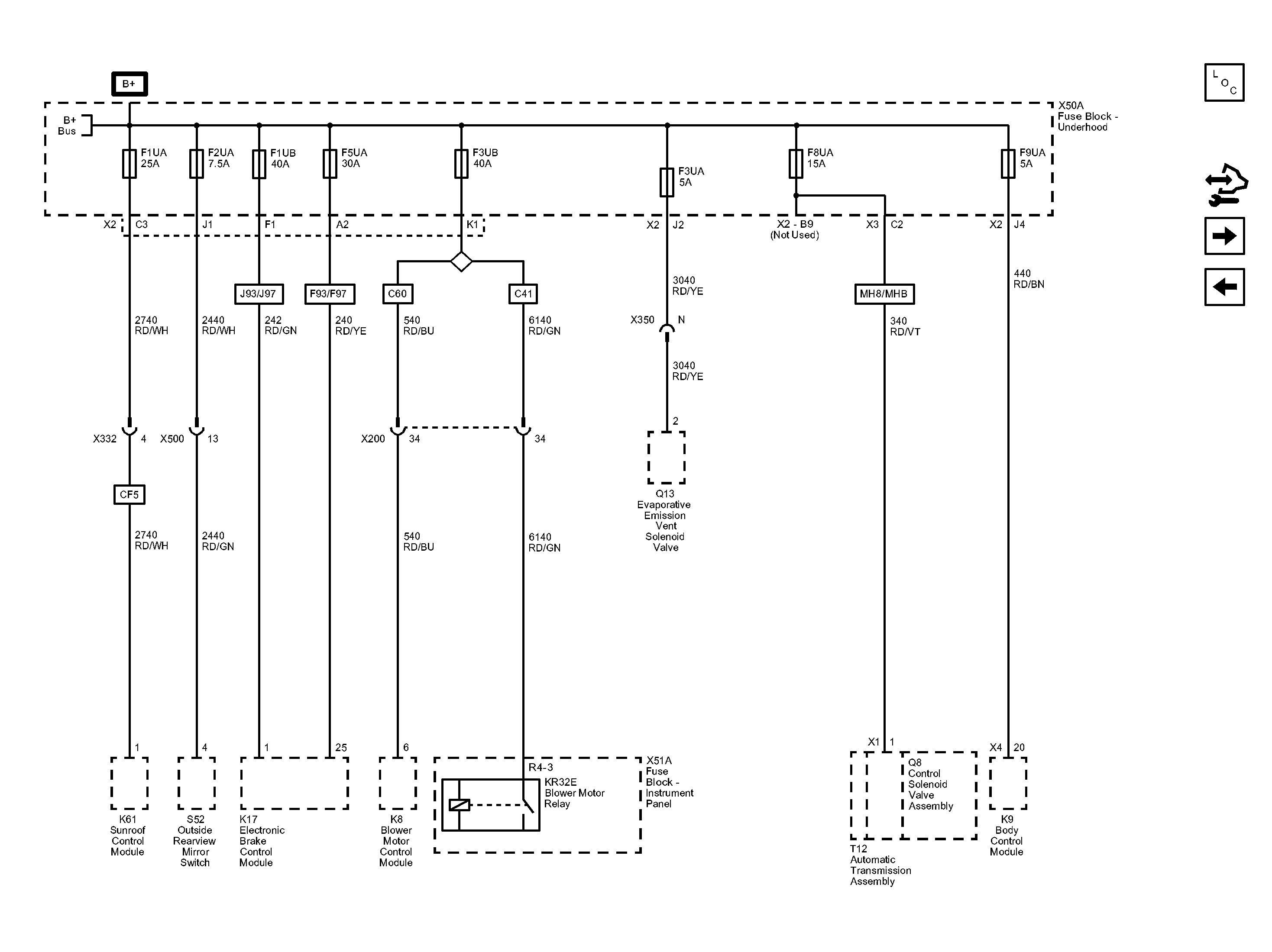

Fig 1: F1UA, F1UB, F2UA, F3UB, F5UA, F8UA And F9UA Wiring Schematic

GM2873289

Courtesy of GENERAL MOTORS COMPANY
