F1RA, F2RA, F3RA, F4RA, F5RA, F6RA, F7RA, F8RA, F9RA, F10RA, F19RA And F20RA Fuses

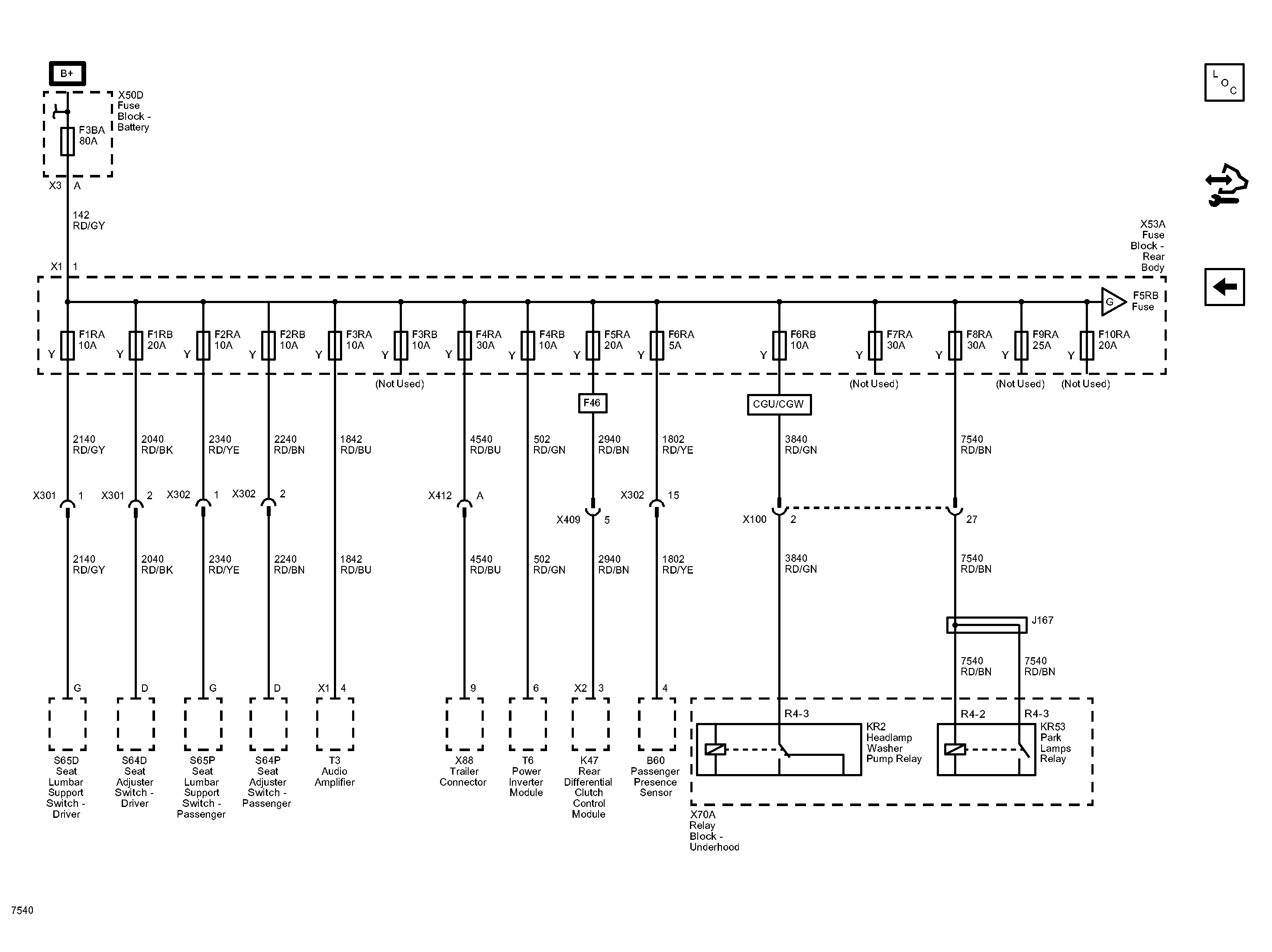

Fig 1: F1RA, F2RA, F3RA, F4RA, F5RA, F6RA, F7RA, F8RA, F9RA, F10RA, F19RA And F20RA Fuses Wiring Schematic
GM2885010Courtesy of GENERAL MOTORS COMPANY
