F12UA, F14UA, F16UA, F31UA, F32UA And F36UA

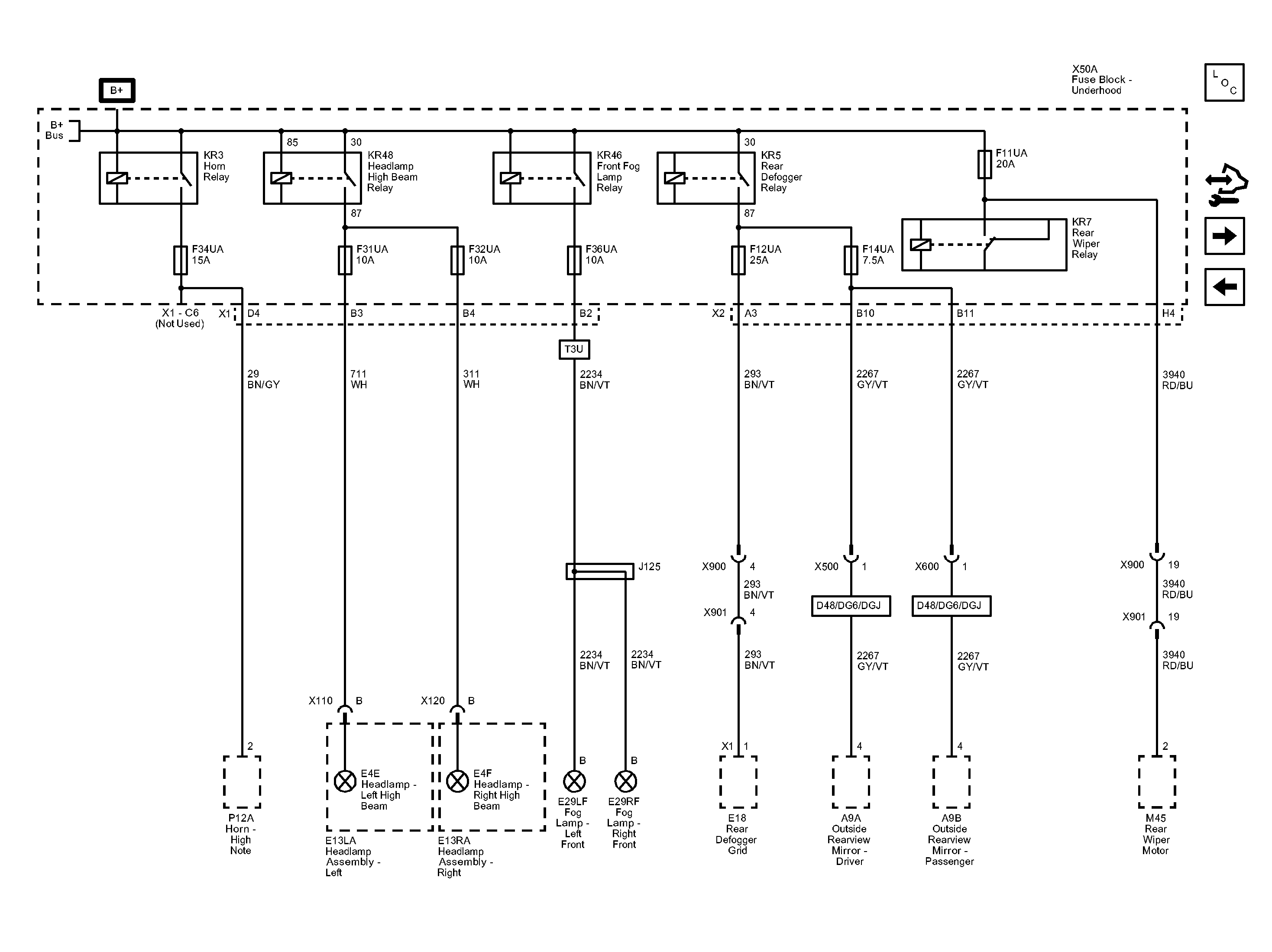

Fig 1: F12UA, F14UA, F16UA, F31UA, F32UA And F36UA Wiring Schematic

GM2873277

Courtesy of GENERAL MOTORS COMPANY
