F10UB, F13UA, F15UA, F16UA, F25UA And F33UA

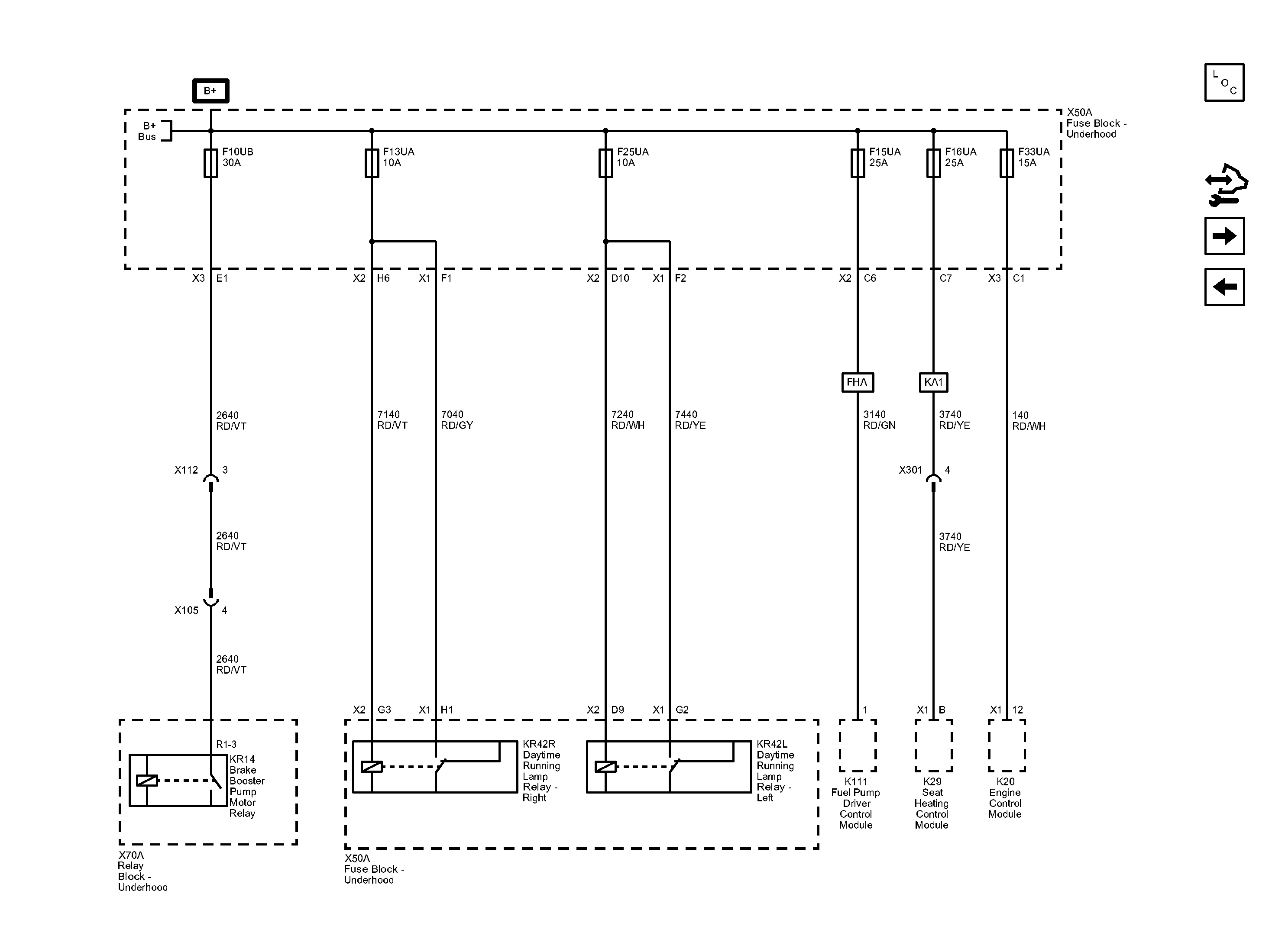

Fig 1: F10UB, F13UA, F15UA, F16UA, F25UA And F33UA Wiring Schematic

GM2873238

Courtesy of GENERAL MOTORS COMPANY
