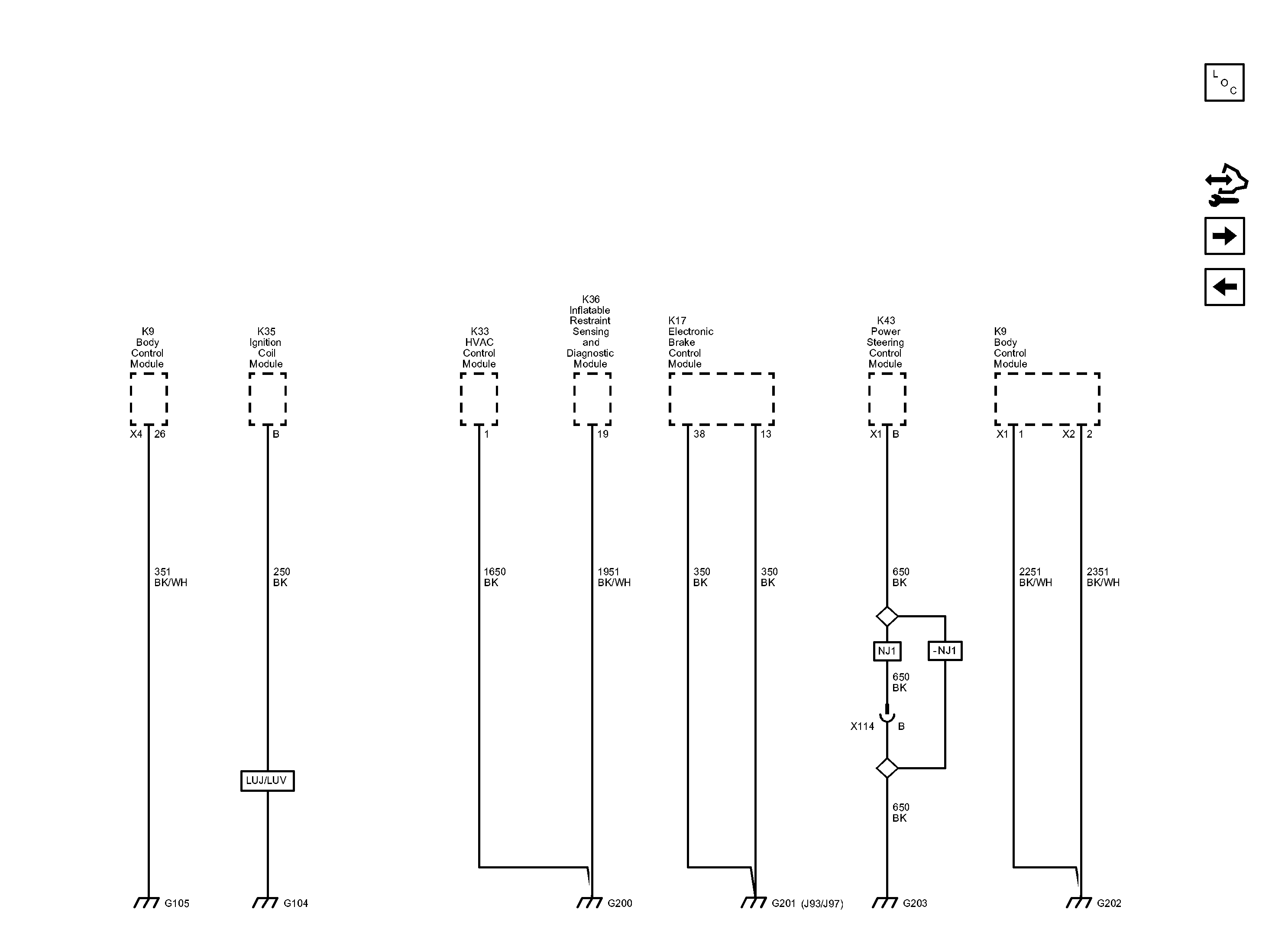

Home >> Chevrolet >> 2013 >> Trax LS, Standard Trans >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Schematic and Routing Diagrams >> Ground Distribution Schematics >> G104, G105, G200, G201, G202 And G203
