X500 Driver Door Harness To Body Harness

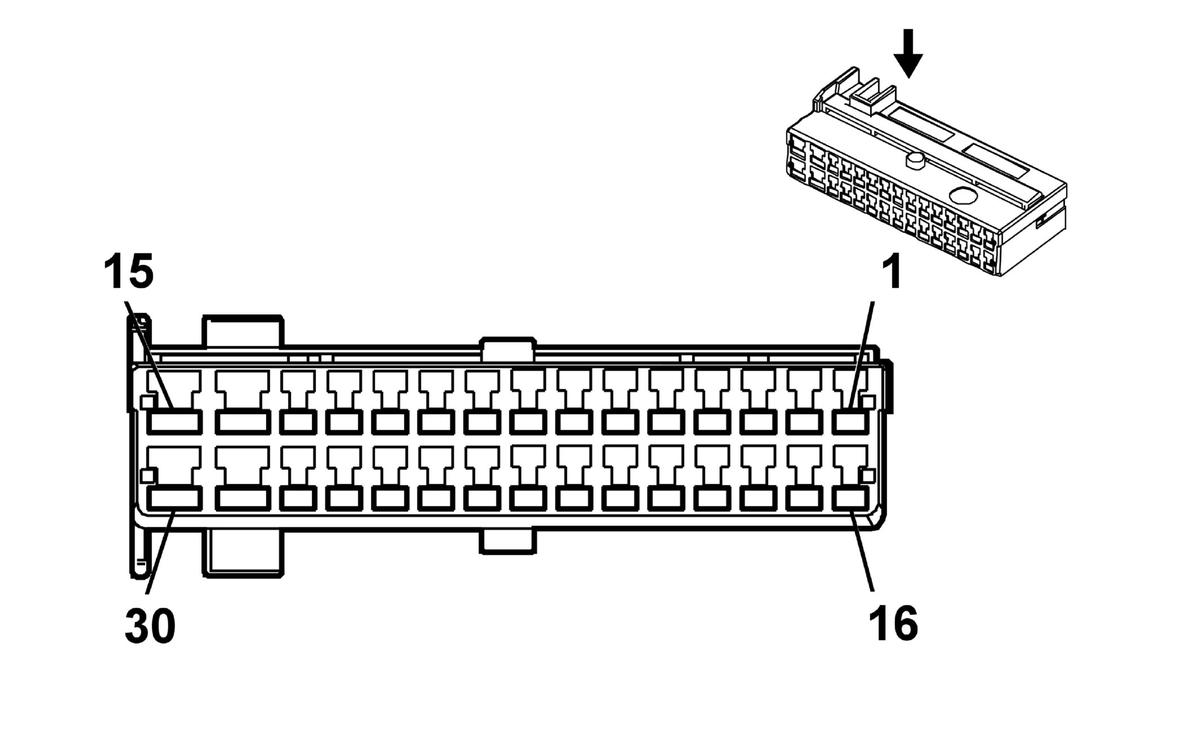

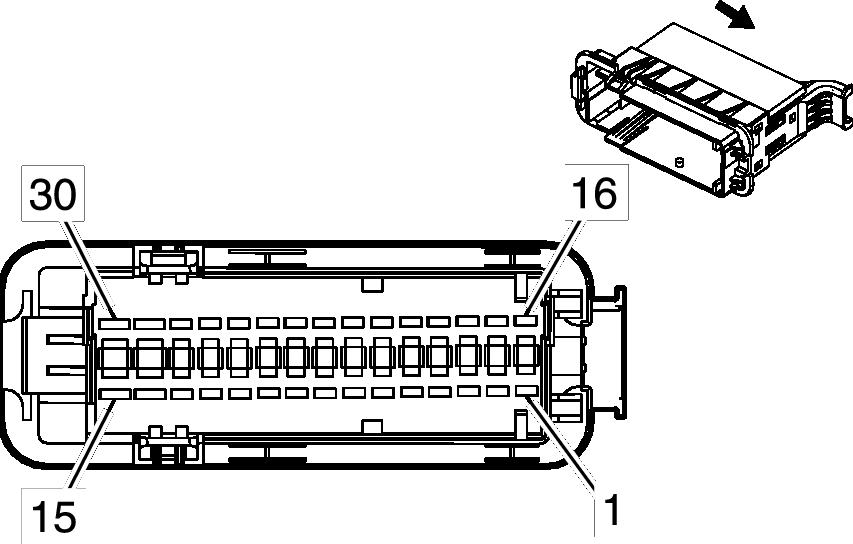

Connector Part Information Harness Type: Driver Door OEM Connector: MG653933-40A Service Connector: Service by Harness - See Part Catalog Description: 30-Way F GT 150, 280 Series (D-GY)	Connector Part Information Harness Type: Body OEM Connector: MG643934 Service Connector: 13395414 Description: 30-Way M GT 150/280 Series (D-GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13327109	J-35616-2A (GY)	J-38125-553	12191812	19	E	C
II	13575479	J-35616-2A (GY)	J-38125-553	12191812	19	C	A
III	13327131	J-35616-4A (PU)	J-38125-553	15304713	19	Not Available	Not Available
IV	13327131	J-35616-4A (PU)	J-38125-553	15304713	19	4	4
V	13327129	J-35616-3 (GY)	J-38125-553	15304702	19	E	4
VI	13327129	J-35616-3 (GY)	J-38125-553	15304702	19	E	C
VII	13575502	J-35616-3 (GY)	J-38125-553	15304702	19	2	4
VIII	13575508	J-35616-5 (PU)	J-38125-553	15304724	8	C	D

X500 Driver Door Harness To Body Harness

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	BN/YE	2267	I	DG6	Mirror Heating Element Supply Voltage	1	0.5	BN/YE	2267	V	STD
2-4	-	-	-	-	-	Not Occupied	2-4	-	-	-	-	-
5	0.5	BK	750	I	STD	Ground	5	0.5	BK	750	V	STD
6	0.5	GN/WH	7530	I	AAG	Linear Interconnect Network Bus 8	6	0.5	GN/WH	7530	V	AAG
7	-	-	-	-	-	Not Occupied	7	-	-	-	-	-
8	0.75 0.75 0.75	BU BU BU	201 201 201	II	UW6 UQG UQA	Left Front Speaker (+) (1) Left Front Speaker (+) (1) Left Front Speaker (+) (1)	8	0.75	BU	201	VII	STD
9	-	-	-	-	-	Not Occupied	9	-	-	-	-	-
10	0.5	BN/YE	780	I	STD	Driver Door Lock Switch Lock Signal	10	0.35	BN/YE	780	VI	STD
11	0.75	GY	5911	II	STD	Door Lock Actuator Lock Control 2	11	0.75 0.75	GY GY	5911 5911	VII	-N08 N08
12	0.5	WH	3398	I	-AAG	Co-Driver Mirror Motor Common Control	12	0.5	WH	3398	V	-AAG
13	0.5 0.5	RD/GN RD/BU	2440 2540	I	-AAG AAG	Battery Positive Voltage Battery Positive Voltage	13	0.5 0.5	RD/GN RD/BU	2440 2540	V	-AAG AAG
14	1.5	RD/YE	6540	III	STD	Battery Positive Voltage	14	1.5	RD/YE	6540	VIII	STD
15-17	-	-	-	-	-	Not Occupied	15-17	-	-	-	-	-
18	0.5	OG/GN	2132	I	(AY0/AYF)	Left Front Side Impact Sensing Module Signal	18	0.35	OG/GN	2132	VI	(AY0/AYF)
19	0.5	BK/OG	6628	I	(AY0/AYF)	Left Front Side Impact Sensing Module Low Reference	19	0.35	BK/OG	6628	VI	(AY0/AYF)
20	0.5	GN/YE	6134	I	STD	Linear Interconnect Network Bus 3	20	0.5	GN/YE	6134	V	STD
21	0.5	RD/VT	6340	I	STD	Battery Positive Voltage	21	0.35	RD/VT	6340	VI	STD
22	-	-	-	-	-	Not Occupied	22	-	-	-	-	-
23	0.75 0.75 0.75	BN/BU BN/BU BN/BU	118 118 118	II	UW6 UQA UQG	Left Front Speaker Signal (-) (1) Left Front Speaker Signal (-) (1) Left Front Speaker Signal (-) (1)	23	0.75	BN/BU	118	VII	STD
24	0.5 0.5	YE YE	6817 6817	I	-AAG AAG	LED Backlight Dimming Control LED Backlight Dimming Control	24	0.5	YE	6817	V	STD
25	0.5	BN/WH	781	I	STD	Driver Door Lock Switch Unlock Signal	25	0.35	BN/WH	781	VI	STD
26	0.75	BN/YE	294	II	STD	Door Lock Actuator Unlock Control	26	0.75	BN/YE	294	VII	STD
27	0.5	YE/VT	3397	I	-AAG	Co-Driver Mirror Motor Up (+) Down (-) Control	27	0.5	YE/VT	3397	V	-AAG
28	0.5	GN/BK	3396	I	-AAG	Co-Driver Mirror Motor Right (+) Left (-) Control	28	0.5	GN/BK	3396	V	-AAG
29	-	-	-	-	-	Not Occupied	29	-	-	-	-	-
30	2	BK	850	IV	STD	Ground	30	2	BK	850	VIII	STD
