X202 Body Harness To Instrument Panel Harness

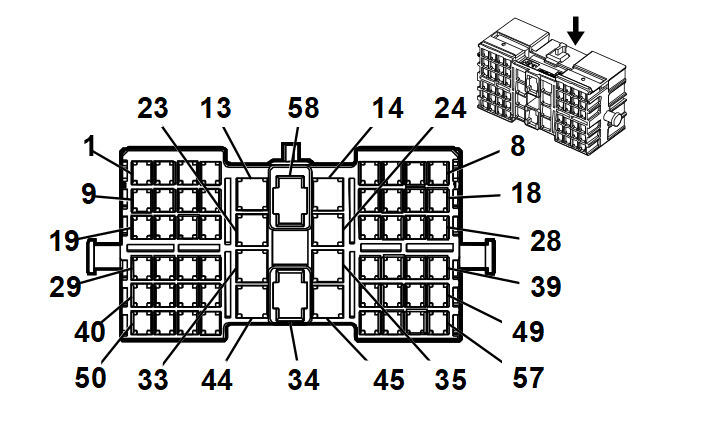

GM2537267

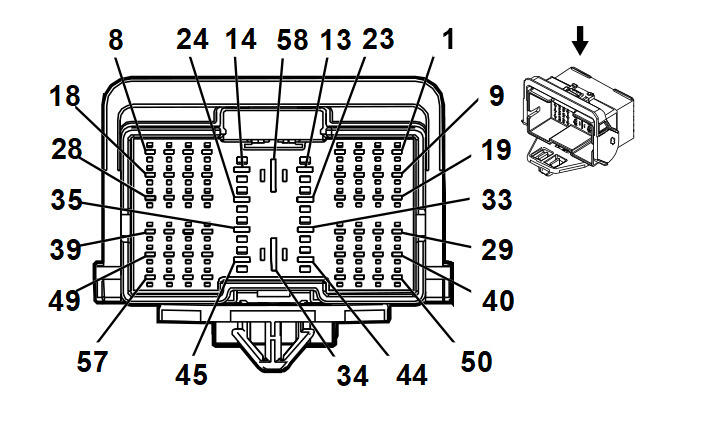

GM2537266
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 2005281-3
  • Service Connector: 13395410
  • Description: 58-Way F 1.6, 2.8, 4.8 Timer Series (GY)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 2005275-3
  • Service Connector: 13395409
  • Description: 58-Way M 1.6, 2.8, 5.8 Timer Series (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I Pending Pending Pending Pending Pending Pending Pending
X202 Body Harness To Instrument Panel Harness

Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.5 BK 2550 I (UQG/UQA)NKC Ground 1 0.5 BK 2550 I (UQG/UQA)NKC
2 0.35 VT/BU 6978 I (UQG/UQA)NKC Amplifier Control 2 0.35 VT/BU 6978 I (UQG/UQA)NKC
3 0.5
0.35		 GN/YE
GN/YE		 7066
7066		 I (UQG/UQA)UDN
(UQG/UQA)-UDN		 Entertainment Remote Enable Signal
Entertainment Remote Enable Signal		 3 0.35 GN/YE 7066 I (UQG/UQA)NKC
4 0.5 BK 2550 I (UQG/UQA)NKC Ground 4 0.5 BK 2550 I (UQG/UQA)NKC
5 0.35 GY 1903 I (UFU/UFF/UHQ) AAS Wheel Speed Sensor Signal Left Front 5 0.35 GY 1903 I (JM4/JL9)
6 - - - - - Not Occupied 6 - - - - -
7 0.5 BK/BU 7566 I CJ2 Humidity/Windscreen Temp Sensor Low Reference 7 0.35 BK/BU 7566 I CJ2
8 - - - - - Not Occupied 8 - - - - -
9 0.35 GN/BK 599 I (UQG/UQA)NKC Left Rear Low Level Audio Signal 9 0.35 GN/BK 599 I (UQG/UQA)NKC
10 0.35 BN/VT 1999 I (UQG/UQA)NKC Left Rear Low Level Audio (-) 10 0.35 BN/VT 1999 I (UQG/UQA)NKC
11 0.35 BU 511 I (UQG/UQA)NKC Left Front Low Level Audio Signal 11 0.35 BU 511 I (UQG/UQA)NKC
12 0.35 BN/BU 1947 I (UQG/UQA)NKC Left Front Low Level Audio (-) 12 0.35 BN/BU 1947 I (UQG/UQA)NKC
13 - - - - - Not Occupied 13 - - - - -
14 1.5 RD/WH 6440 I STD Battery Positive Voltage 14 1.5 RD/WH 6440 I STD
15 0.35 YE/RD 597 I CJ2 5 Volt Reference 15 0.35 YE/RD 597 I CJ2
16 0.35 GY/GN 7565 I CJ2 Windscreen Temp Sensor Signal 16 0.35 GY/GN 7565 I CJ2
17 0.35 GY/BU 7564 I CJ2 Humidity Sensor Signal 17 0.35 GY/BU 7564 I CJ2
18 0.35 YE/BU 3197 I CJ2 Humidity Temperature Sensor Signal 18 0.35 YE/BU 3197 I CJ2
19 0.35
0.75		 BN/WH
WH		 546
46		 I (UQG/UQA)NKC
UW6		 Right Rear Low Level Audio Signal
Right Rear Speaker (+)		 19 0.75
0.35		 WH
BN/WH		 46
546		 I UW6
(UQG/UQA)NKC
20 0.35
0.75		 BU/BK
BU/BK		 1946
115		 I (UQG/UQA)NKC
UW6		 Right Rear Low Level Audio (-)
Right Rear Speaker Signal (-)		 20 0.35
0.75		 BU/BK
BU/BK		 1946
115		 I (UQG/UQA)NKC
UW6
21 0.35
0.75		 YE
YE		 512
200		 I (UQG/UQA)NKC
UW6		 Right Front Low Level Audio Signal
Right Front Speaker (+) (1)		 21 0.75
0.35		 YE
YE		 200
512		 I UW6
(UQG/UQA)NKC
22 0.35
0.75		 BU/BN
YE/BK		 1546
117		 I (UQG/UQA)NKC
UW6		 Front Low Level Audio (-)
Right Front Speaker Signal (-) (1)		 22 0.75
0.35		 YE/BK
BU/BN		 117
1546		 I UW6
(UQG/UQA)NKC
23 1.5 RD/BU 6740 I STD Battery Positive Voltage 23 1.5 RD/BU 6740 I STD
24-27 - - - - - Not Occupied 24-27 - - - - -
28 0.35 GN/BU 6133 I (MH8/MHB) Linear Interconnect Network Bus 2 28 0.5 GN/BU 6133 I STD
29 0.35
0.35		 BU
BU		 655
655		 I UNM-UE1
UE1		 Cellular Telephone Microphone Signal
Cellular Telephone Microphone Signal		 29 0.35 BU 655 I STD
30 0.35
0.35		 BK/BN
BK/BN		 654
654		 I UNM-UE1
UE1		 Cellular Telephone Microphone Low Reference
Cellular Telephone Microphone Low Reference		 30 0.35 BK/BN 654 I STD
31 - - - - - Not Occupied 31 - - - - -
32 0.5 GN/GY 6135 I STD Linear Interconnect Network Bus 4 32 0.5 GN/GY 6135 I STD
33 0.5 BU 2500 I UE1 High Speed GMLAN Serial Data (+) (1) 33 0.5
0.5
0.5		 BU
BU
BU		 2500
2500
2500		 I F46UE1-FHA
(JM4/JL9)UE1-FHA-F46
FHAUE1
34 - - - - - Not Occupied 34 - - - - -
35 0.5 WH 2501 I UE1 High Speed GMLAN Serial Data (-) (1) 35 0.5
0.5
0.5		 WH
WH
WH		 2501
2501
2501		 I F46UE1-FHA
(JM4/JL9)UE1-FHA-F46
FHAUE1
36 0.35 GY/WH 3272 I STD Remote Function Actuator Supply Voltage 36 0.35
0.35		 GY/WH
GY/WH		 3272
3272		 I UFL
-UFL
37 0.35 YE/GN 3274 I STD Remote Function Actuator Transmit Signal 37 0.35
0.35		 YE/GN
YE/GN		 3274
3274		 I UFL
-UFL
38 0.35 BU/WH 3275 I STD Remote Function Actuator Receive Signal 38 0.35
0.35		 BU/WH
BU/WH		 3275
3275		 I UFL
-UFL
39 0.35 GY 3273 I STD Remote Function Actuator Return 39 0.35 GY 3273 I -UFL
40 0.5 RD/YE 1142 I STD Battery Positive Voltage 40 0.5 RD/YE 1142 I STD
41 0.35 WH 3152 I UFL Lane Departure Warning Indicator Control 41 0.35 WH 3152 I UFL
42 0.5 GY/WH 3153 I UFL Lane Departure Warning Disable Switch Signal 42 0.35 GY/WH 3153 I UFL
43 0.5 VT/BK 7553 I (MH8/MHB) Park Lock Solenoid Control 43 0.5 VT/BK 7553 I STD
44 0.5 BU/WH 6128 I STD Rear Closure Unlatch Motor Unlatch Control 44 0.5 BU/WH 6128 I STD
45 - - - - - Not Occupied 45 - - - - -
46 0.35 GY/GN 2555 I UD5 Rear Park Assist Disable Signal 46 0.35 GY/GN 2555 I UD5
47 0.35 GN/BN 5852 I UD5 Rear Park Assist LED Disable Signal 47 0.35 GN/BN 5852 I UD5
48 0.35 RD/BN 1140 I STD Battery Positive Voltage 48 0.35 RD/BN 1140 I (UD5/UD7)
49 - - - - - Not Occupied 49 - - - - -
50 0.35 BN/YE 780 I STD Driver Door Lock Switch Lock Signal 50 0.35 BN/YE 780 I STD
51 0.35 BN/WH 781 I STD Driver Door Lock Switch Unlock Signal 51 0.35 BN/WH 781 I STD
52 - - - - - Not Occupied 52 - - - - -
53 0.35 BN/VT 245 I STD Passenger Door Lock Switch Unlock Control 53 0.35 BN/VT 245 I STD
54 0.35 RD/GN 1840 I STD Battery Positive Voltage 54 0.35 RD/GN 1840 I STD
55 0.35 GY/YE 6972 I UVC Camera Signal #2 + 55 0.35 GY/YE 6972 I STD
56 0.35 WH/BU 6973 I UVC Camera Signal #2 56 0.35 WH/BU 6973 I STD
57 0.5 GY 7069 I UVC Camera Shield Extension 57 0.5 GY 7069 I STD
58 - - - - - Not Occupied 58 - - - - -
