X100 Forward Lamp Harness To Body Harness

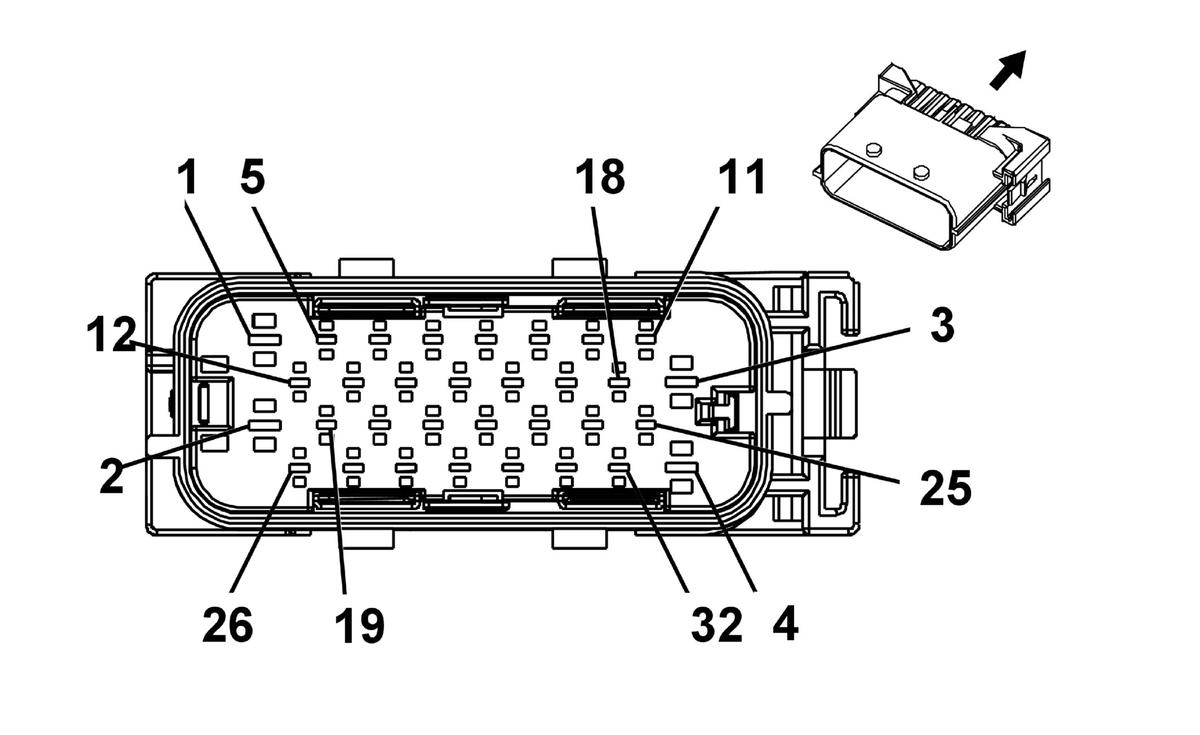

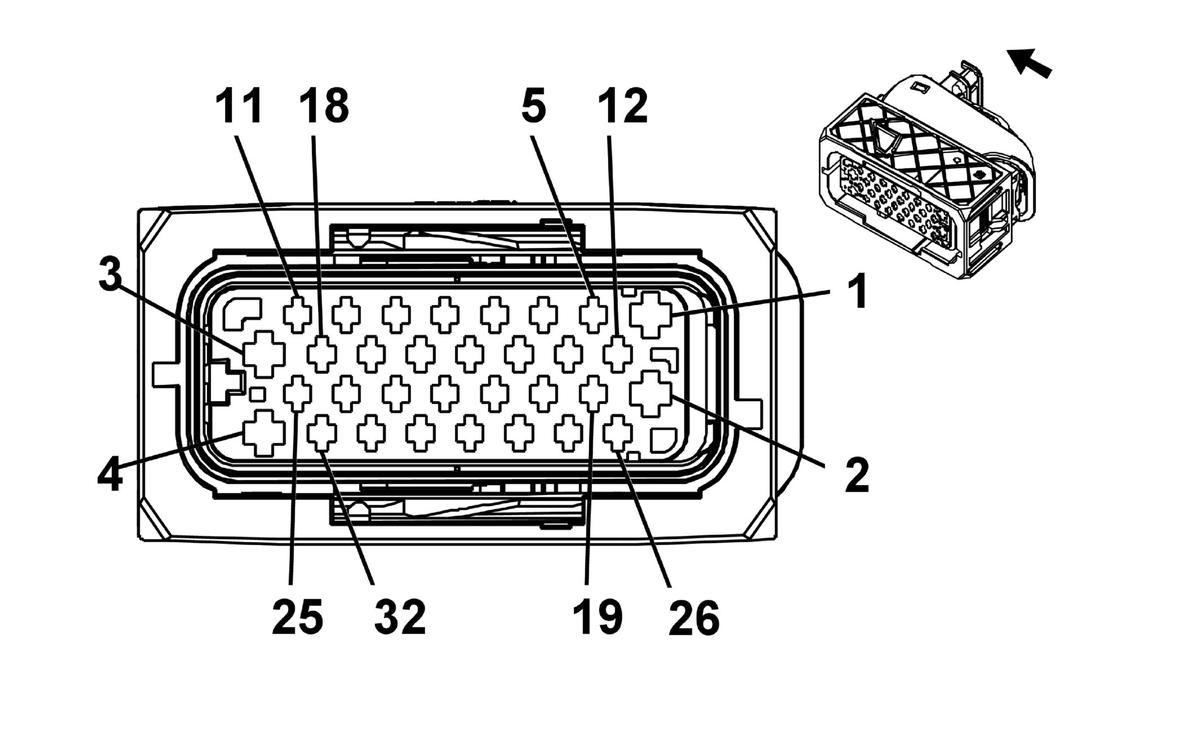

Connector Part Information Harness Type: Forward Lamp OEM Connector: 13831369 Service Connector: No SDC/FSU Description: 32-Way F 1.5 DSQ, 2.8 ATS Series, Sealed (BK)	Connector Part Information Harness Type: Body OEM Connector: 13831377 Service Connector: No SDC/FSU Description: 32-Way M 1.5 DSQ, 2.8 ATS Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13582248	J-35616-14 (GN)	J-38125-560	Not Available	Pending	E	1
II	13584470	J-35616-14 (GN)	J-38125-560	964274-2	16	E	1
III	Pending	J-35616-35 (VT)	J-38125-36	4-964273-1	15	E	1
IV	13327188	J-35616-3 (GY)	J-38125-560	Not Available	Pending	Not Available	Not Available
V	13327190	J-35616-3 (GY)	J-38125-560	Not Available	Pending	E	1
VI	Pending	Pending	Pending	Pending	Pending	Pending	Pending

X100 Forward Lamp Harness To Body Harness

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1-2	-	-	-	-	-	Not Occupied	1-2	-	-	-	-	-
3	1.5	BN/VT	1470	III	STD	Brake Booster Pump Motor Supply Voltage	3	1.5	BN/VT	1470	VI	STD
4	1.5	RD/VT	2640	III	STD	Battery Positive Voltage	4	1.5	RD/VT	2640	VI	STD
5	0.5	BN	6305	I	STD	Brake Vacuum Switch Signal	5	0.5	BN	6305	V	STD
6	-	-	-	-	-	Not Occupied	6	-	-	-	-	-
7	0.5	GN/VT	2032	I	STD	Coolant Temperature Sensor Signal	7	0.5	GN/VT	2032	V	STD
8	-	-	-	-	-	Not Occupied	8	-	-	-	-	-
9	0.35	BN	6581	I	UD5	Front Parking Aid Display Supply Voltage	9	0.35	BN	6581	IV	UD5
10	0.35	VT/WH	5215	I	UD5	Front Parking Left Corner Sensor	10	0.35	VT/WH	5215	IV	UD5
11	0.35	WH/GY	5217	I	UD5	Front Parking Right Corner Sensor	11	0.35	WH/GY	5217	IV	UD5
12	0.5	BN/YE	189	I	TR6	Headlamp Leveling Motor Supply Voltage	12	0.5	BN/YE	189	V	TR6
13	-	-	-	-	-	Not Occupied	13	-	-	-	-	-
14	0.5	BK/BU	6813	I	STD	Coolant Temperature Sensor #2 Low Reference	14	0.5	BK/BU	6813	V	STD
15	0.35	BN/GN	109	I	UTJ/BTV	Hood Ajar Switch Signal	15	0.35	BN/GN	109	IV	STD
16	0.35	BK/BU	5214	I	UD5	Front Parking Sensor Low Reference	16	0.35	BK/BU	5214	IV	UD5
17	0.35	YE/GY	5216	I	UD5	Front Parking Left Mid Sensor	17	0.35	YE/GY	5216	IV	UD5
18	0.35	VT/GY	5218	I	UD5	Front Parking Right Mid Sensor	18	0.35	VT/GY	5218	IV	UD5
19-21	-	-	-	-	-	Not Occupied	19-21	-	-	-	-	-
22	0.35	OG/GN	1409	I	AY0/AYF	Right Front Discriminating Sensor Signal	22	0.35	OG/GN	1409	IV	(AY0/AYF)
23	0.35	BK/OG	5600	I	AY0/AYF	Right Front Discriminating Sensor Low Reference	23	0.35	BK/OG	5600	IV	(AY0/AYF)
24	0.35 0.35	OG/YE OG/GY	354 6618	I	AY0/AYF AJG/AYC	Left Front Discriminating Sensor Signal Middle Front Discriminating Sensor Signal	24	0.35 0.35 0.35	OG/GY OG/YE OG/GY	6618 354 6618	IV	AYC (AY0/AYF) AJG
25	0.35 0.35	BK/OG BK/OG	5045 6619	I	AY0/AYF AJG/AYC	Left Front Discriminating Sensor Low Reference Middle Front Discriminating Sensor Low Reference	25	0.35 0.35 0.35	BK/OG BK/OG BK/OG	6619 6619 5045	IV	AYC AJG (AY0/AYF)
26	-	-	-	-	-	Not Occupied	26	-	-	-	-	-
27	0.75	RD/BN	7540	II	STD	Battery Positive Voltage	27	0.75	RD/BN	7540	V	RZW
28	0.75	GY/BN	2109	II	STD	Trailer Park Lamp Supply Voltage	28	0.75	GY/BN	2109	V	RZW
29	0.35	BU	45	I	STD	Park Lamp Relay Control	29	0.35	BU	45	IV	RZW
30	-	-	-	-	-	Not Occupied	30	-	-	-	-	-
31	0.5	BK/BU	61	I	STD	Outside Ambient Temperature Sensor Low Reference	31	0.35	BK/BU	61	IV	STD
32	0.5	BU/GY	636	I	STD	Outside Ambient Air Temperature Sensor Signal	32	0.35	BU/GY	636	IV	STD
