Rear Seat Latch Replacement

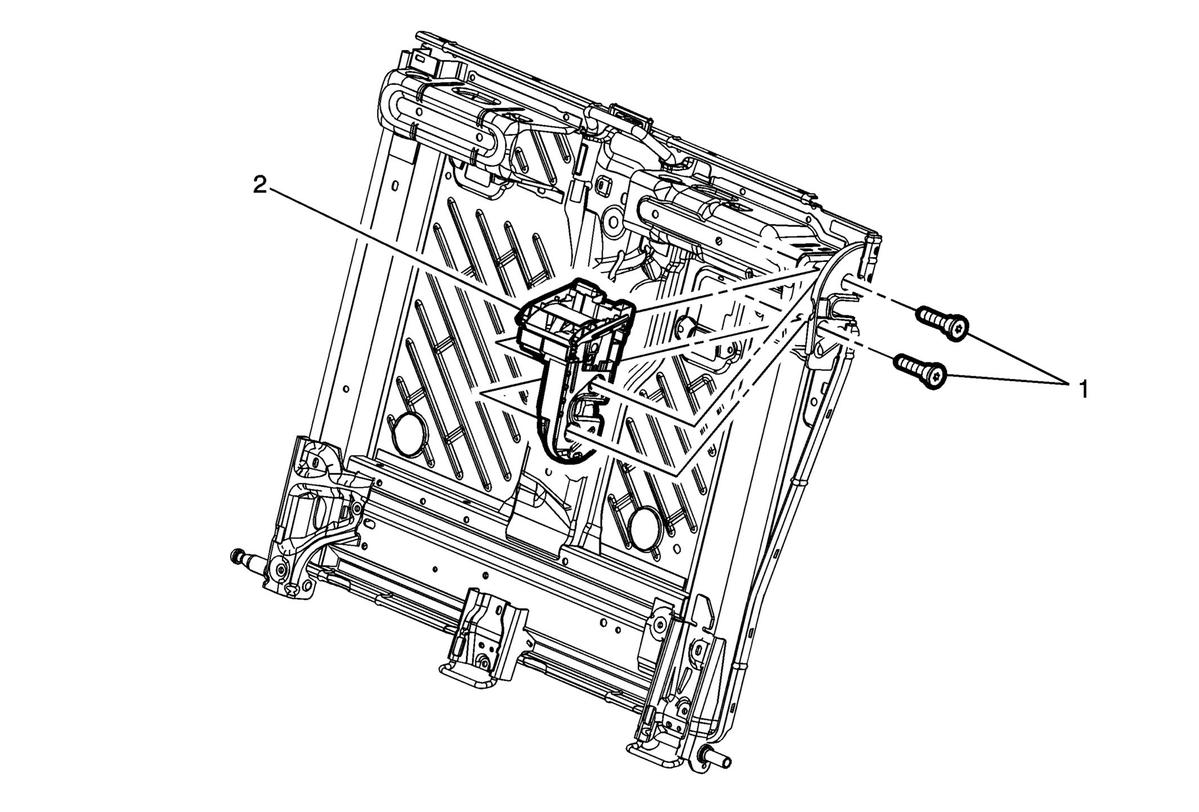

Fig 1: Rear Seat Latch
GM2789278Courtesy of GENERAL MOTORS COMPANY
Rear Seat Latch Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (60%)  or, Rear Seat Back Cushion Removal and Installation (40%) .
  2. Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40%)  or Rear Seat Back Cushion Cover and Pad Replacement (60%) .
1 Rear Seat Latch Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
45 (33 lb ft)
2 Rear Seat Latch
