Radiator Grille Emblem/Nameplate Replacement (Buick)
Radiator Grille Emblem/Nameplate Replacement (Buick)

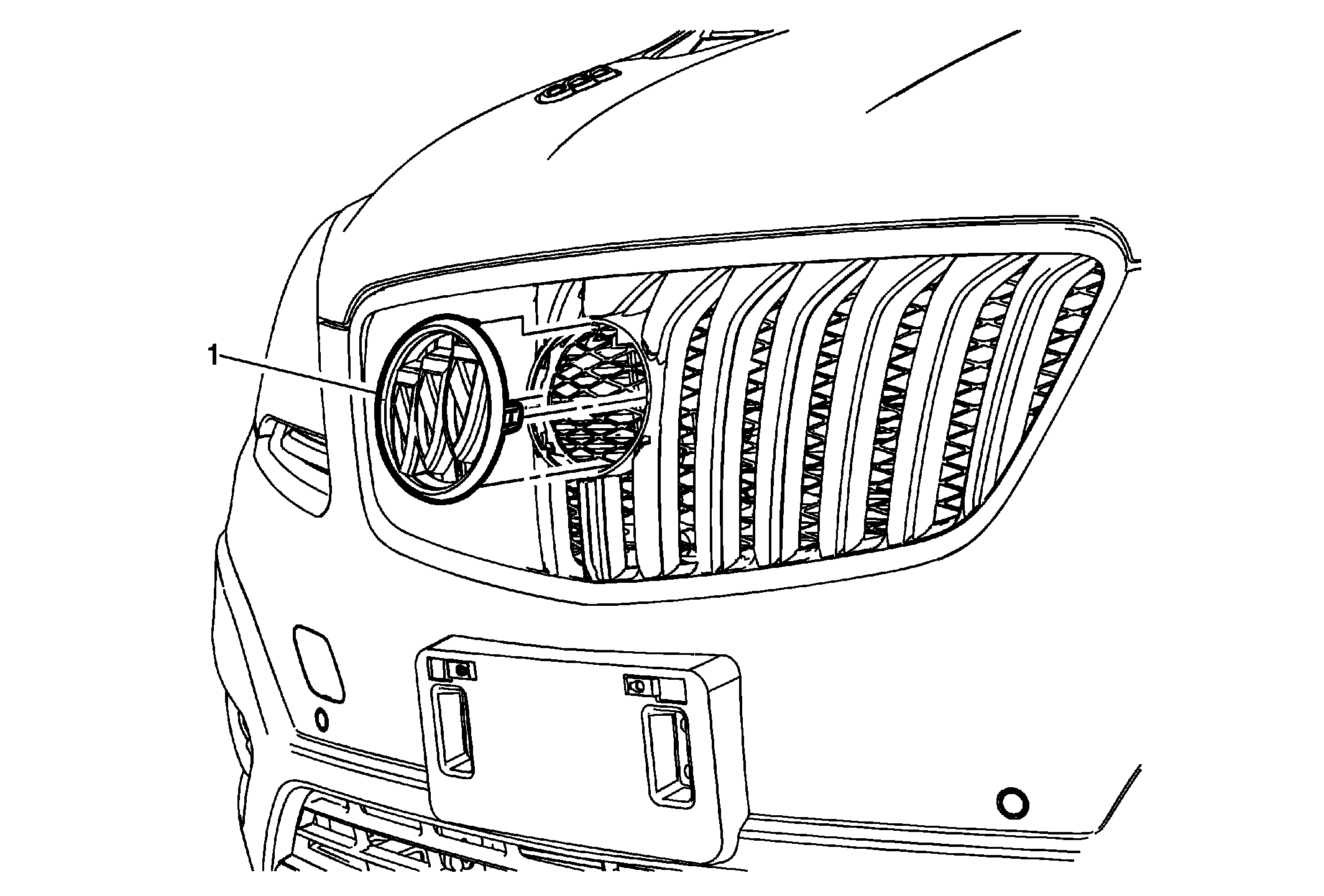

Fig 1: Radiator Grille Emblem/Nameplate
Courtesy of GENERAL MOTORS COMPANY
Radiator Grille Emblem/Nameplate Replacement (Buick)
Callout
Component Name
1
Radiator Grille Emblem
Procedure
Open the hood.
Using a suitable trim tool, release the 4 tabs on the emblem in order to unlock the emblem from the radiator grille.
Remove the radiator grille emblem from the radiator grille.
