Controls - Headlamp And Front Door Ajar Switches

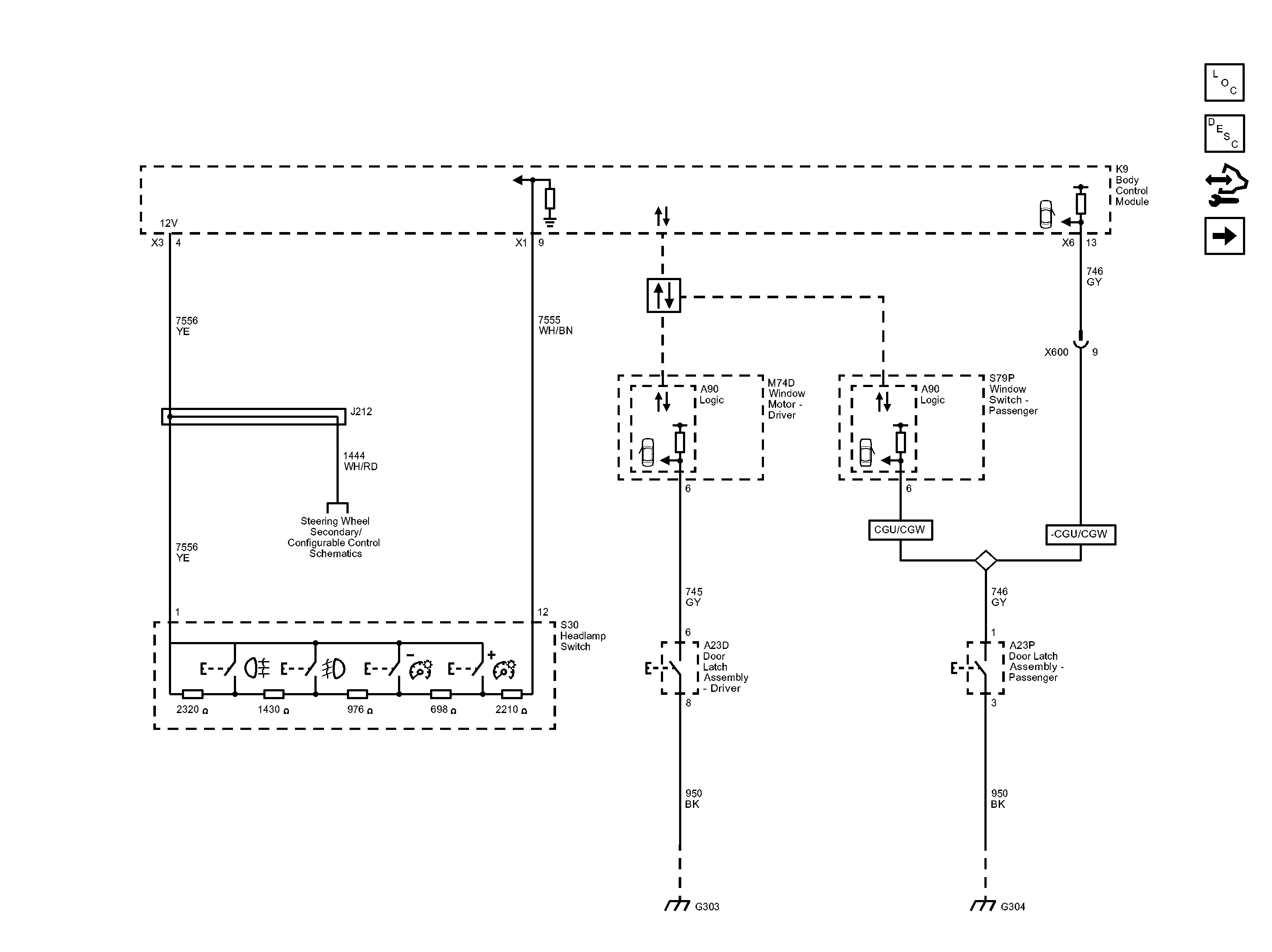

Fig 1: Controls - Headlamp And Front Door Ajar Switches Wiring Schematic

GM2884079

Courtesy of GENERAL MOTORS COMPANY
