Controls And Headlamp, Door Lock And Steering Wheel Switches

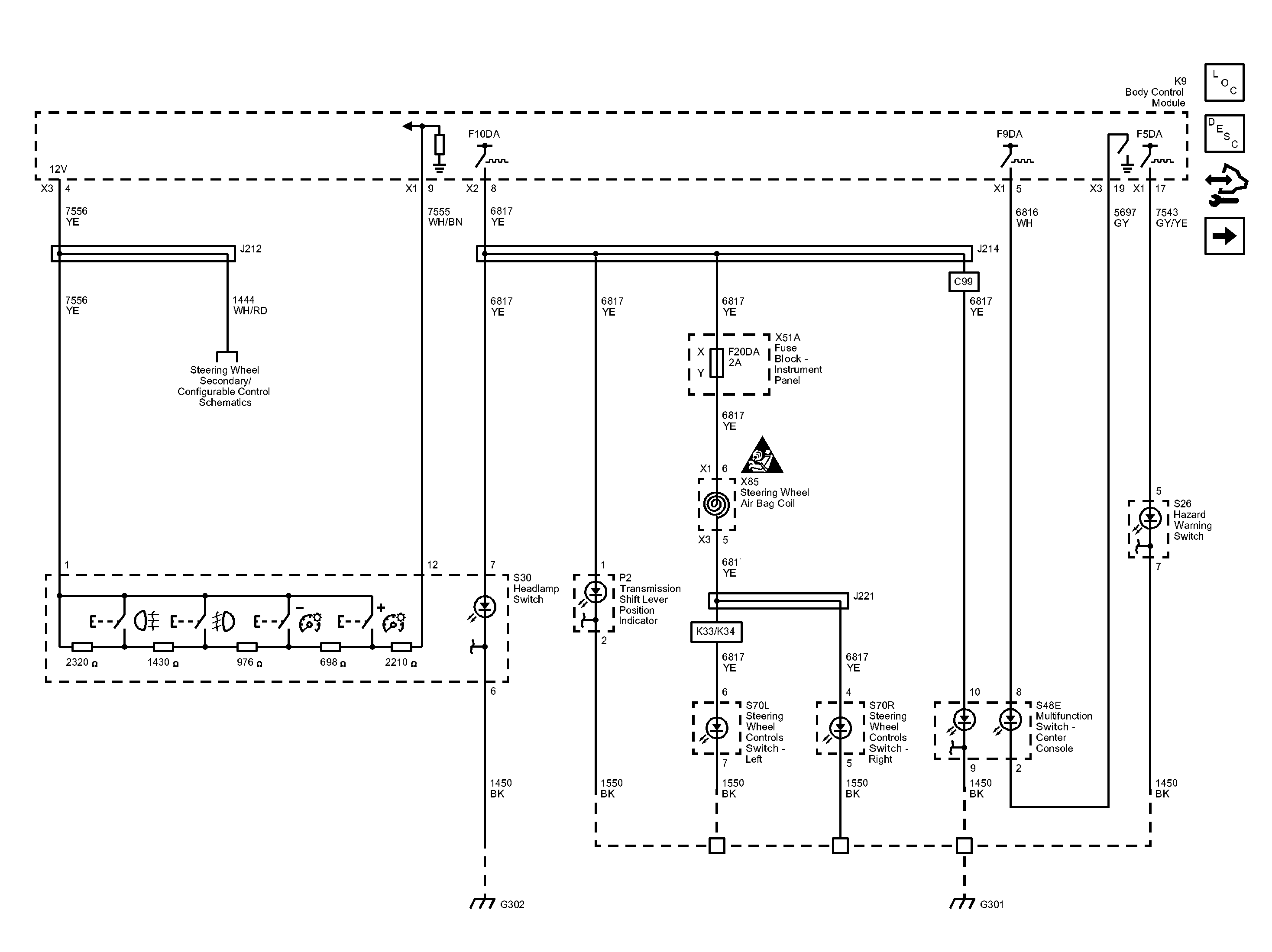

Fig 1: Controls And Headlamp, Door Lock And Steering Wheel Switches Wiring Schematic

GM2884068

Courtesy of GENERAL MOTORS COMPANY
