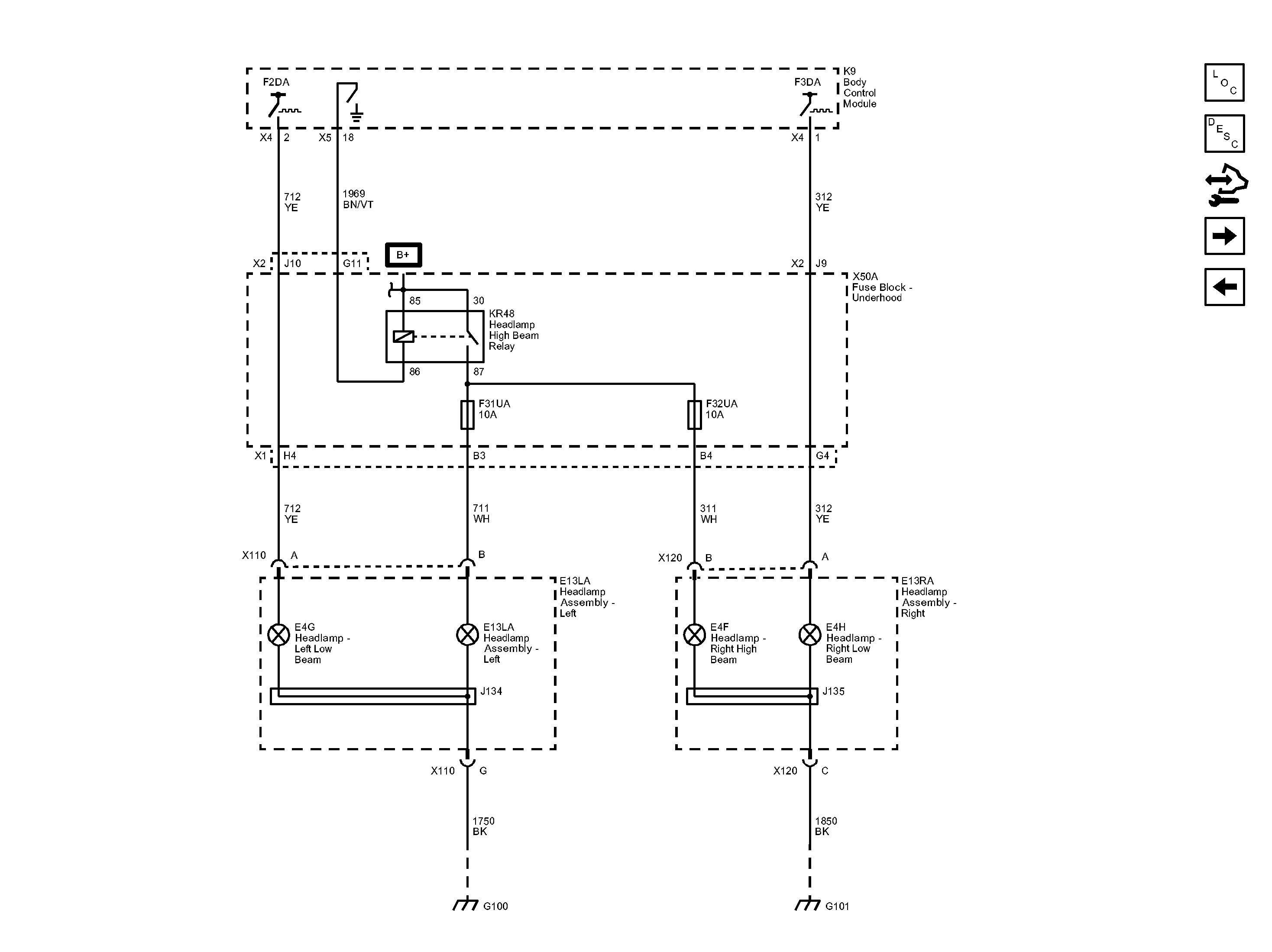

Home >> Chevrolet >> 2013 >> Trax LS, Standard Trans >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting System - Wiring Schematic Diagrams >> Schematic and Routing Diagrams >> Headlights/Daytime Running Lights (DRL) Schematics >> HeadLamps (TR6)
