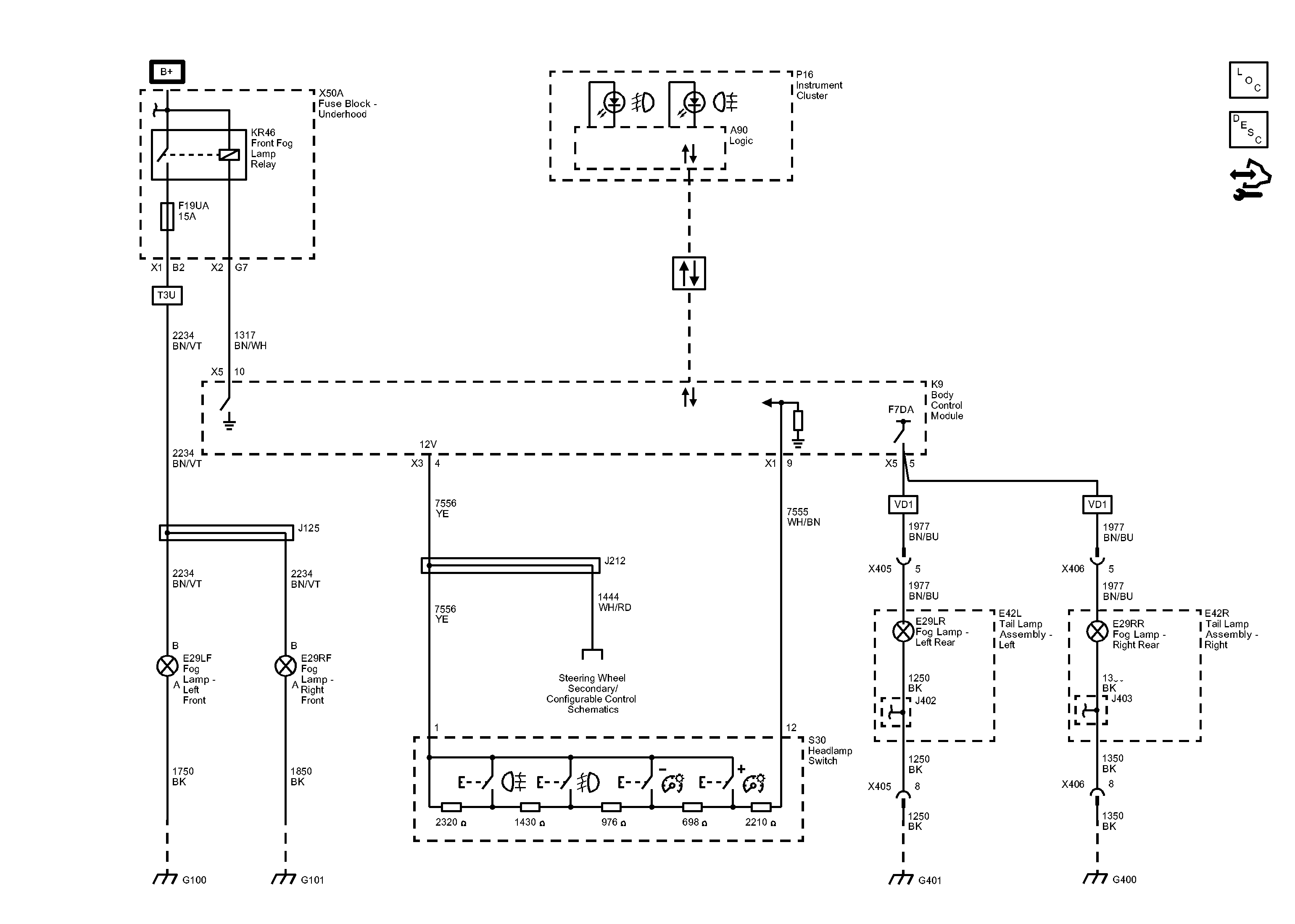

Home >> Chevrolet >> 2013 >> Trax LS, Standard Trans >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting System - Wiring Schematic Diagrams >> Schematic and Routing Diagrams >> Fog Lights Schematics >> Fog Lamps
