Park, Turn, Hazard And Brake Lamps Contorl And Indicators

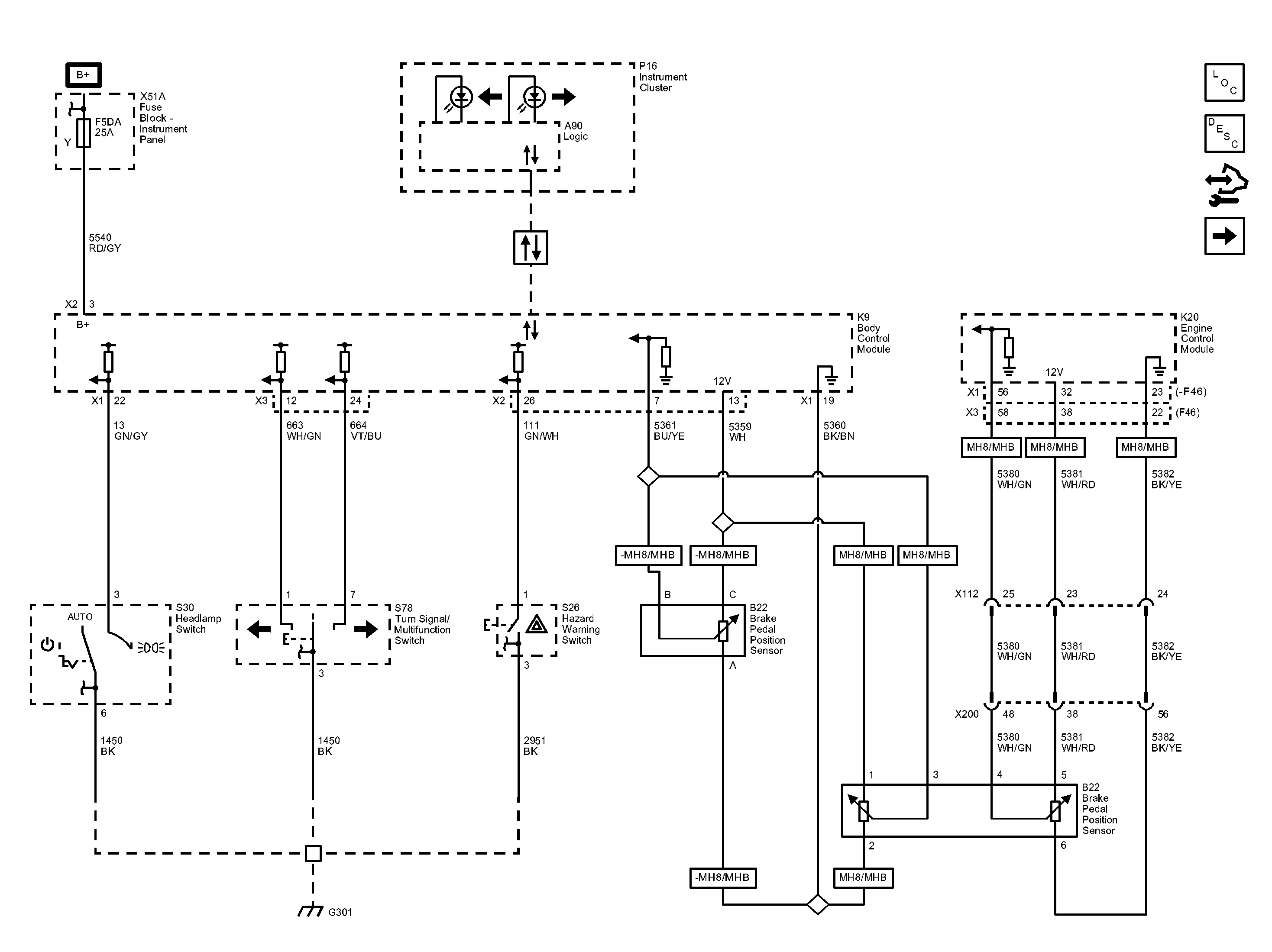

Fig 1: Park, Turn, Hazard And Brake Lamps Contorl And Indicators Wiring Schematic

GM2882688

Courtesy of GENERAL MOTORS COMPANY
