Headlamp Bulb Replacement - Right Side (High Beam)

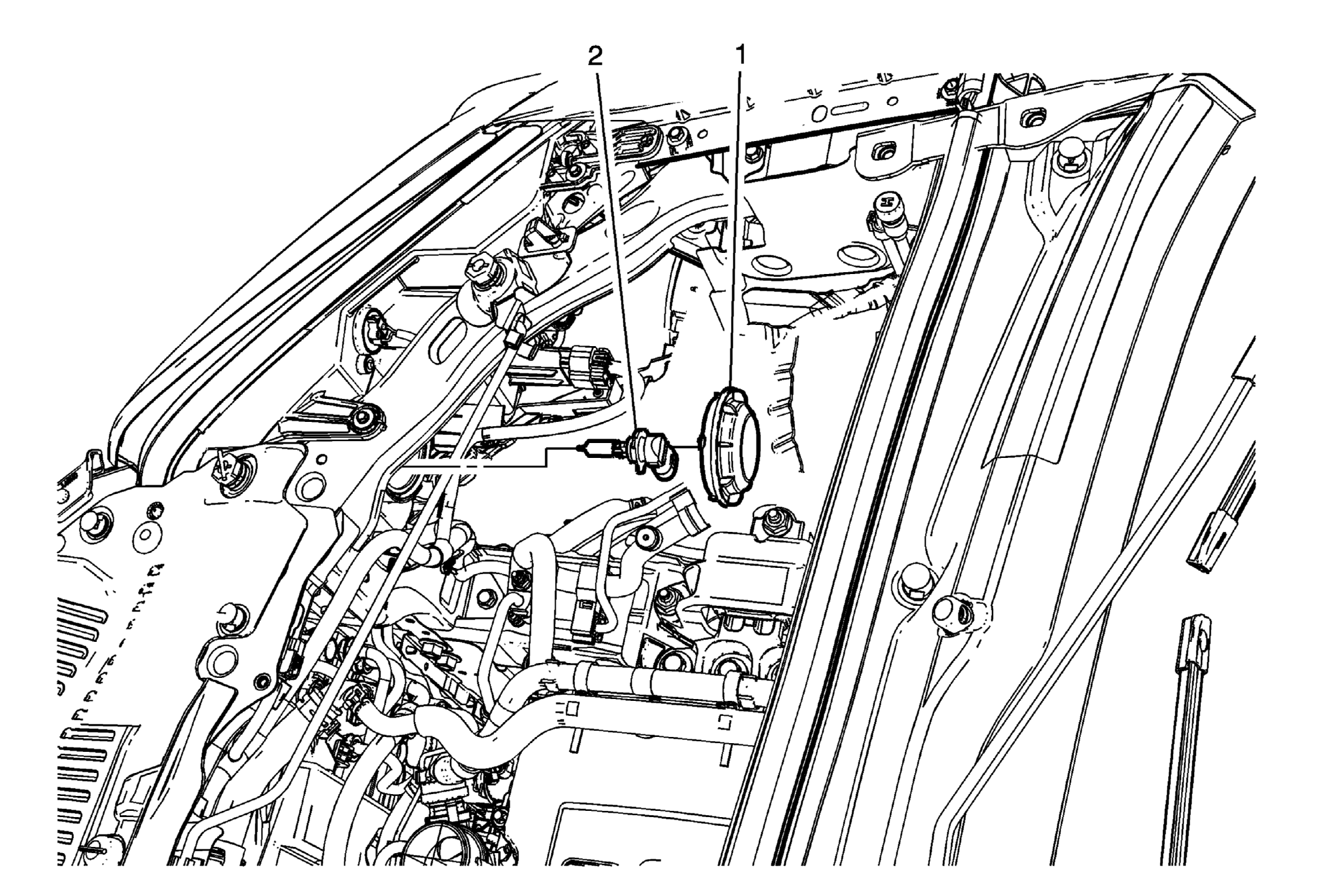

Fig 1: Headlamp Bulb - Right Side (High Beam)

Courtesy of GENERAL MOTORS COMPANY

Headlamp Bulb Replacement - Right Side (High Beam)

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning .
1	Headlamp Bulb Access Cover Procedure  Rotate the cover counter-clockwise and remove.
2	Headlamp Bulb Disconnect the electrical connector prior to removing the headlamp bulb from the headlamp housing. Rotate the headlamp bulb counter clock-wise, pull the headlamp bulb out from the headlamp housing.
