Air Temperature And Driver Information Center

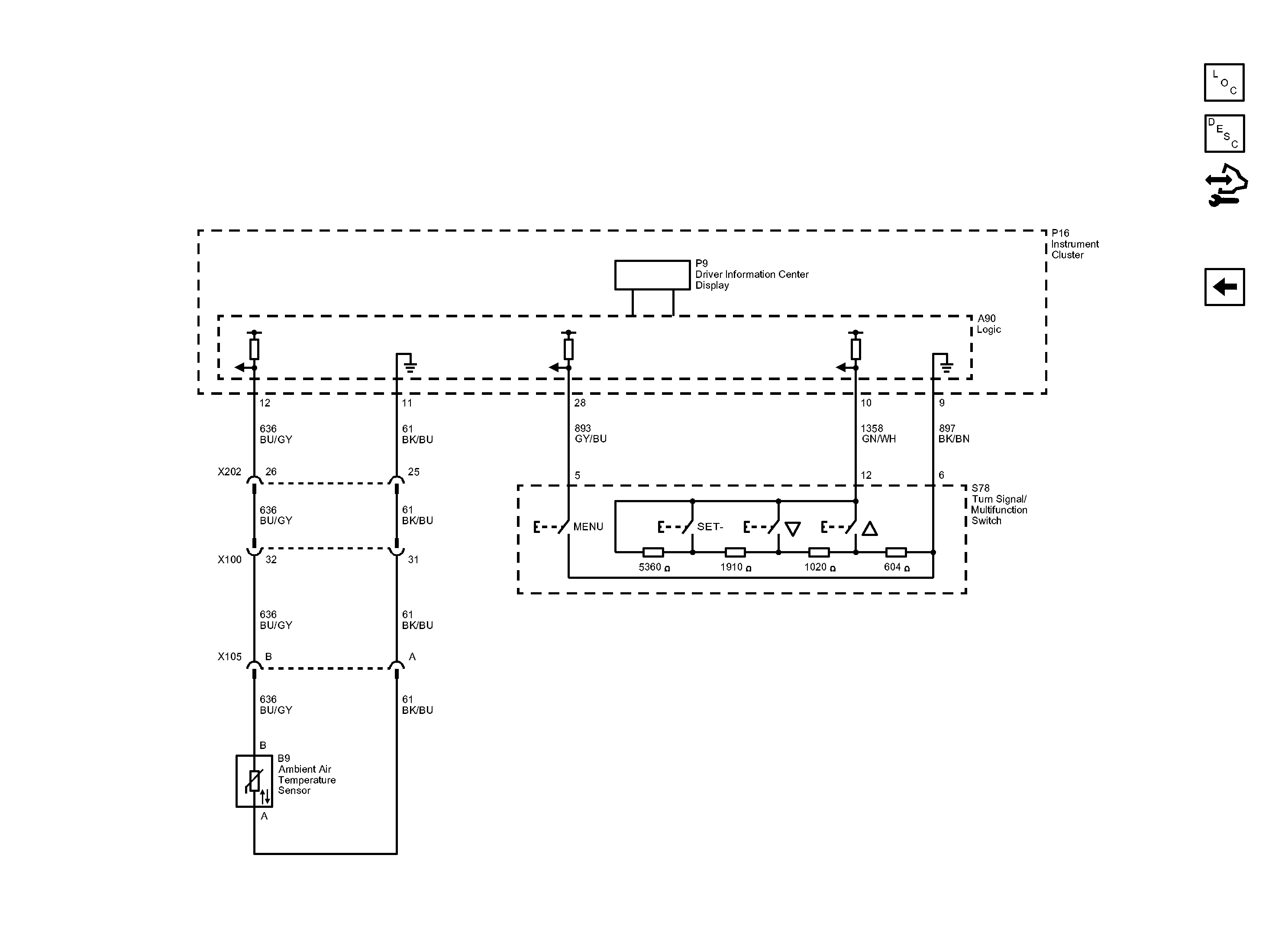

Fig 1: Air Temperature And Driver Information Center Wiring Schematic

GM2873784

Courtesy of GENERAL MOTORS COMPANY
