Driver Information Center And Driver Information Ceter Display

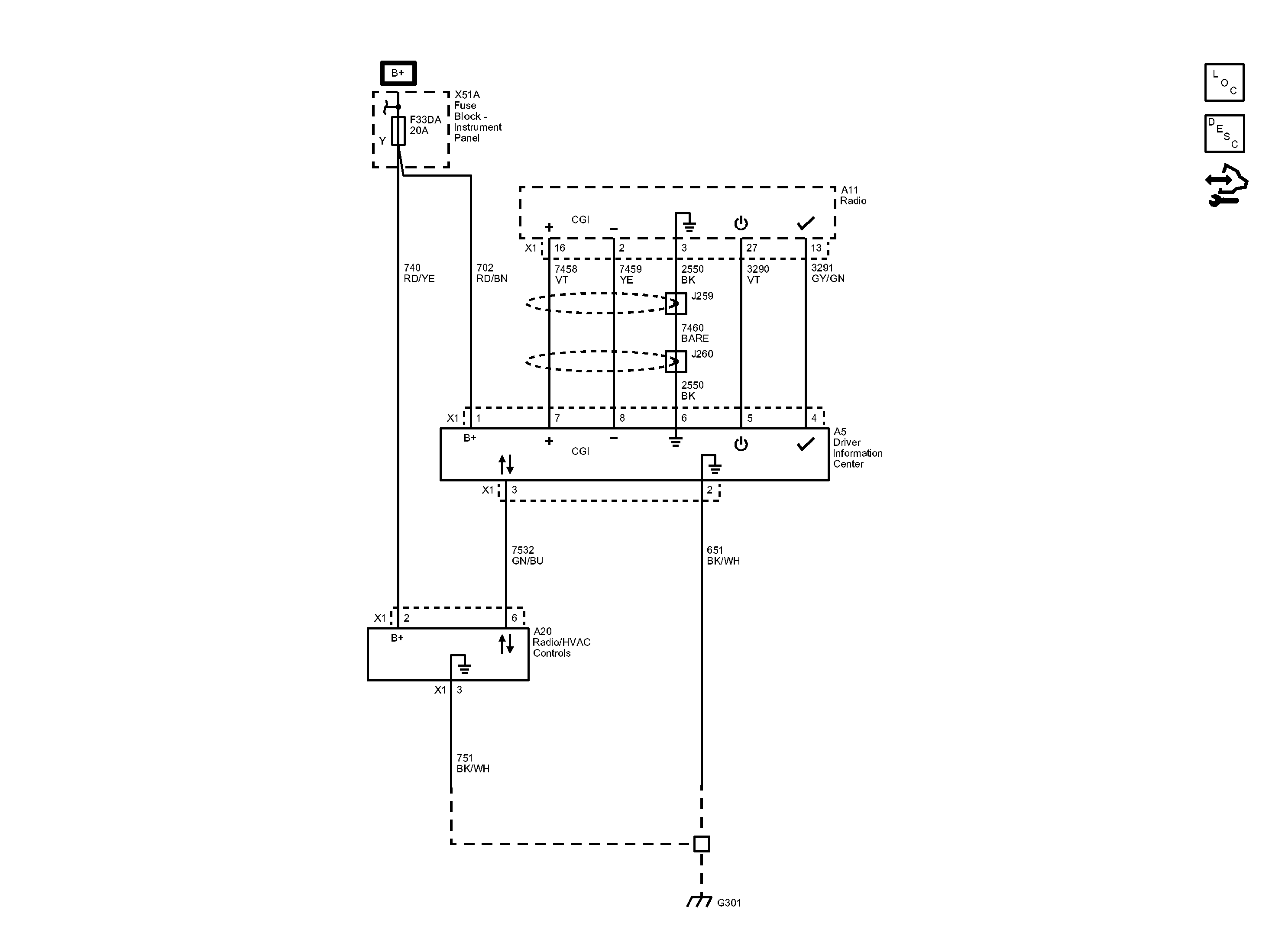

Fig 1: Driver Information Center And Driver Information Ceter Display Wiring Schematic

GM2876158

Courtesy of GENERAL MOTORS COMPANY
