Headlamp Bulb Replacement - Right Side (Low Beam)

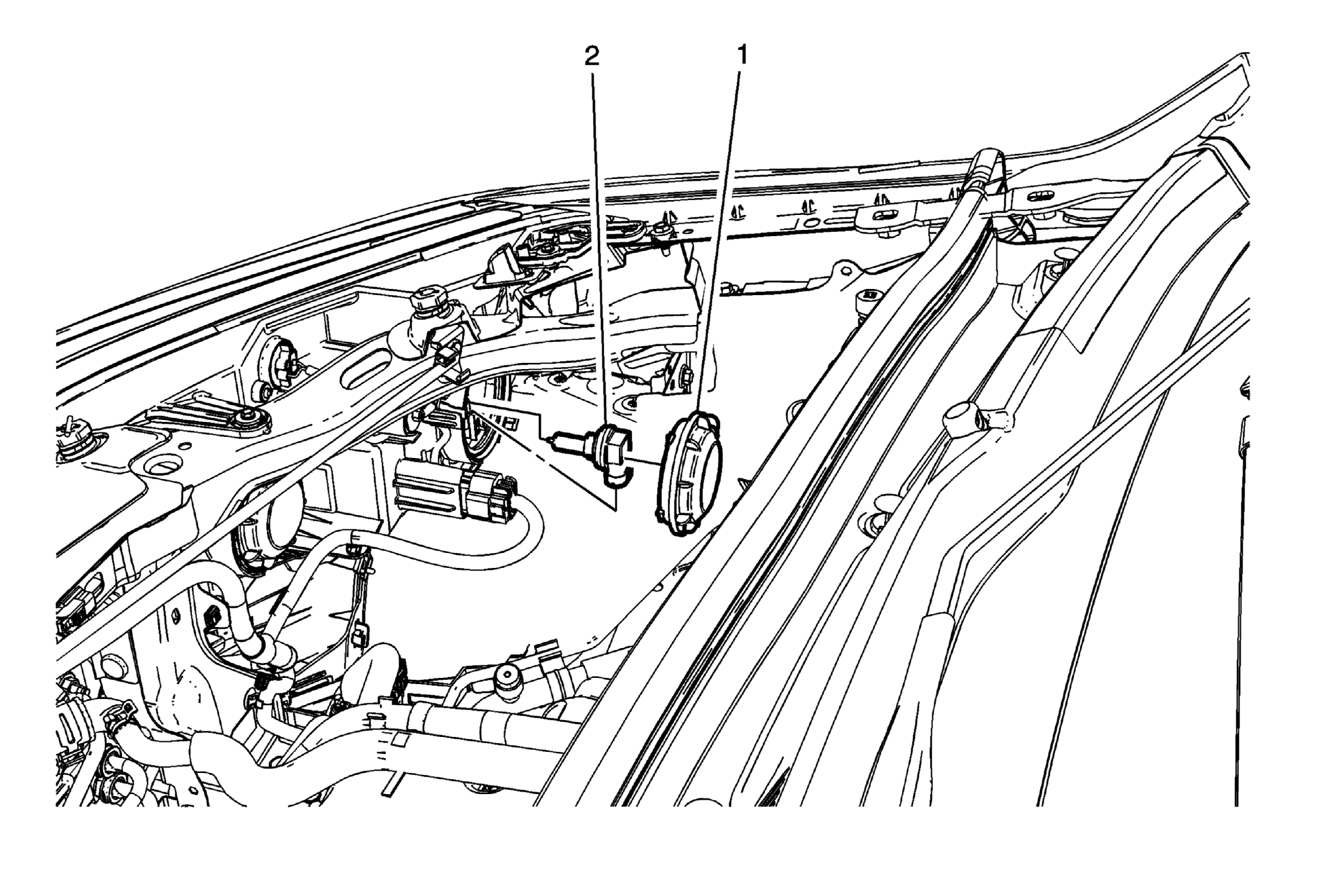

Fig 1: Headlamp Bulb - Right Side (Low Beam)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning .
1	Headlamp Bulb Access Cover Procedure Rotate the cover counter-clockwise and remove.
2	Headlamp Bulb (Low Beam) Procedure Disconnect the electrical connector prior to removing the headlamp bulb from the headlamp assembly. Rotate the headlamp bulb counter clock-wise, pull the headlamp bulb out from the headlamp housing.

Callout

Component Name

WARNING:

Headlamp Bulb Access Cover
Procedure
Rotate the cover counter-clockwise and remove.

Headlamp Bulb (Low Beam)

Procedure

Disconnect the electrical connector prior to removing the headlamp bulb from the headlamp assembly.
Rotate the headlamp bulb counter clock-wise, pull the headlamp bulb out from the headlamp housing.
