Driver Seat Harness Routing (AG3)

Harness Routing Views

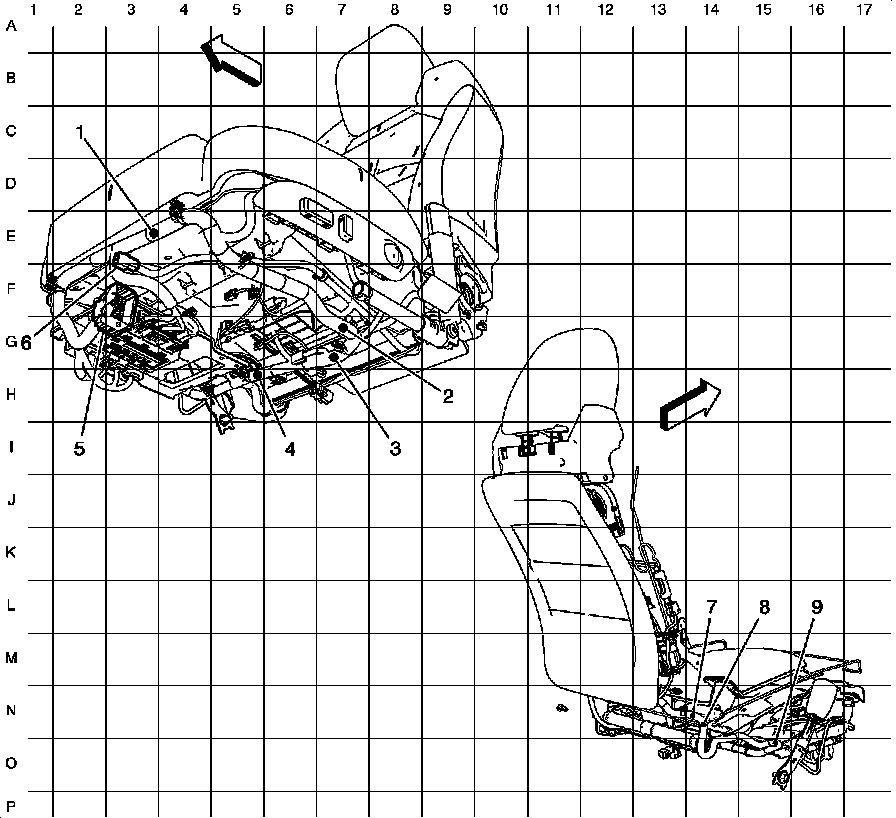

Driver Seat Harness Routing (AG3)





1 - J357 (KA1 or KB6)

2 - J355 (A45)

3 - J353 (KA1)

4 - J354 (AG3)

5 - X315

6 - X333

7 - J358 (KB6)

8 - J359 (KB6)

9 - J350 (AG3)
