Tail Lamp Harness Routing (X88)
Tail Lamp Harness Routing (X88)
Harness Routing Views

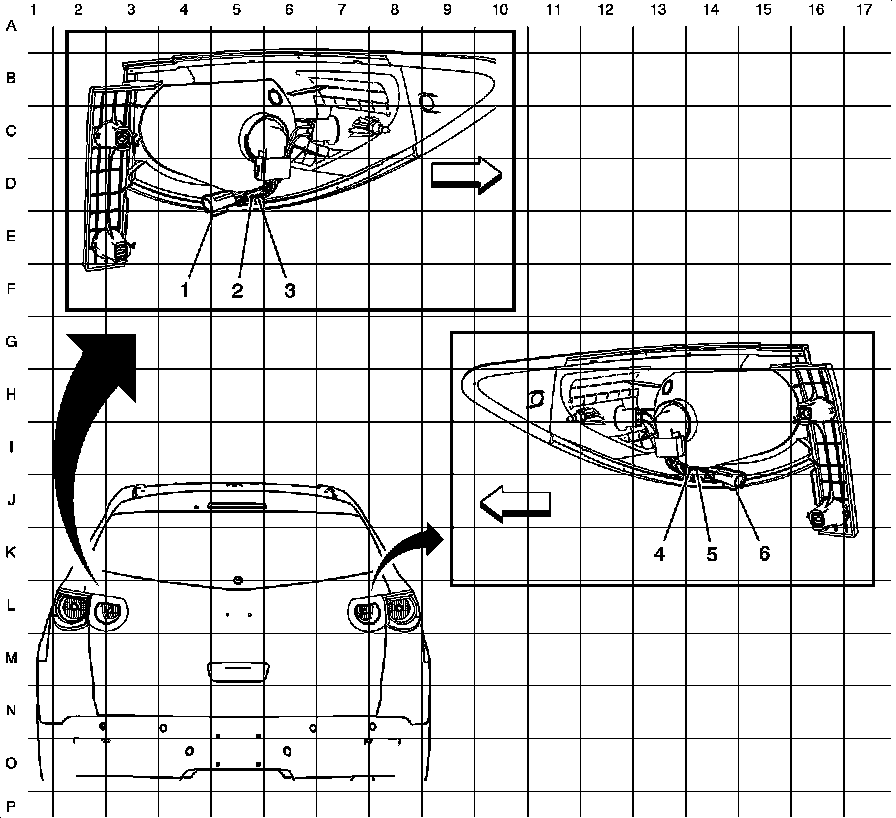

Tail Lamp Harness Routing (X88)
1
- X451
2
- J493
3
- J495
4
- J490
5
- J488
6
- X450
