Passenger Seat Harness Routing

Harness Routing Views

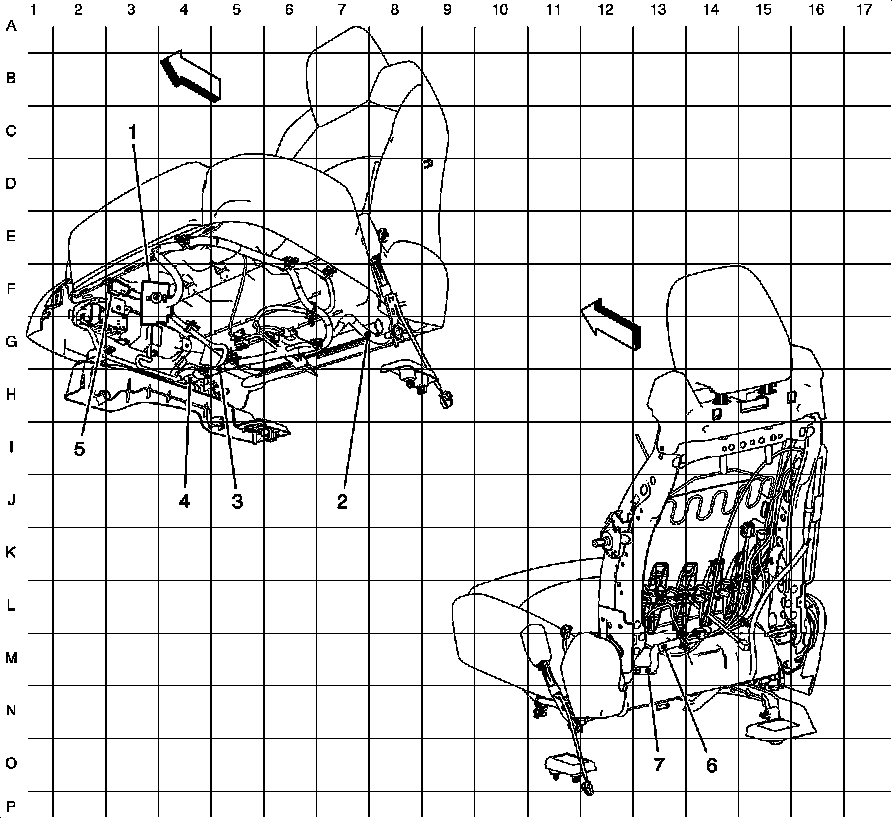

Passenger Seat Harness Routing





1 - X314

2 - J342 (KA1 without A45)

3 - J344 (AAQ or KB6)

4 - J346 (AAQ)

5 - X332

6 - J349 (KB6)

7 - J347 (KB6)
