Instrument Panel Harness Routing- Engine Compartment

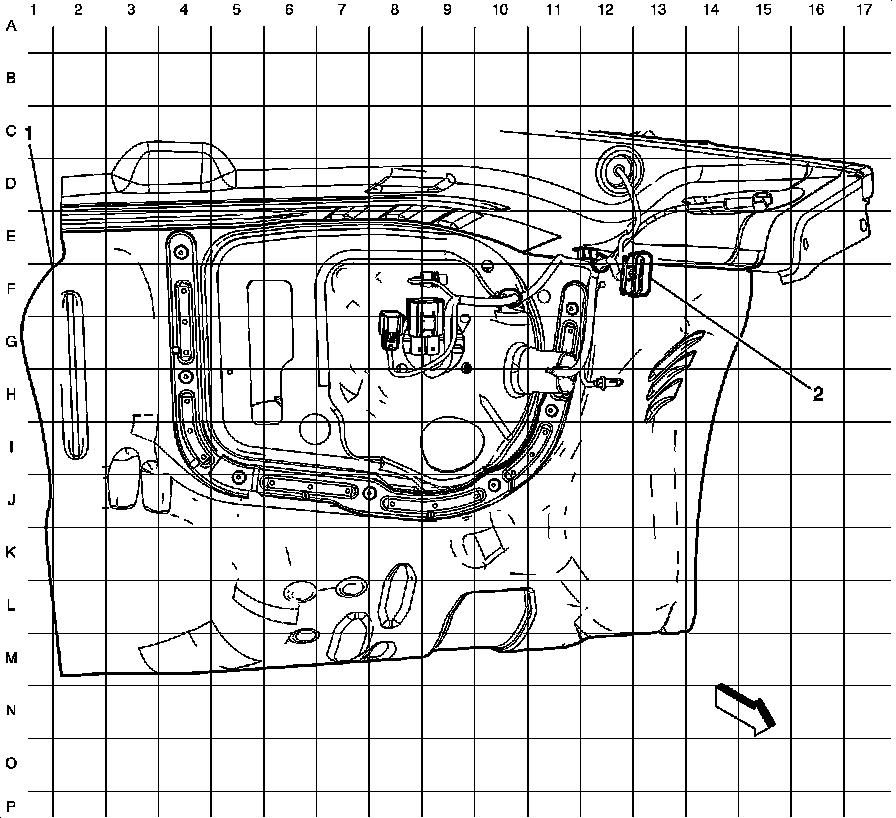

Harness Routing Views

Instrument Panel Harness Routing- Engine Compartment

1 - Dash Panel

2 - X111
