Driver Seat Schematics




Driver Seat Schematics

AG1





AH5

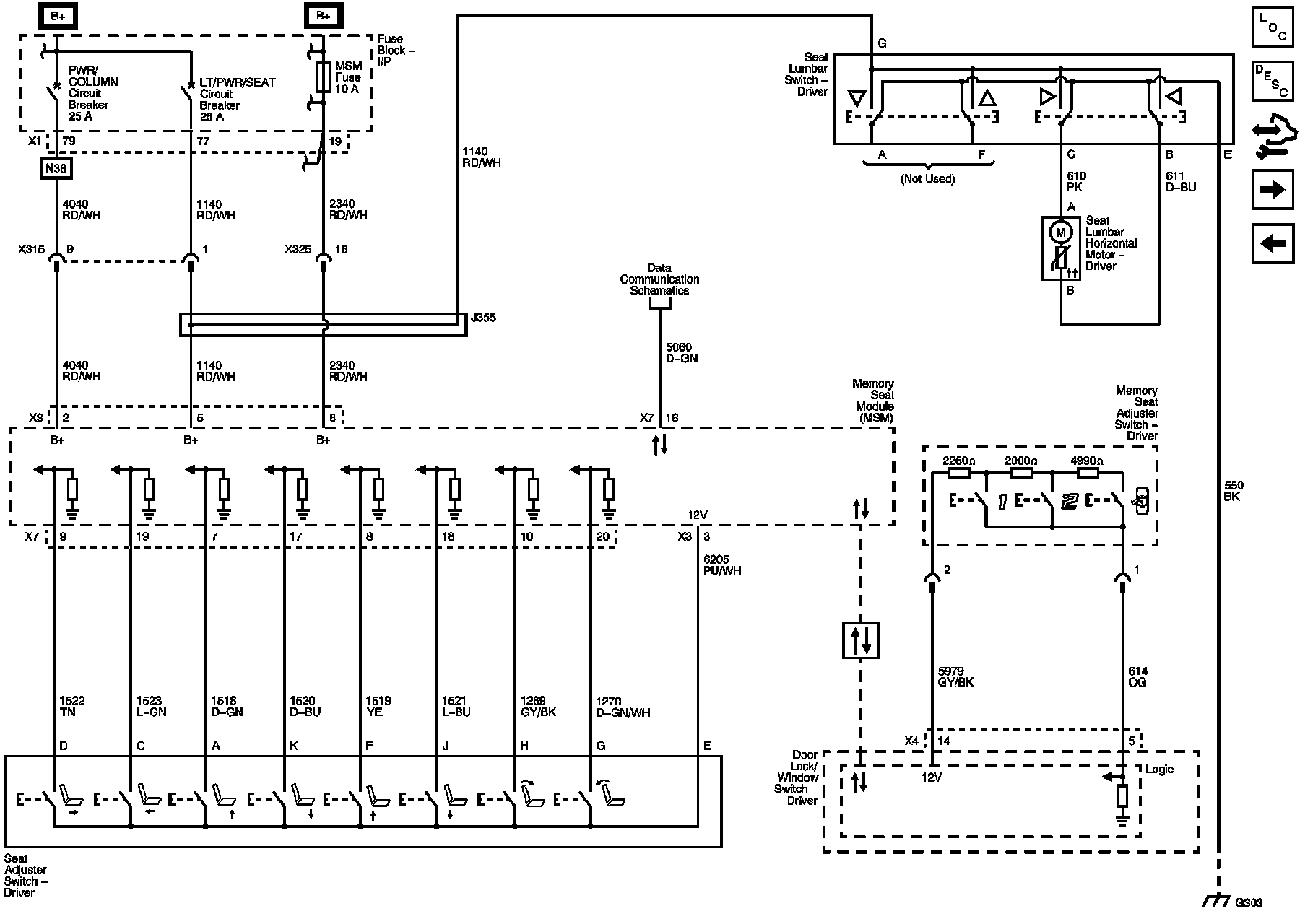

Memory Module Power and Serial Data, and Driver Switches (AG3)






Seat Position Sensors (AG3)






Memory Module Ground and Seat Motors (AG3)
