Seat Fan




Heated/Cooled Seat Schematics

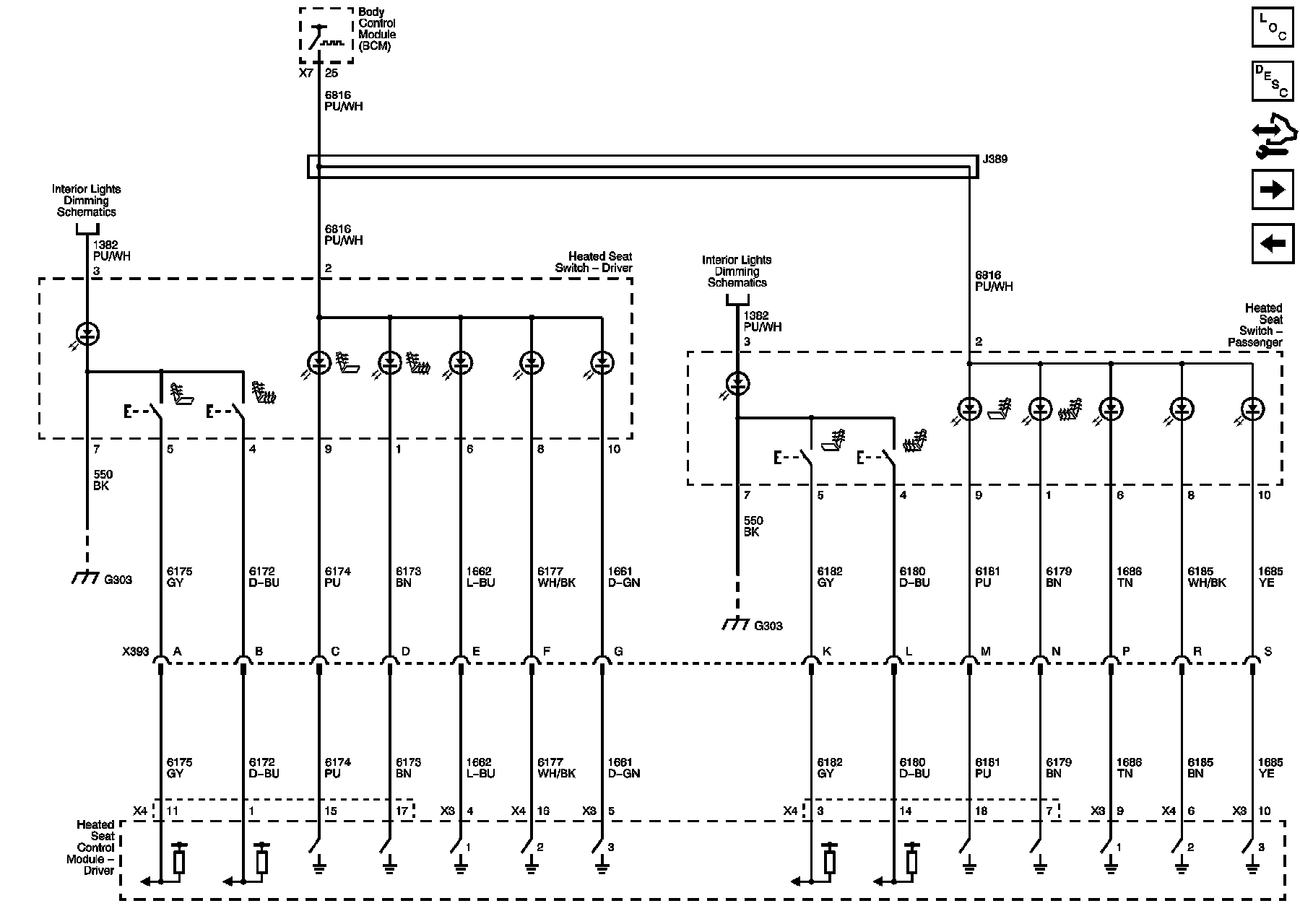

Indicators and Switches

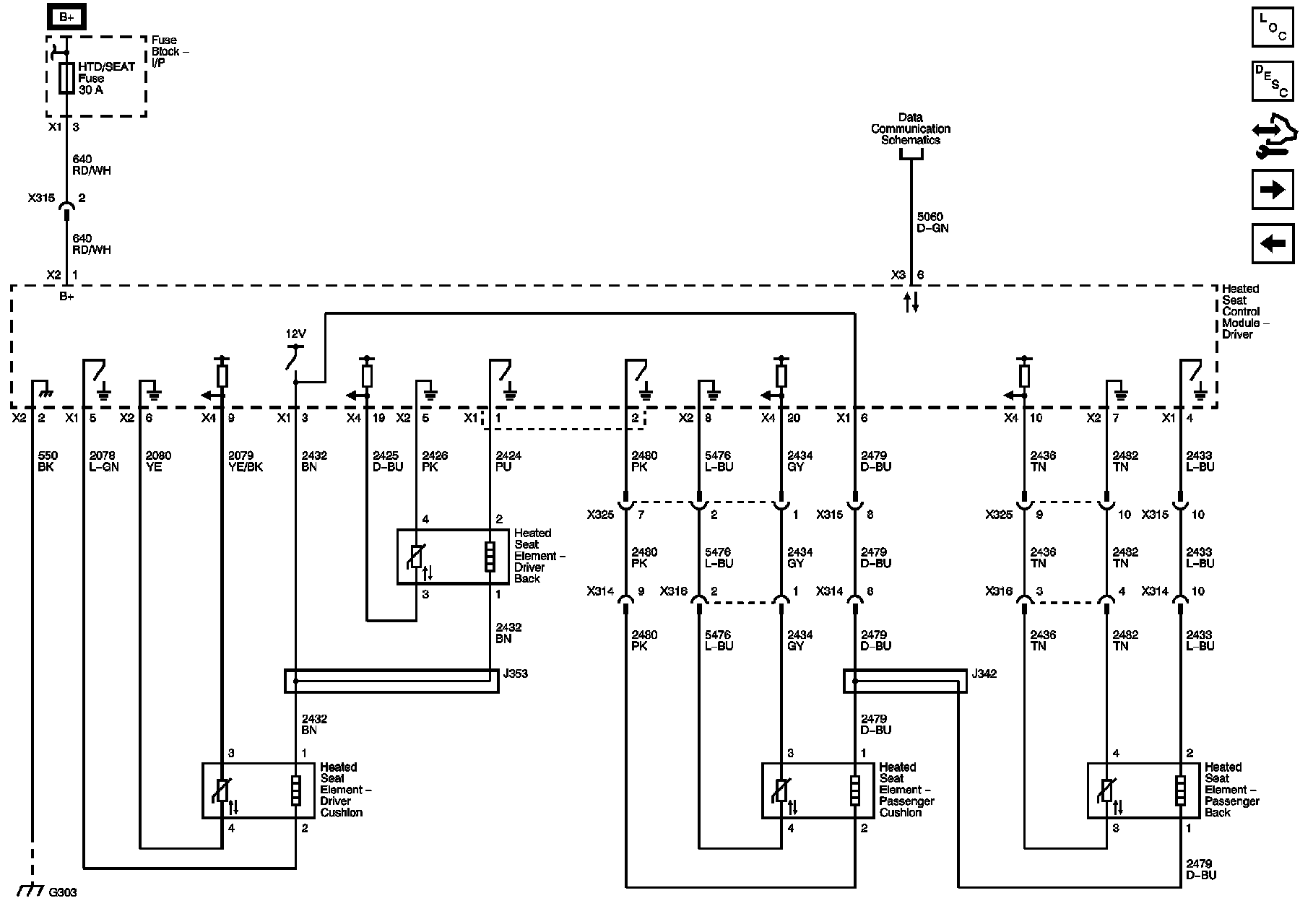

Heating Elements

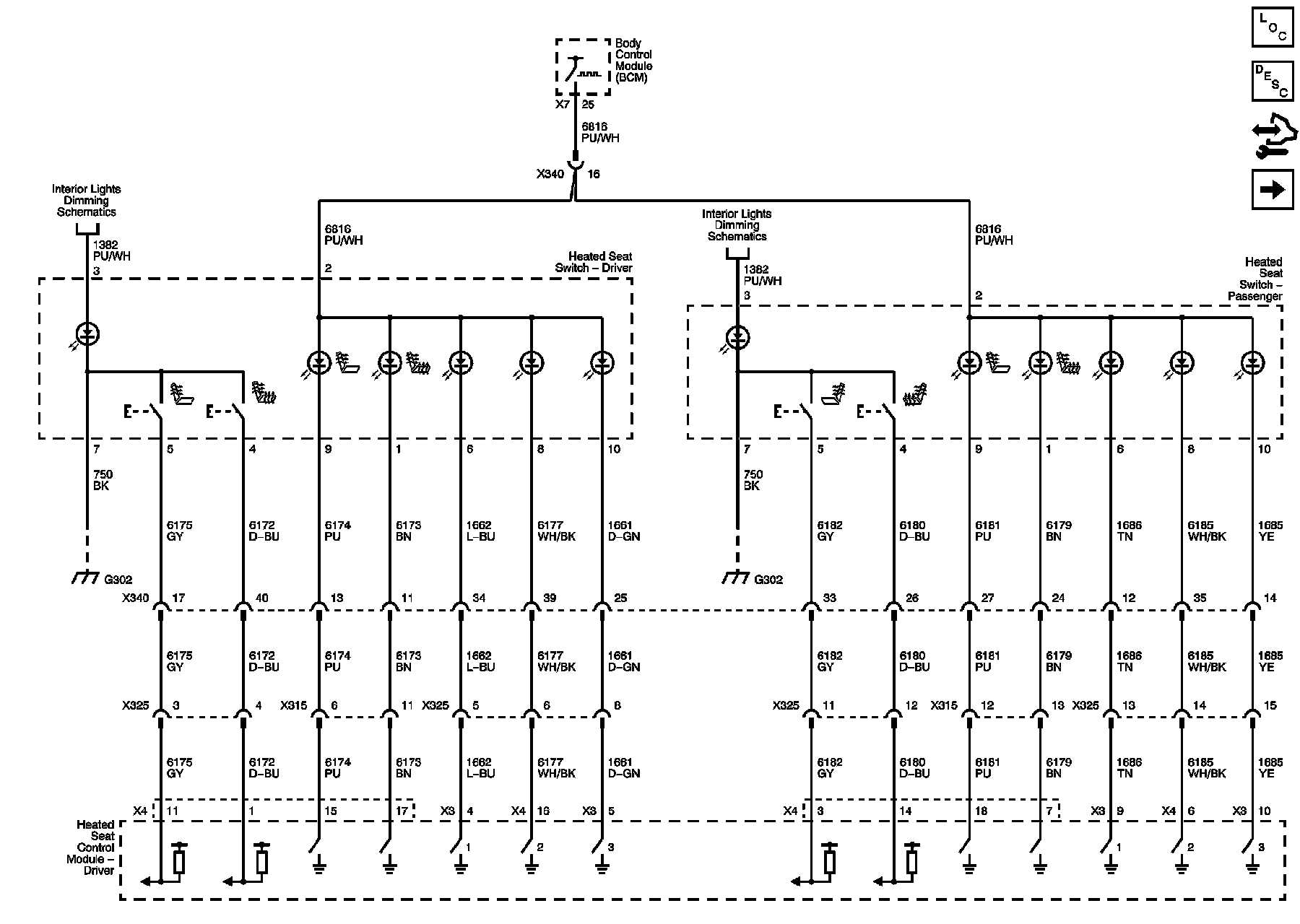

Indicators and Switches (SPO Accessory)






Heating Elements (SPO Accessory)








Heated/Cooled Seat Schematics

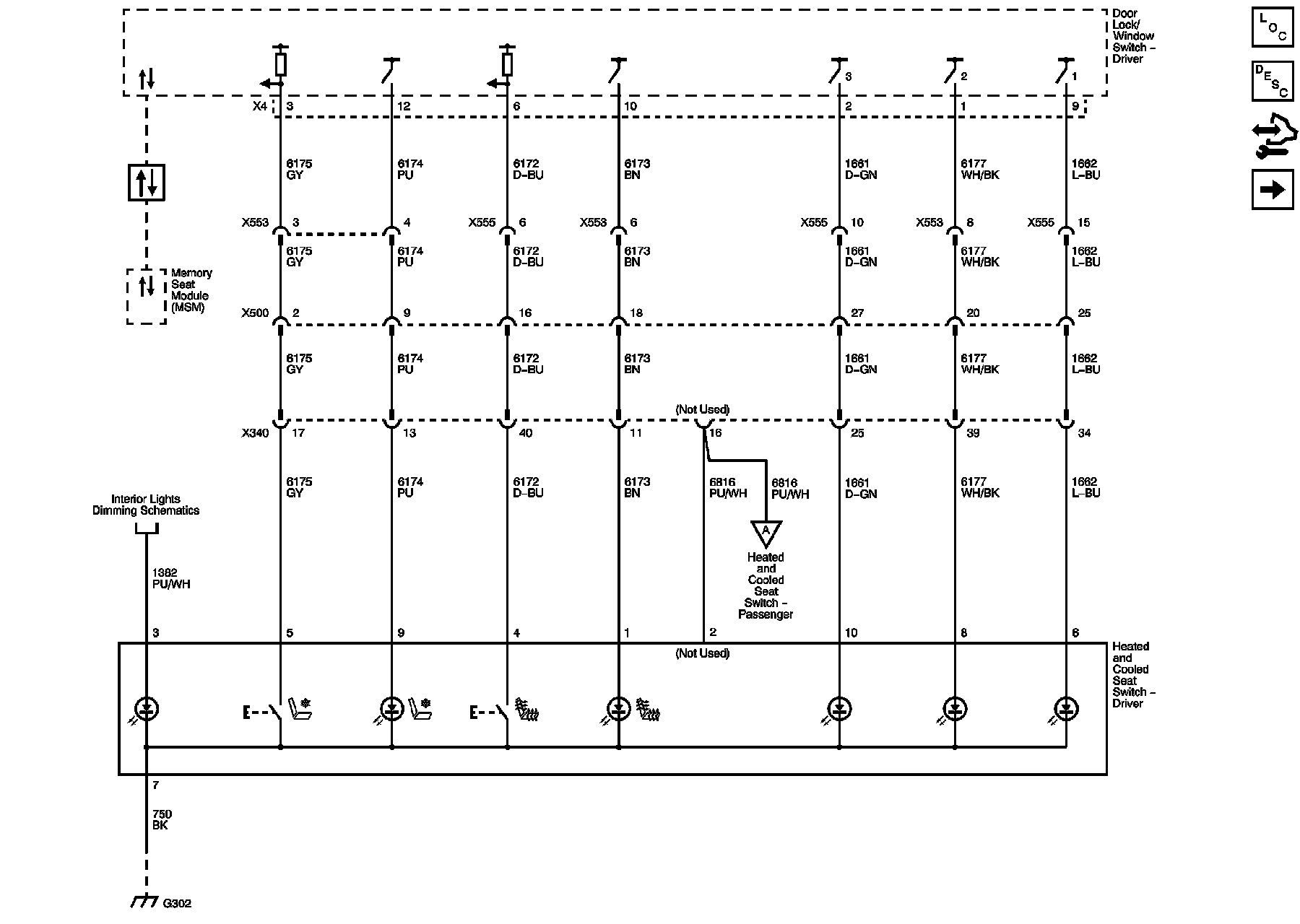

Indicators and Switches

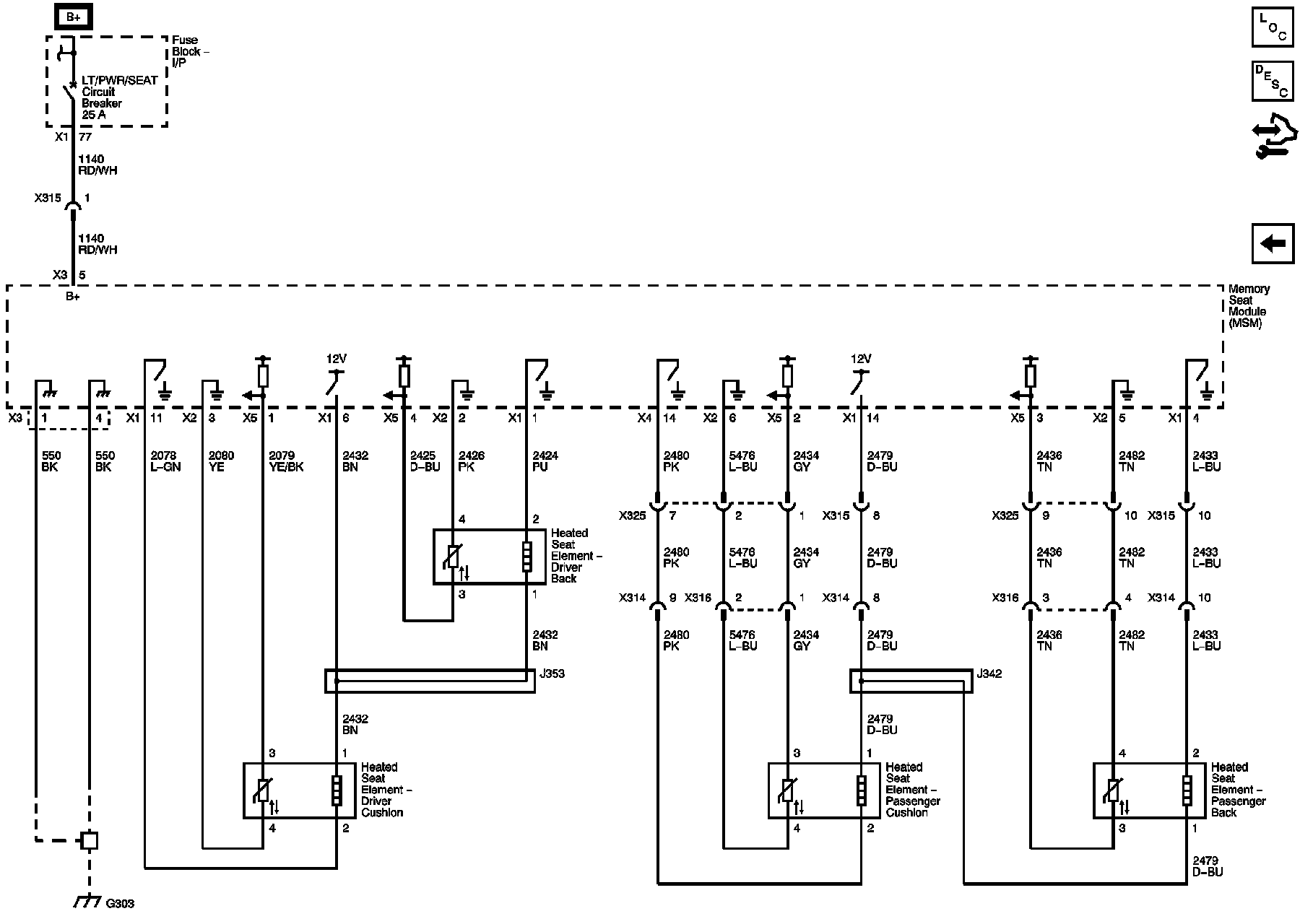

Heating Elements

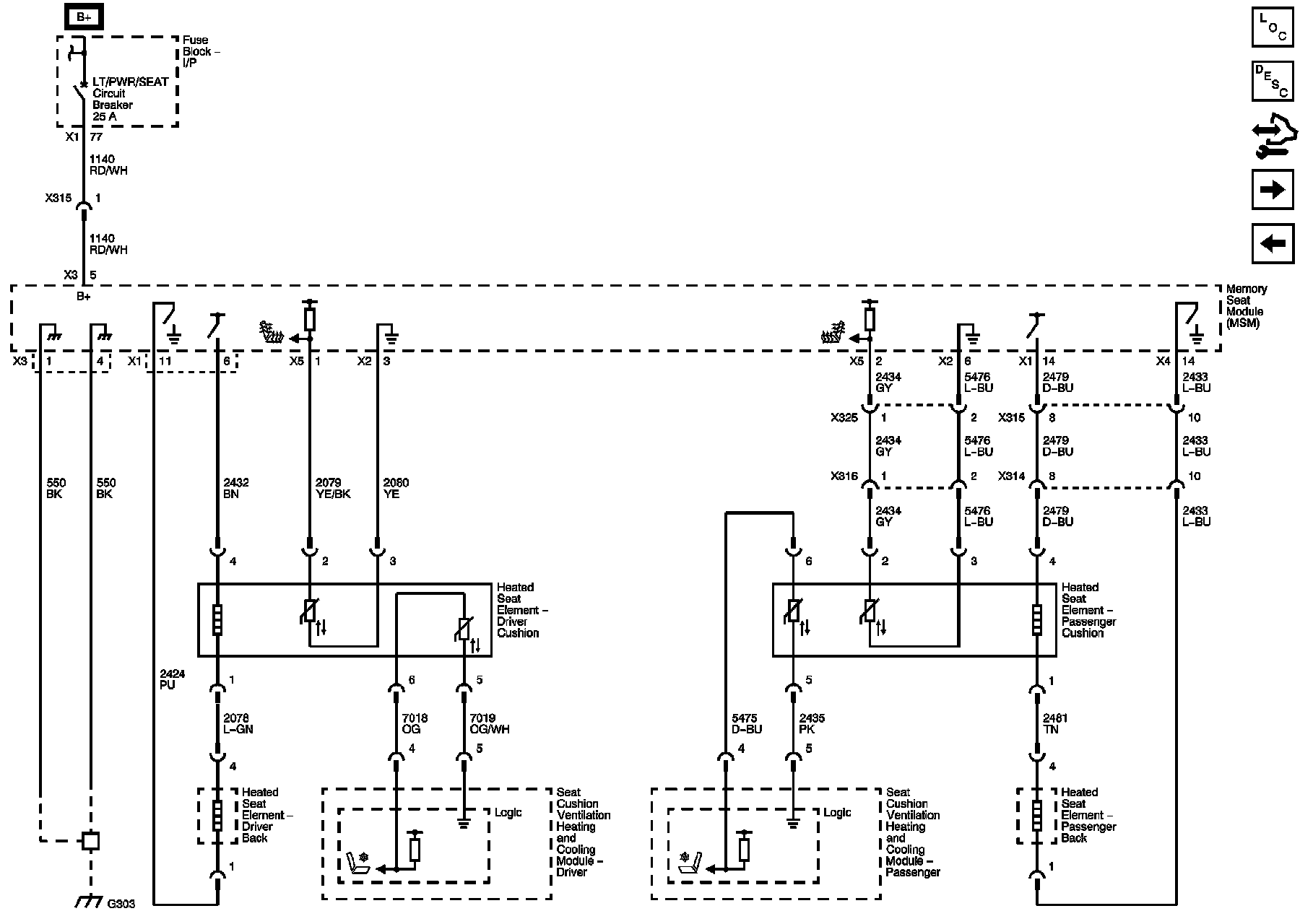

Heated/Cooled Seat Schematics

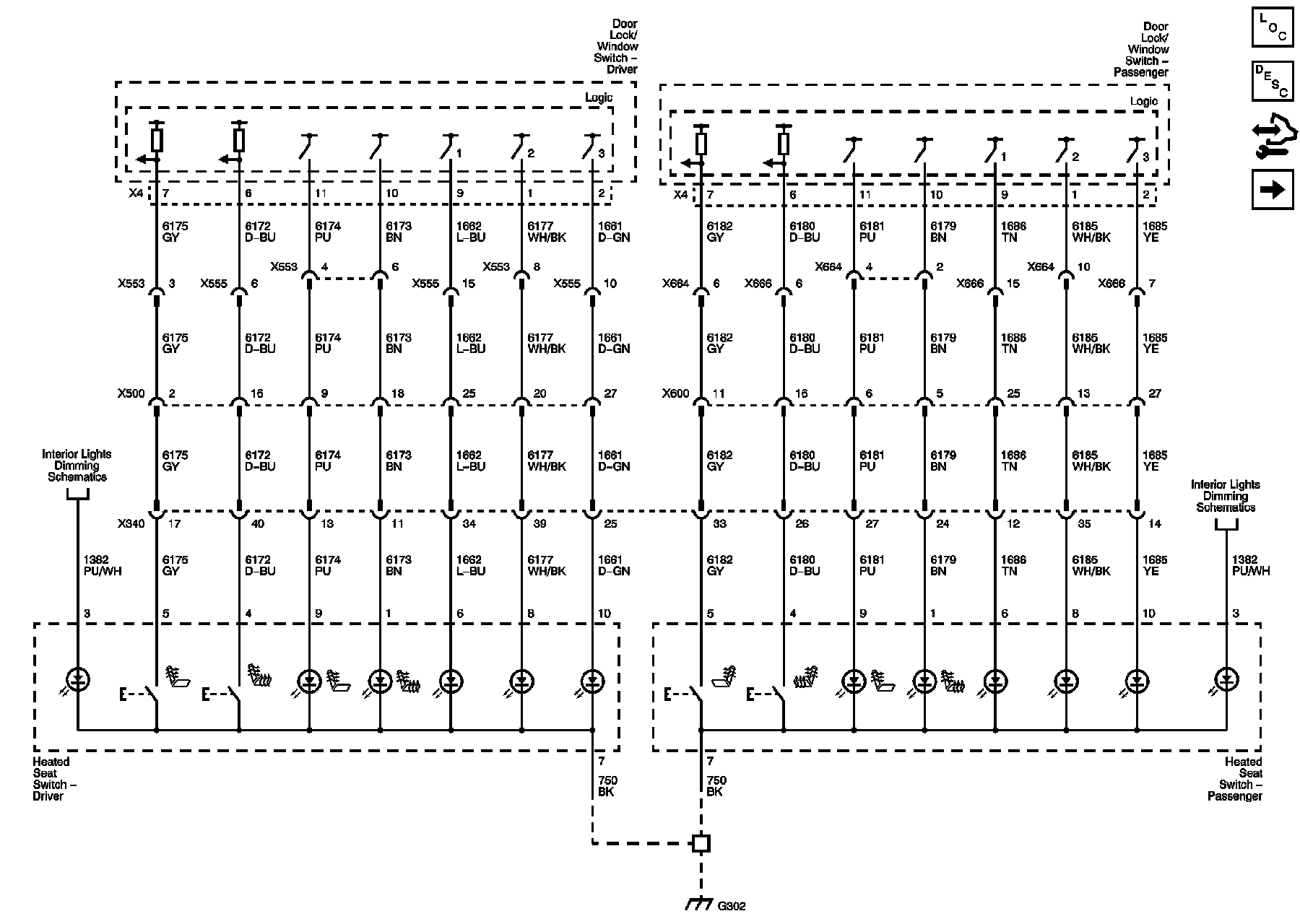

Driver Switch

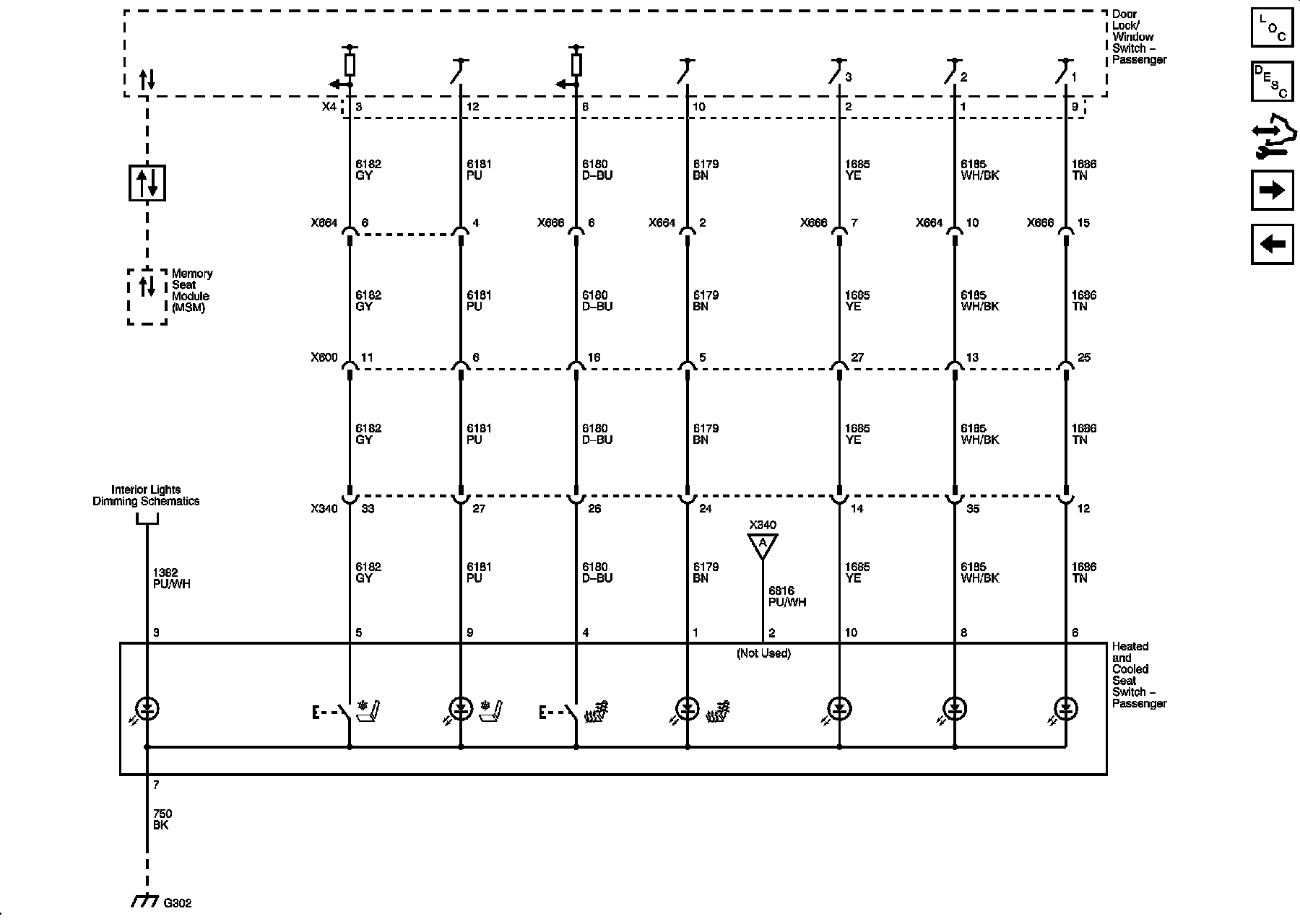

Passenger Switch






Seat Cushion Temperature Sensors and Heating

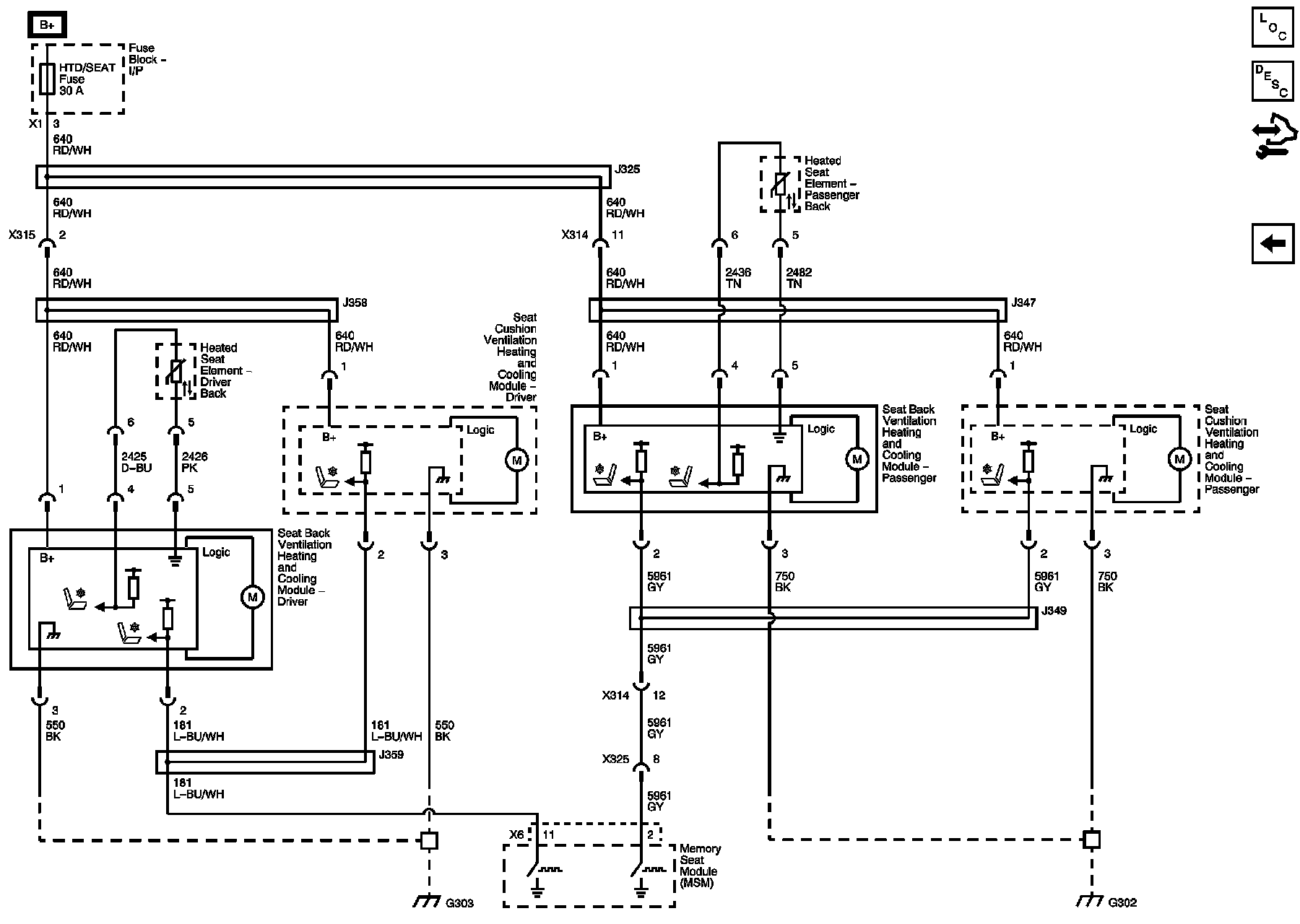

Seat Back Temperature Sensors and Cooling
