Outside Rearview Mirror Schematics
Outside Rearview Mirror Schematics
Outside Rearview Mirror Schematics

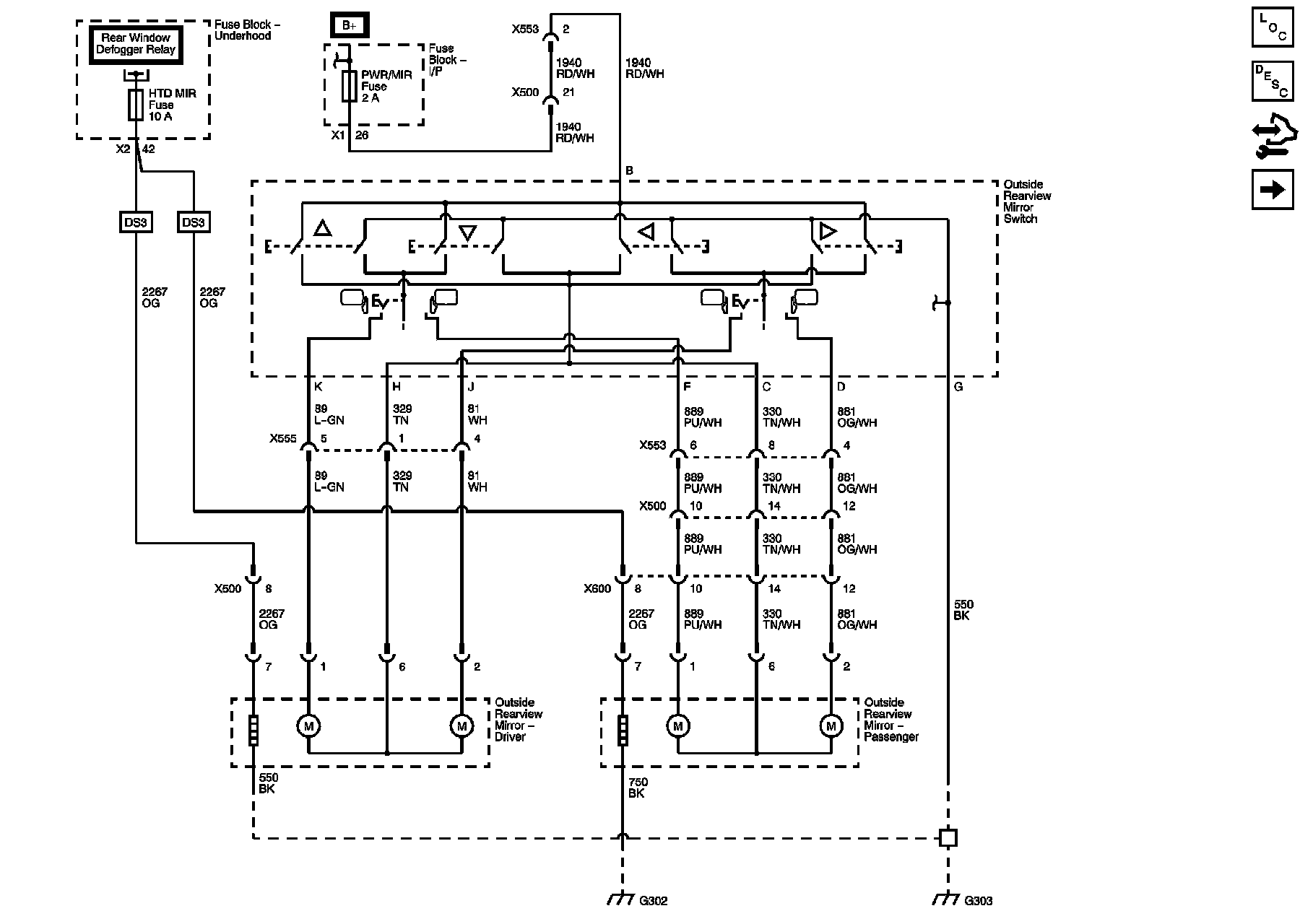

DL6 or DS3

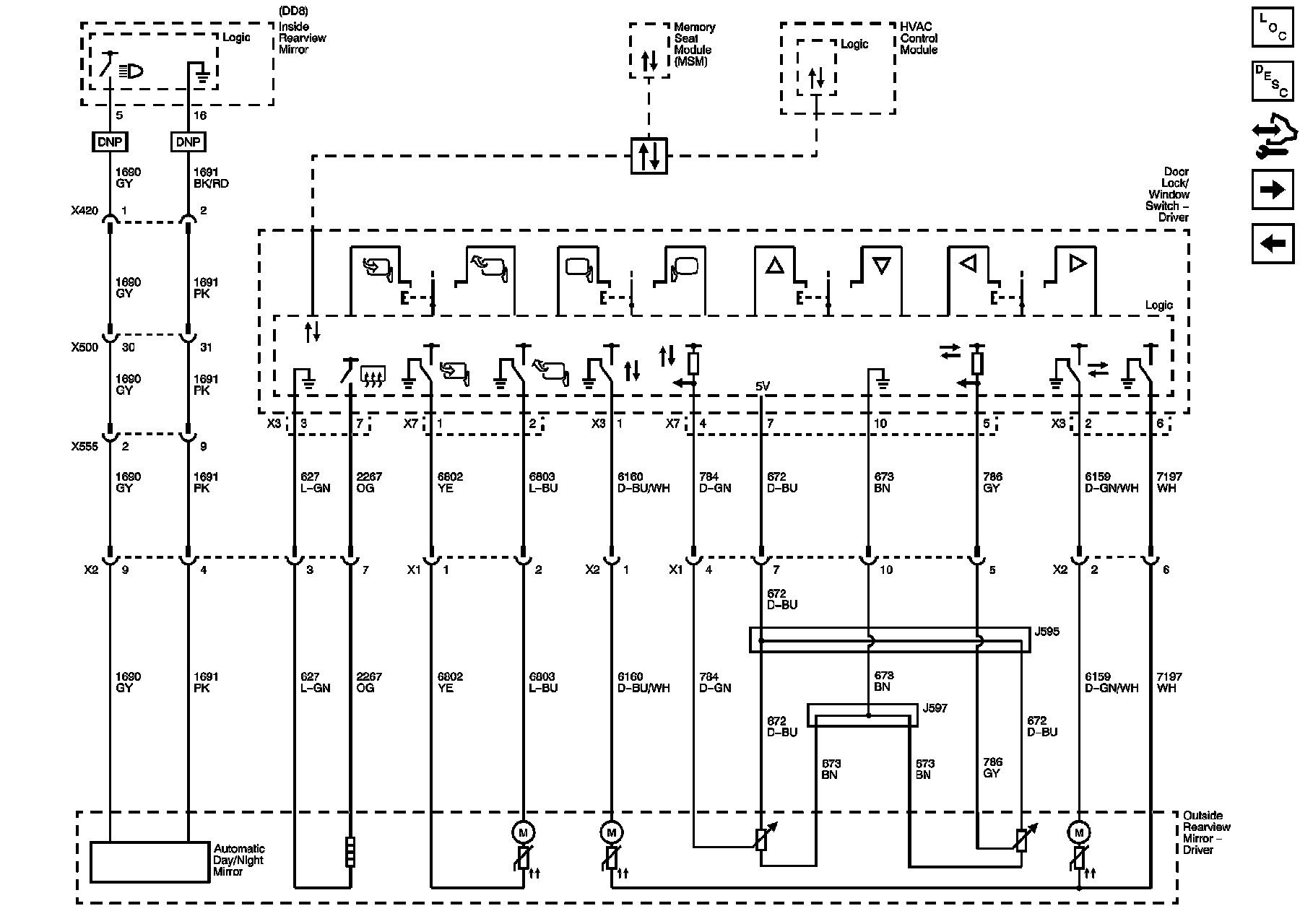

Driver (DNP)

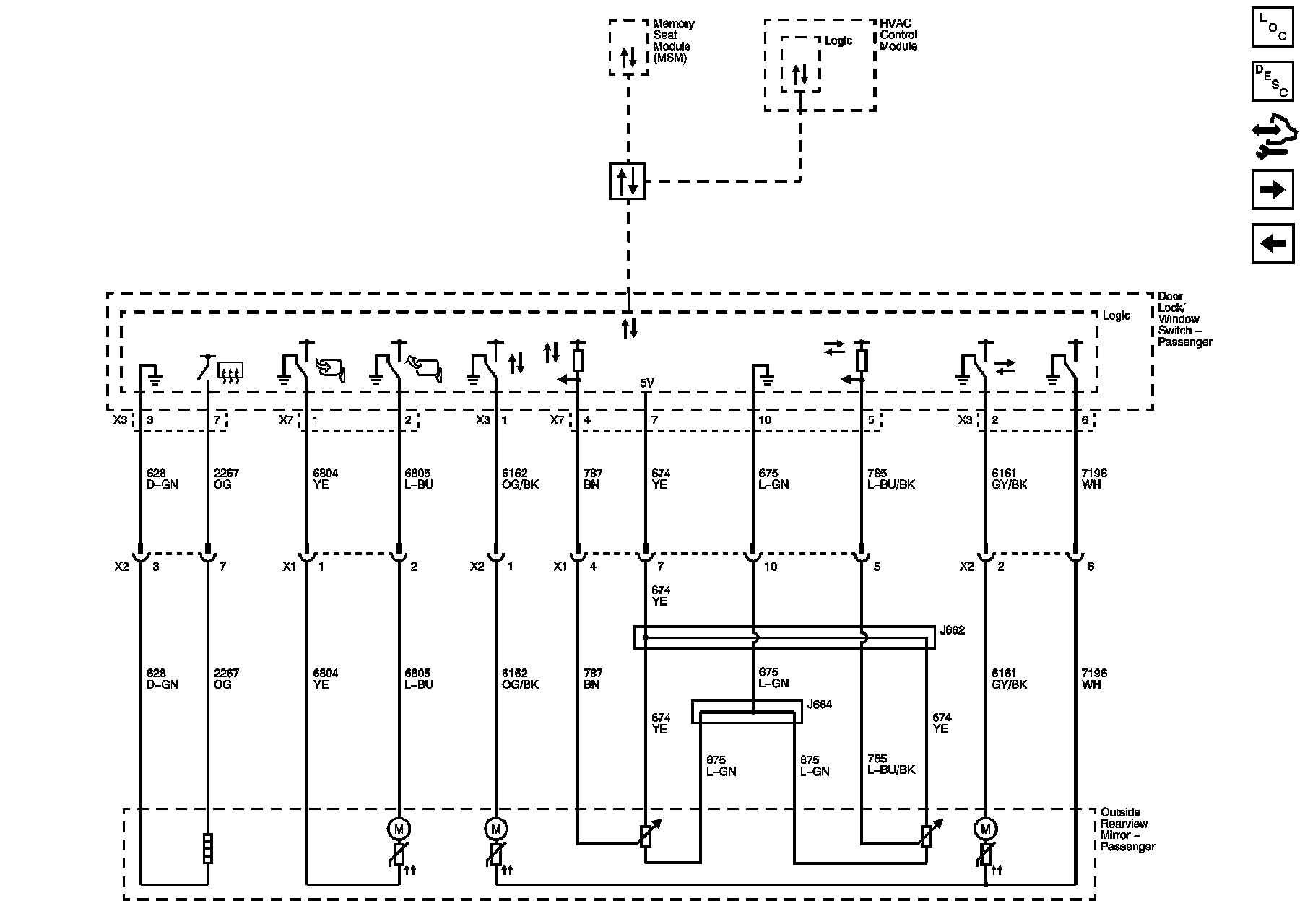

Passenger (DNP)
W49 with DS3
