Liftgate Schematics




Liftgate Schematics

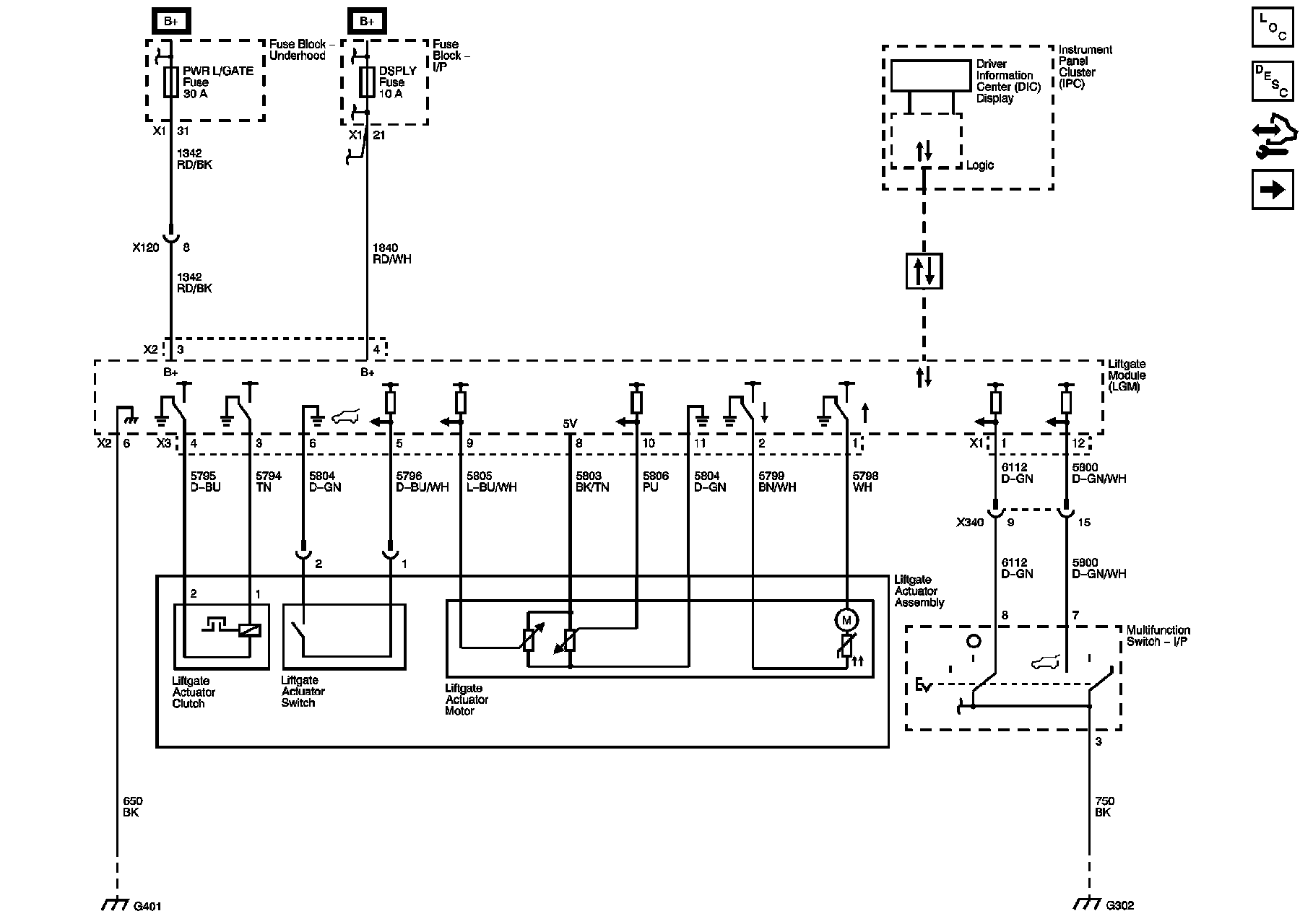

Module Power, Ground, Serial Data, Instrument Panel Switch, and Actuator (TB5)

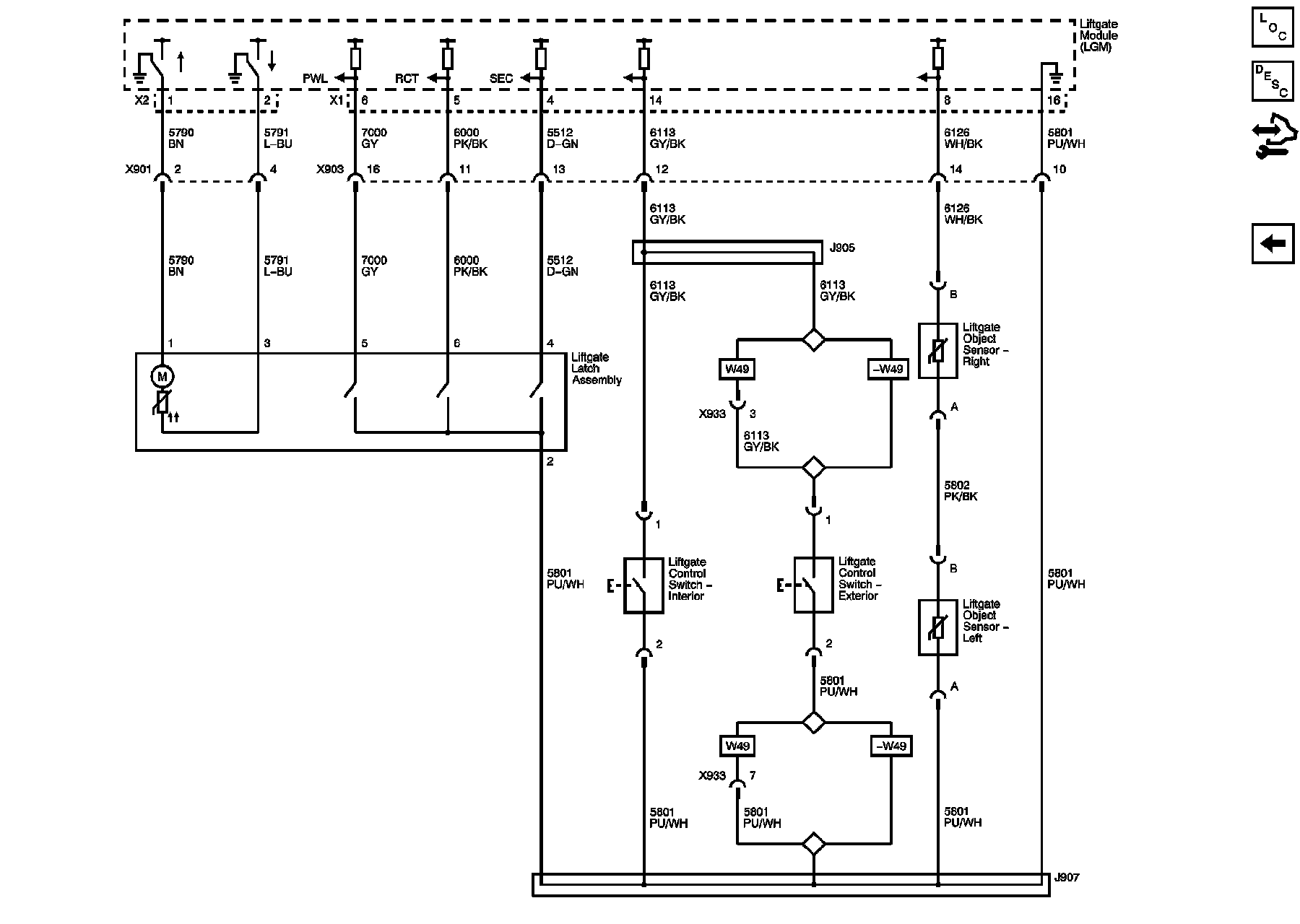

Latch, Object Sensors, and Switches (TB5)
