Door Lock/Indicator Schematics




Door Lock/Indicator Schematics

Switches

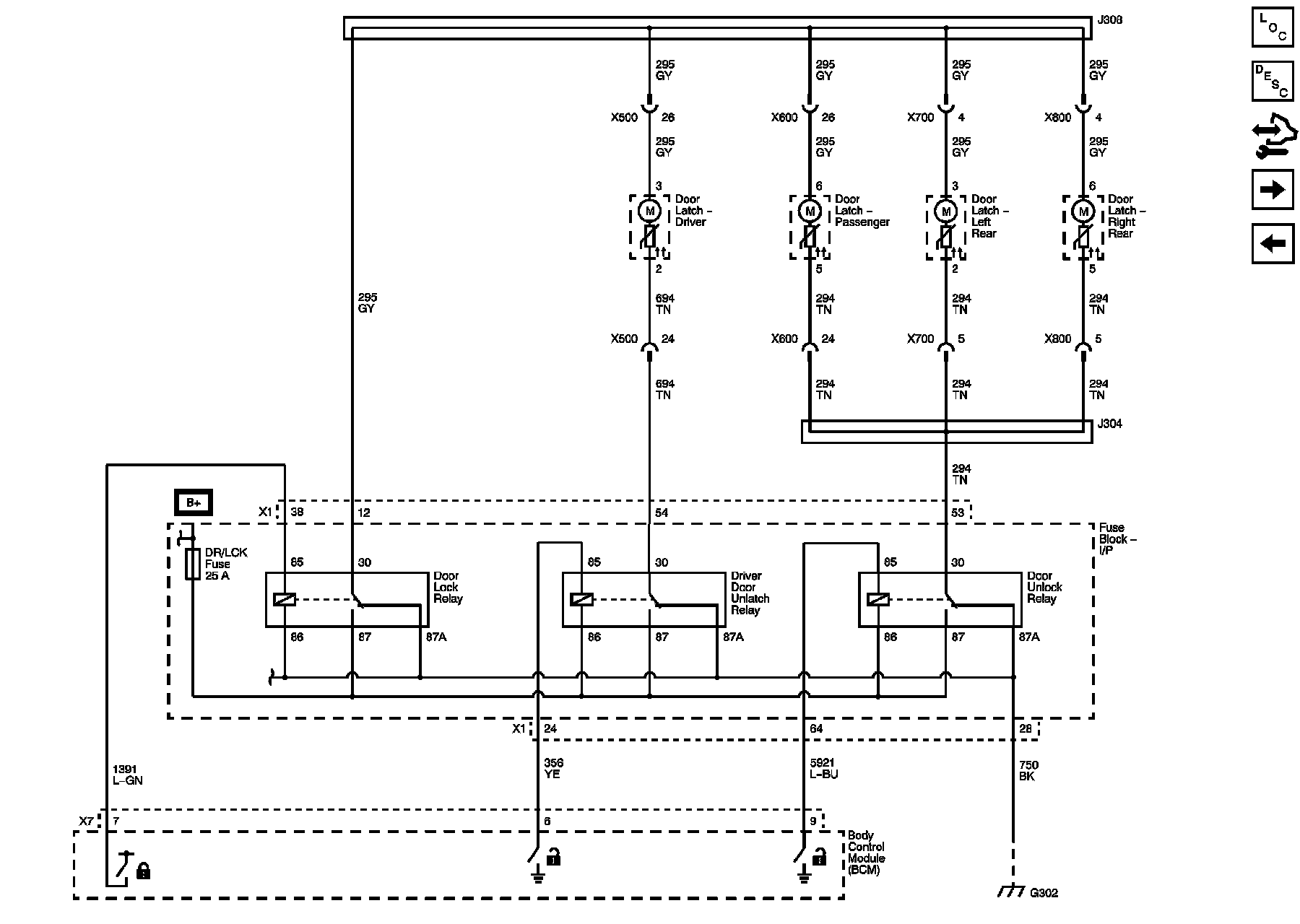

Actuators

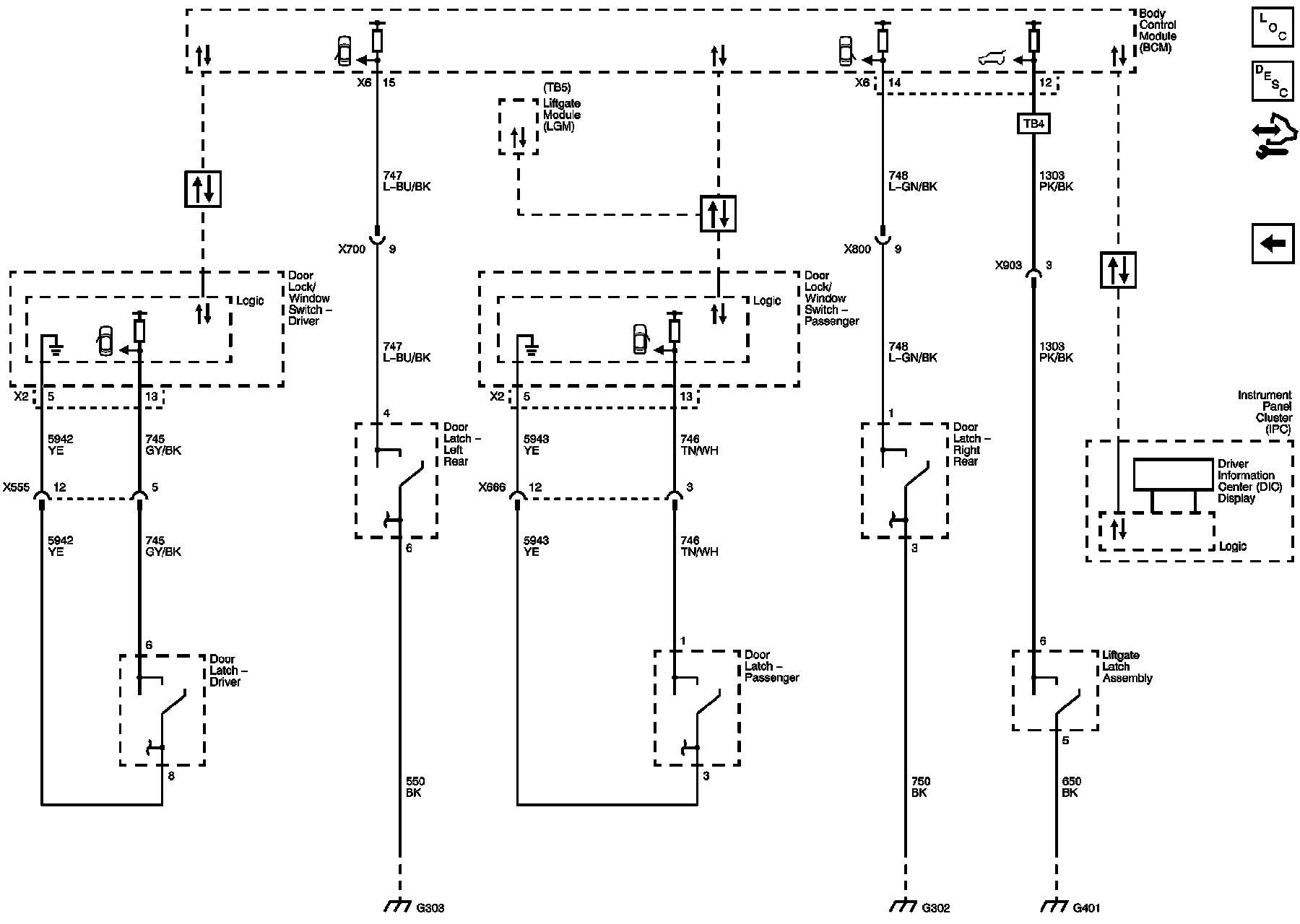

Door Ajar Indicators






Front Doors






Rear Doors






Door Ajar Indicators
