Interior Lights Dimming Schematics

Interior Lights Dimming Schematics

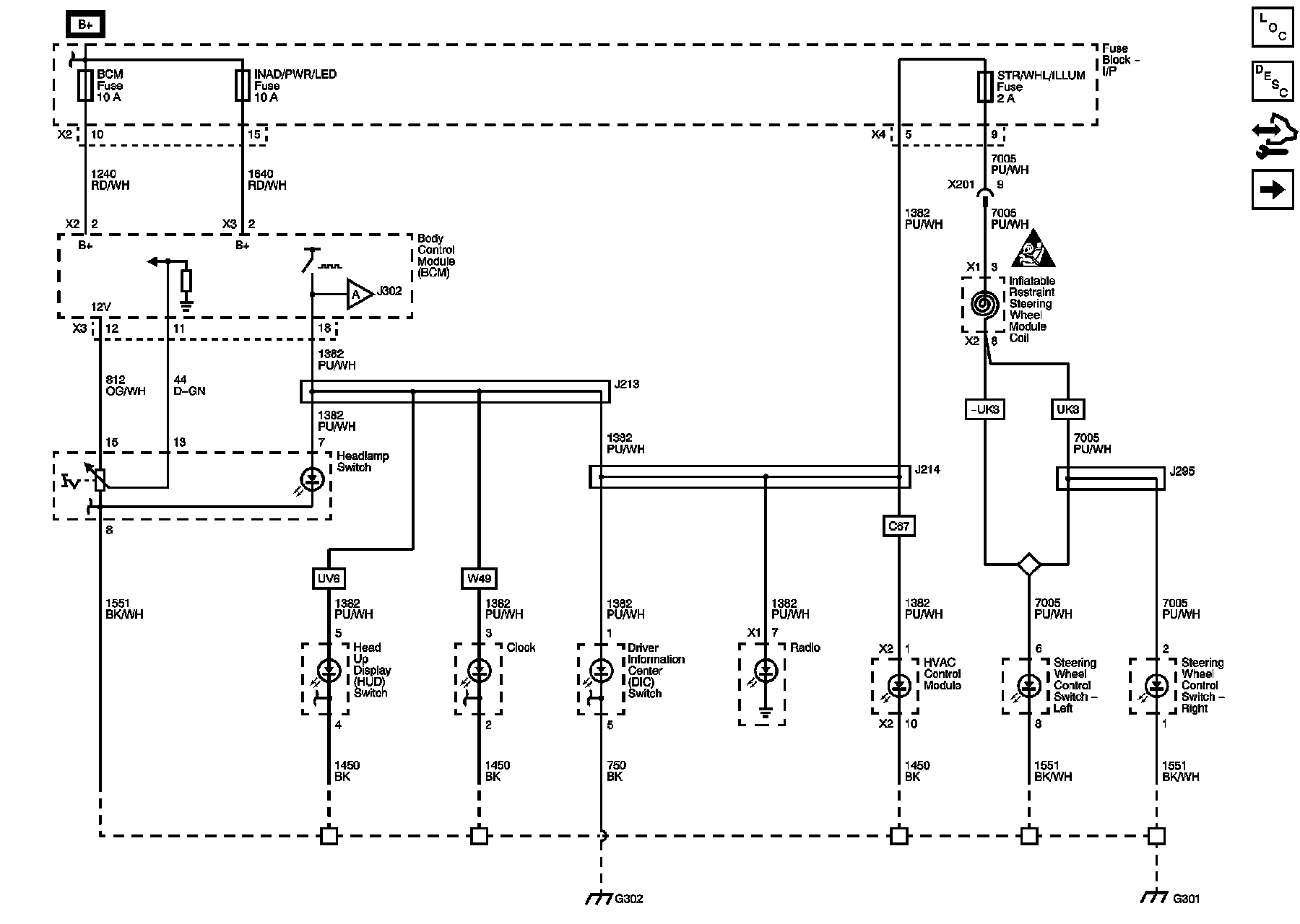

LED Dimming (1 of 2)

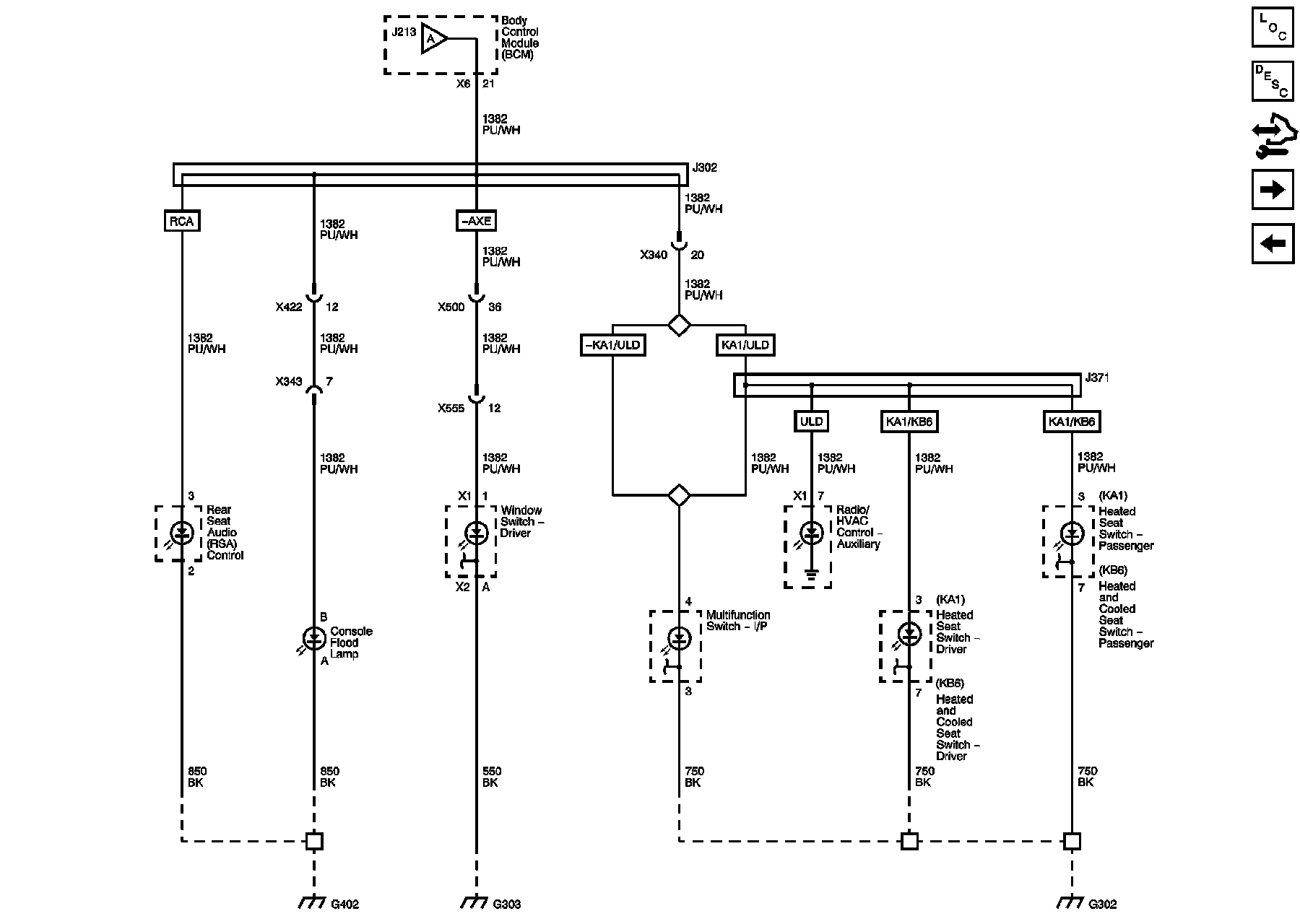

LED Dimming (2 of 2)

Lamp Dimming (1 of 2)

Lamp Dimming (2 of 2)
